Green circuit board with dual RJ45 ports and full-height metal bracket

Value Brand

Value Brand 10Gb PCIe Network Card Intel X540-BT2 Dual RJ45 X8

SKU CH-CR0T-36PKK

Dual-port 10 GbE RJ45 adapter using an Intel X540-BT2 controller on a PCIe 2.1 x8 interface with low-profile and full-height brackets included

  • TypePCI Express to Ethernet Port Card
  • Dual RJ45 ports deliver 10 Gbps throughput up to 100 metres on Cat6a
  • Intel X540-BT2 controller provides low-latency 10Gbase-T connectivity for servers
  • PCI Express 2.1 x8 lane fits x8 and x16 slots for broad compatibility
  • Supports Windows Server 2008 through 2019, Linux, VMware ESXi 6 and 7
  • Includes low-profile and full-height brackets for standard and slim chassis

10Gb PCIe X8 Network Adapter

This add-on card uses the Intel X540-BT2 controller to provide two RJ45 ports that operate at 100 Mbps, 1 Gbps or 10 Gbps over twisted-pair copper. It fits a PCI Express 2.1 x8 slot and is also compatible with x16 slots. The board supports IEEE 802.3az Energy Efficient Ethernet and standard VLAN tagging. It is intended for servers or workstations that need a cost-effective 10 GbE uplink.

Suits Windows Server, Linux and VMware hosts

The driver stack covers Windows 7 through Server 2019, major Linux distributions including RHEL, CentOS, Ubuntu and Debian, plus VMware ESXi 6 and 7. It also supports FreeBSD and SLES. Buyers who need Fibre Channel, InfiniBand or SFP+ optical interfaces will not be served by this copper-only design. Systems limited to PCIe x1 or x4 electrical width cannot use the full x8 bandwidth.

Dual RJ45 10GBASE-T ports

Each port negotiates 10GBASE-T up to 100 m on Category 6A cabling or 55 m on Category 6. The controller implements TCP/IP checksum offload, VMDq and SR-IOV for virtualised workloads. Jumbo frames, iSCSI boot and PXE are supported. This copper 10 GbE connectivity is the single specification that determines whether the card matches the network infrastructure.

Highlights

  • Dual RJ45 ports deliver 10 Gbps throughput up to 100 metres on Cat6a
  • Intel X540-BT2 controller provides low-latency 10Gbase-T connectivity for servers
  • PCI Express 2.1 x8 lane fits x8 and x16 slots for broad compatibility
  • Supports Windows Server 2008 through 2019, Linux, VMware ESXi 6 and 7
  • Includes low-profile and full-height brackets for standard and slim chassis

Specifications

TypePCI Express to Ethernet Port Card

Questions about this item

Does the card ship with both mounting brackets and a driver disc, or do I need to buy them separately?

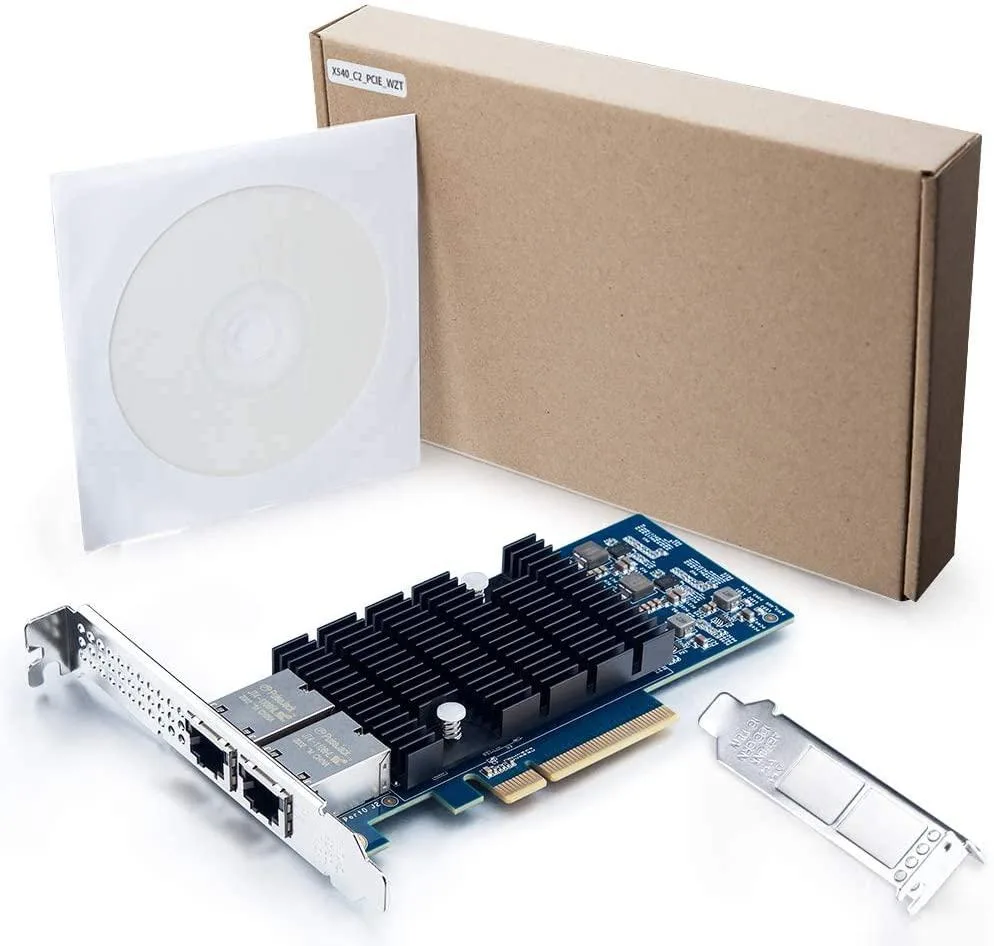

The package includes both a low-profile bracket and a full-height bracket plus a driver CD; no extra accessories are required for installation.

Which bracket should I choose for my chassis?

Use the full-height bracket for standard server or desktop cases and the low-profile bracket for slim or 1U systems; both are supplied in the box.

What cable length does the 10 Gbps rating support over Cat 6a?

At 10 Gbps the dual RJ45 ports reach 100 m (328 ft) on Category 6a cabling and 55 m (180 ft) on Category 6.
