Value Brand 10F333 Swing Check Valve 2 in 5.5 in

Zoro Select 10F333 Swing Check Valve

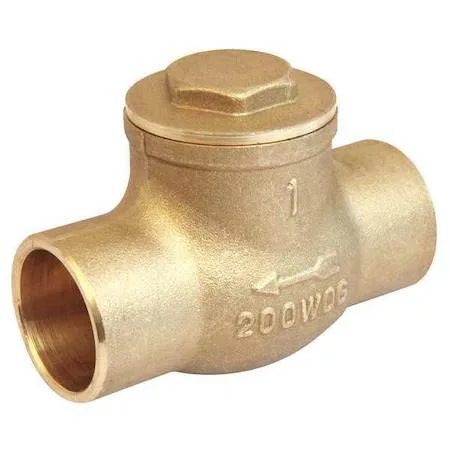

The Zoro Select 10F333 is a 2 inch brass swing check valve designed for residential and light commercial plumbing systems. It prevents backflow in water lines using an inline swing mechanism that opens with flow and closes when flow stops. Suitable for installers who need a reliable sweat-to-sweat connection in copper piping. Not for applications requiring a higher cracking pressure than 1.000 psi or a flow rate above 120 gpm.

Pressure and temperature operating envelope

The valve handles a maximum water pressure of 200 psi and a maximum steam pressure of 125 psi WSP. It operates between -20 Degrees F and 180 Degrees F, making it viable for hot water and low pressure steam lines. The cracking pressure range sits between .750 and 1.000 psi, so very low head systems may not open the disc fully. Not for systems exceeding these pressure or temperature limits.

Sweat installation notes and common issues

The sweat-by-sweat ends require standard copper soldering technique with flux and lead-free solder; the brass body conducts heat quickly so the joint must be cleaned and heated evenly. Horizontal or vertical mounting is permitted but the hinge pin must sit level for the swing disc to seat correctly. Debris in the line can prevent a tight seal and cause chatter. Not for threaded or press-fit pipe systems without adapters.
