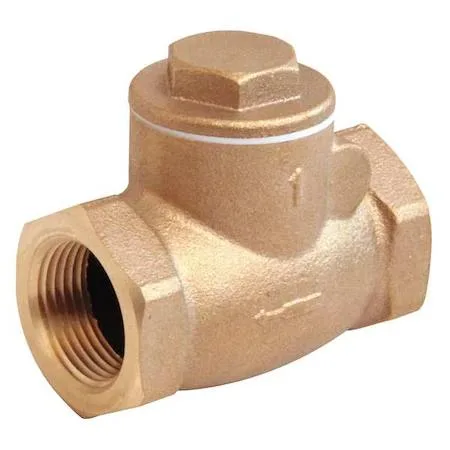

Bronze inline swing check valve with FNPT connections, 2.2 in long

Value Brand

Value Brand 10F290 Swing Check Valve 1/2 in

SKU CH-PSMN-D12XM

A 1/2 in bronze swing check valve with FNPT connections rated for 200 psi water and 125 psi steam

  • Size1/2"
  • TypeOther
  • Swing check design allows flow in one direction only
  • Bronze body resists corrosion for long service life
  • Operates from -20 °F to 406 °F for wide temperature range
  • Handles up to 200 psi water and 125 psi steam pressure
  • 1/2 in FNPT connections fit standard piping easily

What This Valve Does

The Value Brand 10F290 is a bronze inline swing check valve sized for 1/2 inch FNPT connections. It allows water or steam to flow in one direction while automatically preventing reverse flow in residential and light-commercial plumbing systems.

Pressure Limits That Define Fit

The valve handles up to 200 psi water pressure and 125 psi steam pressure with a cracking pressure between .750 and 1.000 psi. These ratings determine whether the part matches the system pressure you are working with.

Temperature Range and Flow Profile

Operating range spans -20 to 406 degrees Fahrenheit with a 10 gpm full-flow capacity. Bronze body and seat materials handle thermal cycling without external power, so noise and power draw are not factors in normal service.

Highlights

  • Swing check design allows flow in one direction only
  • Bronze body resists corrosion for long service life
  • Operates from -20 °F to 406 °F for wide temperature range
  • Handles up to 200 psi water and 125 psi steam pressure
  • 1/2 in FNPT connections fit standard piping easily

Specifications

BrandVALUE BRAND
Size1/2"
TypeOther

Questions about this item

How much water can actually pass through the 10 gpm rating once the valve is installed?

The valve is rated for a full flow of 10 gallons per minute with no restriction when fully open.

What does the FNPT x FNPT connection type mean for the pipe threads I need?

It has female National Pipe Taper threads on both ends, so you need 1/2 inch male NPT pipe nipples to install it.

Will the 2.2 inch overall length fit between my existing 1/2 inch pipe fittings?

The body measures 2.2 inches end to end, so measure the gap between your pipe faces to confirm clearance.
