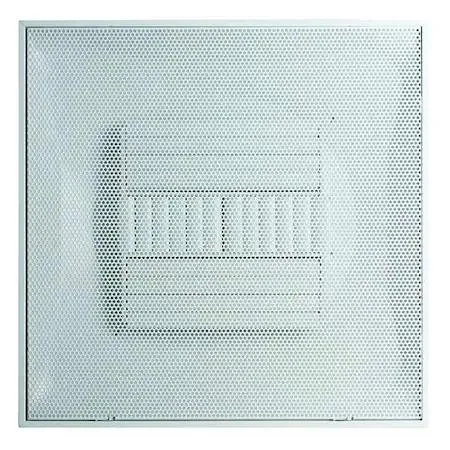

White square perforated steel ceiling diffuser with enamel finish

Value Brand

Value Brand 10 in Square Perforated Ceiling Tile Diffuser White

SKU CH-2QMC-28606

A 10-inch square perforated diffuser delivers 360-degree air diffusion in white enamel steel for T-bar suspended ceilings

  • ColorWhite
  • 360-degree air diffusion for even room coverage
  • 10-inch duct connection fits standard HVAC runs
  • Steel construction with enamel finish resists corrosion
  • Square perforated face blends into drop-ceiling grids
  • 23 3/4-inch width matches common tile dimensions

Square 10 in Perforated Diffuser

This steel ceiling-tile diffuser fits standard T-bar suspended drop ceilings and delivers a 360-degree air diffusion pattern. The white enamel finish matches typical office and retail grid systems. It is intended for commercial HVAC installations that require even, omnidirectional airflow from a single lay-in panel.

Verify Ceiling Grid And Duct Size

Confirm the suspended ceiling uses a standard T-bar grid with 23 3/4 in module spacing before ordering. The diffuser neck is sized for a 10 in round duct connection and cannot be adjusted after installation. Ensure the plenum depth accommodates the 5 7/16 in overall height and that no damper or volume control is required, as none is included.

No Accessories Or Controls Included

The unit ships as a bare diffuser panel without mounting hardware, insulation blanket or adjustable dampers. Installers must supply their own T-bar clips, duct collars and sealing materials. Because the face is fixed and non-adjustable, airflow balancing must be handled upstream at the branch take-off or central air handler.

Highlights

  • 360-degree air diffusion for even room coverage
  • 10-inch duct connection fits standard HVAC runs
  • Steel construction with enamel finish resists corrosion
  • Square perforated face blends into drop-ceiling grids
  • 23 3/4-inch width matches common tile dimensions

Specifications

BrandZORO SELECT
ColorWhite

Questions about this item

What is included with the 10 in square perforated ceiling tile diffuser and what must be purchased separately?

The diffuser itself is the only item supplied; mounting hardware, ductwork, insulation and any T-bar grid components are not included and must be sourced separately.

How do I choose between the available versions of this 10 in square perforated diffuser?

Only one version is offered — a white steel unit with enamel finish, 360-degree air diffusion and fixed non-adjustable blades for standard T-bar suspended ceilings.

What does the 360-degree diffusion pattern mean once the 10 in diffuser is installed in a real ceiling?

Air is distributed evenly in all horizontal directions from the perforated face, providing uniform room coverage without directional adjustment.
