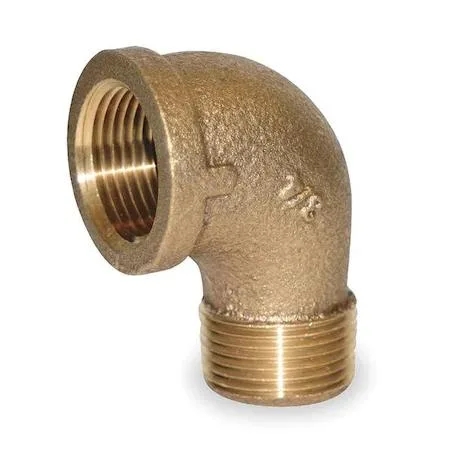

Value Brand 1" MNPT x FNPT Red Brass 90° Street Elbow bathware
Red brass 90° street elbow with 1" MNPT x FNPT threads, rated 125 psi from -20 to 400°F
- TypeOther
- 90° street elbow directs flow in tight bath installations
- Red brass construction resists corrosion for durable plumbing connections
- 125 psi rating handles standard residential water pressure reliably
- Service temperature range from -20 °F to 400 °F suits hot and cold lines
- Meets ASTM B584, ASME B16.15 and ANSI B1.20.1 standards
Fitting Type and Application
This is a 1 inch red brass street elbow with a 90 degree bend. It connects male NPT threads on one end to female NPT threads on the other. It suits plumbing installations that require a directional change in a piping system.
Build Quality and Connection
The fitting is manufactured from red brass to ASTM B584 and meets ASME B16.15 and ANSI B1.20.1 standards. Its Class 125 rating and MNPT x FNPT connection allow direct assembly onto threaded pipe without extra couplings.
Pressure and Temperature Limits
The elbow handles a maximum pressure of 125 psi across a temperature range of -20 to 400 degrees F. These limits define safe operating boundaries for water, steam or compatible fluid lines in residential or light commercial service.
Highlights
- 90° street elbow directs flow in tight bath installations
- Red brass construction resists corrosion for durable plumbing connections
- 125 psi rating handles standard residential water pressure reliably
- Service temperature range from -20 °F to 400 °F suits hot and cold lines
- Meets ASTM B584, ASME B16.15 and ANSI B1.20.1 standards
Specifications
| Brand | ZORO SELECT |
|---|---|
| Type | Other |
Questions about this item
What pressure does the 125 psi Class 125 rating actually limit in a 1" MNPT x FNPT red brass street elbow?
The Class 125 rating caps the fitting at 125 psi maximum pressure, which is the design limit for this 1-inch red brass street elbow in standard plumbing service.
What pipe thread dimensions must match for this 1-inch MNPT x FNPT street elbow to seal properly?
The male and female ends both follow ANSI B1.20.1 taper pipe threads for 1-inch nominal pipe size, so mating parts must use the same 1-inch NPT standard.
How do you install this 90-degree street elbow without cracking the red brass, and what torque step is commonly missed?
Apply PTFE tape or pipe dope on the male threads only, hand-tighten, then wrench-tighten one to two turns; over-torquing the red brass body is the common mistake that causes stress fractures.
