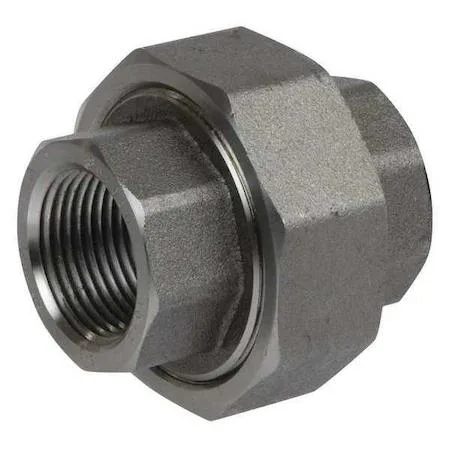

One-inch stainless steel threaded union with female NPT ends

Value Brand

Value Brand 1 in FNPT 316 Stainless Steel Threaded Union Class 3000

SKU CH-5F1P-92XXB

Connects two pipe ends without rotation using corrosion-resistant 316 stainless steel rated for 2900 psi at 100°F

  • Corrosion-resistant 316 stainless steel withstands harsh environments
  • Class 3000 rating handles up to 2900 psi at 100°F
  • Threaded union connects pipes without rotation for quick maintenance
  • Meets ASTM A182 and ANSI/ASME B1.20.1 standards
  • Female NPT threads on both sides fit 1-inch pipe

Application & User

This 1-inch FNPT threaded union joins two pipe ends without rotating either length, making it suitable for maintenance points in process piping. It is built for installers who need a corrosion-resistant 316 stainless steel joint rated to Class 3000 service conditions.

Interface Limits

The connection uses ANSI/ASME B1.20.1 taper threads at 11 1/2 threads per inch on both sides, so sealing relies on proper thread engagement and compatible sealant. Pressure capability is 2900 psi at 100°F per the Class 3000 rating under MSS SP-83.

Compatibility Check

Verify that the mating pipes are 1-inch NPT male threads and that the system design pressure and temperature stay within the 2900 psi at 100°F envelope. Confirm the 316 stainless material is acceptable for the fluid media and that ASTM A182 conformance meets any project specifications.

Highlights

  • Corrosion-resistant 316 stainless steel withstands harsh environments
  • Class 3000 rating handles up to 2900 psi at 100°F
  • Threaded union connects pipes without rotation for quick maintenance
  • Meets ASTM A182 and ANSI/ASME B1.20.1 standards
  • Female NPT threads on both sides fit 1-inch pipe

Specifications

BrandZORO SELECT

Questions about this item

Should I choose the 1 in FNPT 316 stainless steel union or a different size?

Select the 1 in FNPT size when your pipe has a 1-inch nominal bore and 11 1/2 threads per inch; other sizes will not match those threads.

What does the 2900 psi @ 100°F rating mean when the union is installed?

It is the maximum working pressure at 100 °F; at higher temperatures the allowable pressure decreases.

How do the ANSI/ASME B1.20.1 threads and Class 3000 rating work together?

The threads follow ANSI/ASME B1.20.1 for NPT sealing, while Class 3000 defines the pressure boundary for 316 stainless steel per ASTM A182 and MSS SP-83.
