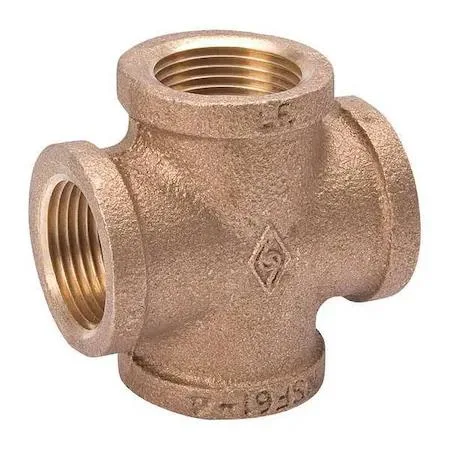

Brass cross coupling with four female NPT ports

Value Brand

Value Brand 1 in Female NPT Cross Brass Coupling

SKU CH-BJ8A-RN3A0

A brass cross coupling joins four 1-inch female NPT pipes and is rated to 125 psi from -20 to 400 °F

  • Four-way female NPT connections simplify pipe layouts
  • Brass body meets ASTM B62 and ASME B 16.15 standards
  • Rated for 125 psi working pressure
  • Operating range from -20 to 400 degrees F
  • NSF61 and AB1953 compliant for potable water use

1 in Female NPT Cross Brass Coupling

This brass cross fitting joins four pipes at a single junction. It suits plumbers and maintenance crews building or repairing water, oil or gas distribution systems where a four-way branch is required. The component installs with standard NPT threading tools and fits directly into existing 1 in pipework.

125 psi maximum pressure rating

The fitting withstands up to 125 psi, which determines whether it matches the system design pressure. Exceeding this limit risks leakage or failure, so installers must verify the operating pressure before specifying the part. The rating is set by the ASTM B62 and ASME B 16.15 standards referenced in the documentation.

Four 1 in FNPT ports with -20 to 400 °F range

Each of the four ports accepts 1 in female NPT threads, giving equal flow capacity in every direction. The brass body handles continuous temperatures from -20 °F to 400 °F, covering most hydronic heating and chilled water loops. Systems requiring higher pressure, larger bore or welded connections will need a different fitting style.

Highlights

  • Four-way female NPT connections simplify pipe layouts
  • Brass body meets ASTM B62 and ASME B 16.15 standards
  • Rated for 125 psi working pressure
  • Operating range from -20 to 400 degrees F
  • NSF61 and AB1953 compliant for potable water use

Specifications

BrandZORO SELECT

Questions about this item

What does the 125 psi pressure rating mean once the cross is installed in a plumbing system?

The 125 psi rating is the maximum working pressure the brass cross can safely handle in service. System pressure must stay at or below this figure to avoid leaks or fitting failure.

How does the FNPT connection standard affect what pipe or adapter can be used with this cross?

Each of the four ports uses a 1 inch Female NPT thread. Only male NPT fittings of the same nominal size will seal correctly; other thread forms or sizes will not engage properly.

What physical space and mounting method does the 1 inch brass cross require?

The cross has an outside diameter of 1 inch and four FNPT ports arranged in a cross pattern. It threads directly onto male NPT pipe ends; no separate brackets or flanges are needed.
