Value Brand 1/4" Y Strainer Bronze FNPT x FNPT 400 psi
Bronze Y-strainer with 304 stainless steel screen filters debris in 1/4" FNPT lines up to 400 psi
- Size1/4"
- TypeOther
- Filters debris with 304 stainless steel 0.0331 in mesh
- Bronze housing rated for 400 psi at 210 °F
- Female NPT ports on both ends for easy inline install
- Compact 2 in length fits tight plumbing runs
- Class 300 construction handles high-pressure residential systems

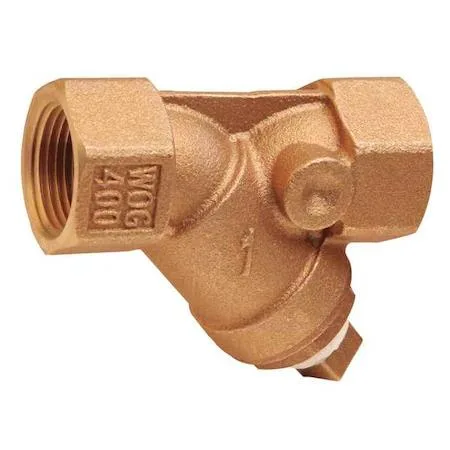

1/4" Bronze Y Strainer for fluid filtration
This Zoro Select Y strainer filters debris in piping systems using a 304 stainless steel screen with .0331 in mesh openings. The bronze housing is rated for 400 psi at 100 deg F and carries a Class 300 designation. Female NPT threads on both ports accept 1/4 in pipe connections. It suits maintenance technicians and facility engineers who need inline particle removal.
Verify thread type pressure rating
Confirm the existing line uses female NPT threads matching the 1/4 in port size before ordering. The 400 psi maximum pressure at 100 deg F must exceed the system operating pressure. Ensure the .0331 in mesh captures the target particle size without creating excessive flow restriction. The blow off port also uses 1/4 in NPT for drain valve attachment.
Bronze housing handles 400 psi
The bronze body and 304 stainless screen resist corrosion in typical water and steam service up to 210 deg F. Routine cleaning through the blow off port removes accumulated debris without disconnecting the strainer. No moving parts generate noise or vibration during normal flow. The compact 2 in length and 1 3/4 in height fit tight piping runs while the Class 300 rating supports standard industrial pressure requirements.
Highlights
- Filters debris with 304 stainless steel 0.0331 in mesh
- Bronze housing rated for 400 psi at 210 °F
- Female NPT ports on both ends for easy inline install
- Compact 2 in length fits tight plumbing runs
- Class 300 construction handles high-pressure residential systems
Specifications
| Brand | ZORO SELECT |
|---|---|
| Size | 1/4" |
| Type | Other |
Questions about this item
Does the strainer come with the 304 stainless-steel screen already installed, or do I need to buy the screen separately?
The 304 stainless-steel screen with 0.0331 in mesh is factory-fitted inside the bronze housing, so no separate screen purchase is required.
How do I decide between the 400 psi rating at 100 deg F and the Class 300 designation when selecting this strainer?
Class 300 is the flange-class reference, while 400 psi at 100 deg F is the actual maximum working pressure; choose based on the pressure your system will see at that temperature.
What does the 400 psi at 100 deg F rating mean once the strainer is threaded into my piping?
It means the bronze body and 304 stainless-steel screen can continuously handle up to 400 psi when the fluid temperature is 100 deg F, with female NPT connections on both ends.
