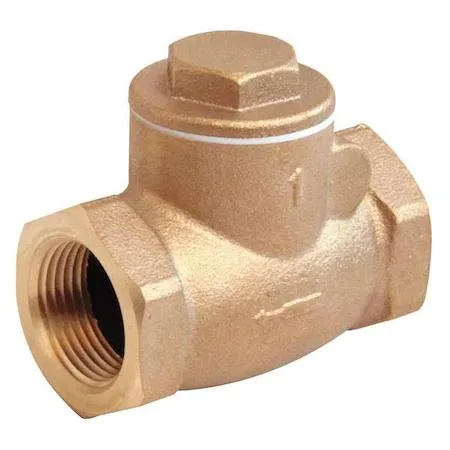

Small bronze swing check valve with threaded ends

Value Brand

Value Brand 1/4" Swing Check Valve Bronze PTFE 300 psi 4 gpm

SKU CH-HG7R-WW3EE

Bronze swing check valve with PTFE seal handles 300 psi water pressure and 4 gpm flow in horizontal or vertical mounting

  • Size1/4"
  • TypeOther
  • Bronze body resists corrosion in water systems
  • PTFE seal handles temperatures from -20 to 406 °F
  • 300 psi water rating supports high-pressure lines
  • 750 to 1.000 psi cracking pressure opens with minimal flow
  • 4 gpm full-flow capacity maintains efficient throughput

1/4" Bronze Swing Check Valve

The valve uses an inline swing mechanism with a bronze body and PTFE seat to provide full flow in a 1/4 inch FNPT connection. It is rated for 300 psi water pressure and 150 psi steam pressure with a cracking pressure between .750 and 1.000 psi.

Suits low-pressure water

Installers who require a larger pipe diameter, a different connection type such as solder or press-fit, or a cracking pressure outside the .750 to 1.000 psi range should select another valve. The bronze construction also makes it unsuitable for systems requiring lead-free materials.

Cracking pressure .750 to 1.000 psi

This narrow spring range determines whether the disc opens reliably at the system's minimum flow condition. If the application demands a higher or lower opening threshold, the valve will not function as intended.

Highlights

  • Bronze body resists corrosion in water systems
  • PTFE seal handles temperatures from -20 to 406 °F
  • 300 psi water rating supports high-pressure lines
  • 750 to 1.000 psi cracking pressure opens with minimal flow
  • 4 gpm full-flow capacity maintains efficient throughput

Specifications

BrandZORO SELECT
Size1/4"
TypeOther

Questions about this item

How much heat can the bronze body and PTFE seal handle in continuous service?

The valve is rated for a maximum temperature of 406 °F and a minimum of -20 °F, so the materials withstand sustained hot-water or steam lines within that range.

What pipe threads must my existing plumbing have to connect this valve?

It uses 1/4-inch FNPT female threads on both ends, so the mating pipe or fittings need matching 1/4-inch MNPT male threads.

Will the 0.750-to-1.000 psi cracking pressure let gravity-fed tanks open the valve reliably?

Yes, the low cracking pressure of 0.750 to 1.000 psi allows the swing disc to open under very light head pressure typical of gravity-fed systems.
