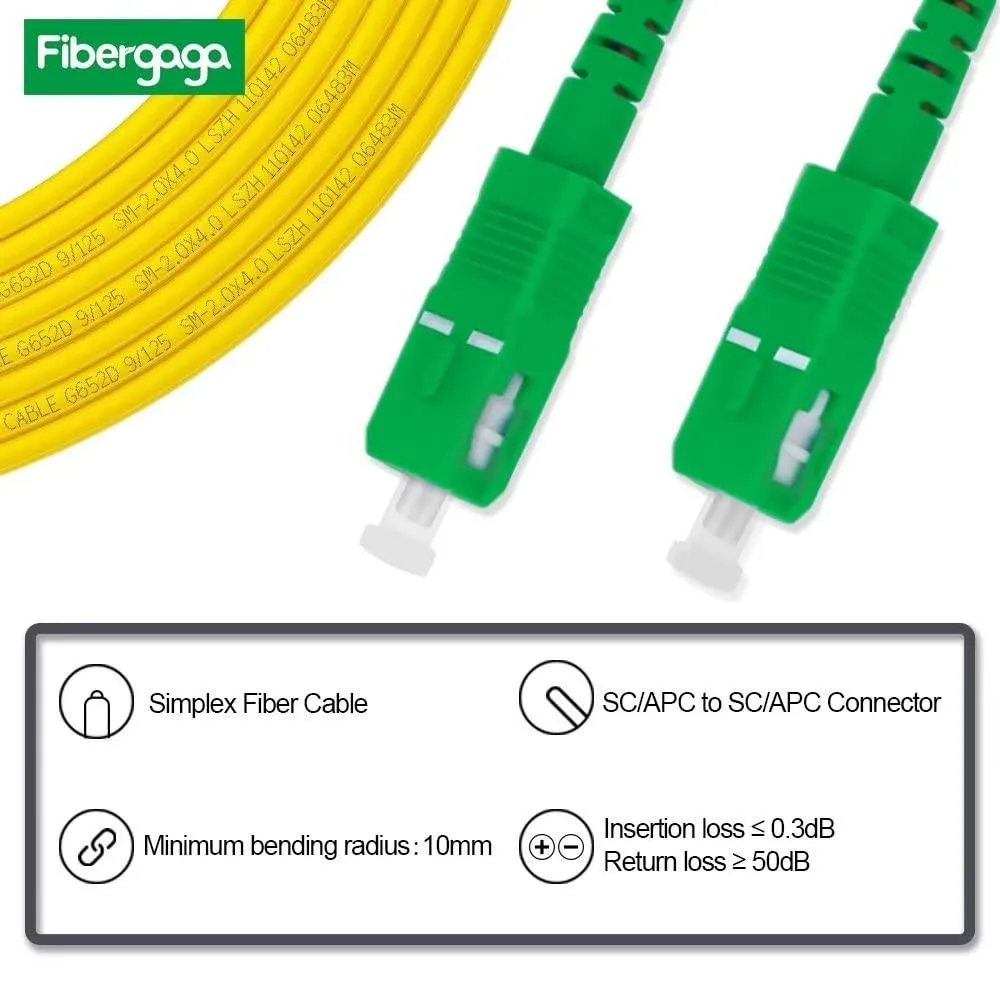

Yellow simplex fiber patch cable with SC/APC connectors on both ends, 2.0 mm LSZH jacket

V2 Technologies

V2 Technologies SC/APC to SC/APC Single Mode Fiber Patch Cable 2 in 1 accessory

SKU CH-PDG5-6ESPJ

Single-mode OS2 fiber patch cable with SC/APC connectors, 9/125 µm core, 2.0 mm LSZH jacket, supporting 1G to 100G Ethernet links

  • Ready for 1G to 100G networks with SC/APC connectors
  • Low-loss ceramic ferrules ensure reliable single-mode transmission
  • LSZH jacket meets UL, CUL, IEC and RoHS standards
  • Yellow 2.0 mm simplex cable rated for indoor durability
  • Available in lengths from 0.5 m to 100 m

Single-mode SC/APC patch cable

This SC/APC to SC/APC single-mode fiber patch cable uses a 9/125 µm core with a 2.0 mm yellow LSZH jacket. It supports 10GBASE-L at 1310 nm and 10GBASE-E at 1550 nm wavelengths. The ceramic connectors provide low signal loss for indoor networking. It is built for Gigabit Ethernet, fibre channel, LAN and data-centre links.

Verify connector and length needs

Confirm that your equipment uses SC/APC angled-polish connectors rather than SC/UPC flat-polish ends. Check that the required run fits within the available length options from 0.5 m up to 100 m (1.6 ft to 328 ft). Ensure the 2.0 mm simplex cable can be routed through your existing ducting or cable management.

LSZH jacket and ceramic ferrules

The low-smoke zero-halogen sheath meets UL, CUL, IEC and RoHS standards for safer indoor installation. Ceramic ferrules resist wear and maintain stable insertion loss over repeated mating cycles. The yellow jacket colour identifies single-mode fibre at a glance. No software or additional accessories are bundled with this cable.

Highlights

  • Ready for 1G to 100G networks with SC/APC connectors
  • Low-loss ceramic ferrules ensure reliable single-mode transmission
  • LSZH jacket meets UL, CUL, IEC and RoHS standards
  • Yellow 2.0 mm simplex cable rated for indoor durability
  • Available in lengths from 0.5 m to 100 m

Specifications

No published specifications for this item yet.

Questions about this item

Does the 2.0 mm yellow LSZH cable arrive terminated with SC/APC connectors on both ends, or must I buy connectors separately?

The patch cable is supplied with SC/APC connectors already fitted to both ends, so no separate connectors are required.

Which length option should I select for a 100 m run between buildings?

Choose the 100 m (328 ft) option; it matches the full spool length and supports 1G, 10G, 40G and 100G Ethernet over that distance.

What do the 1310 nm and 1550 nm wavelengths mean for my 10G link?

They indicate the cable is qualified for 10GBASE-L at 1310 nm and 10GBASE-E at 1550 nm, so a 10G single-mode transceiver at either wavelength will operate within spec.
