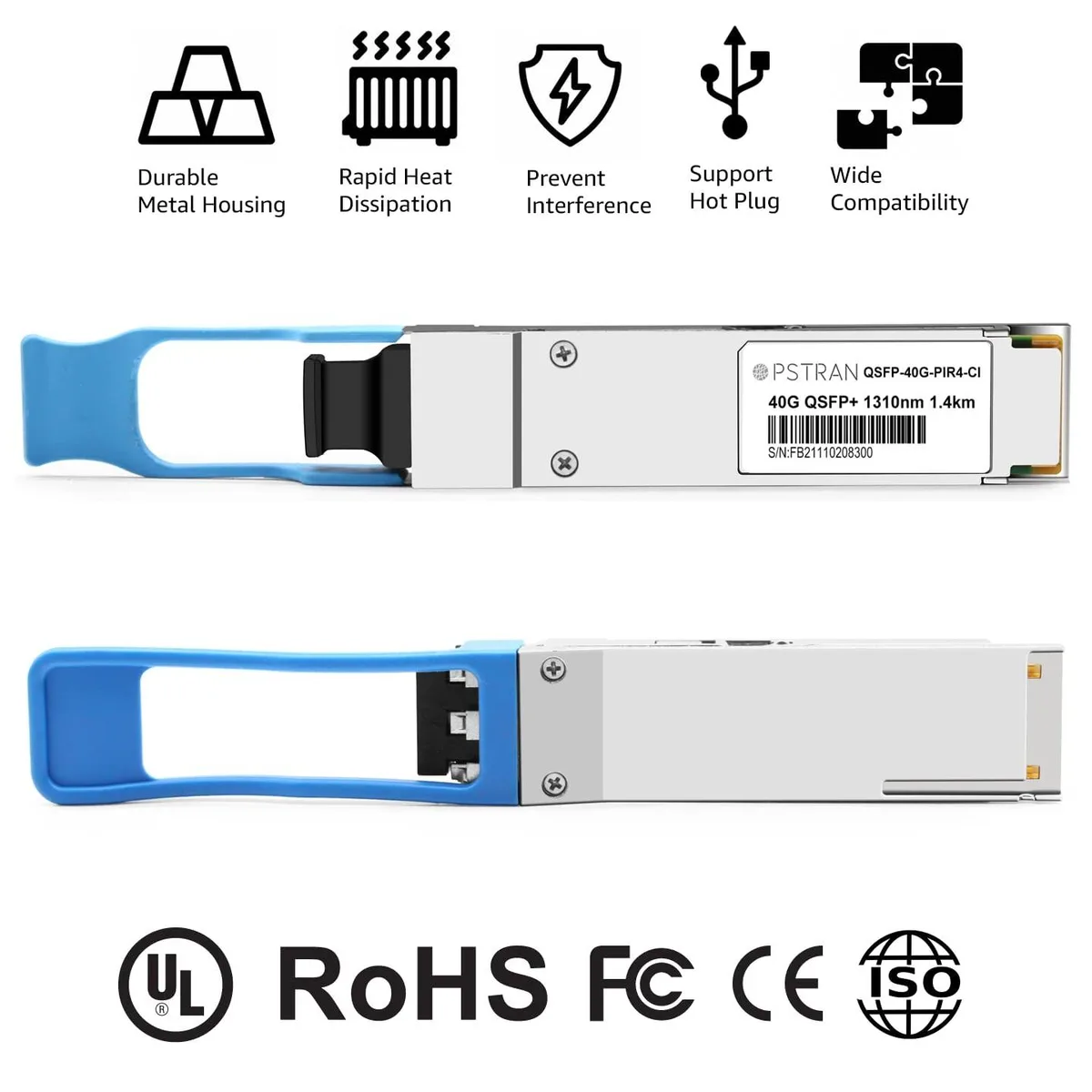

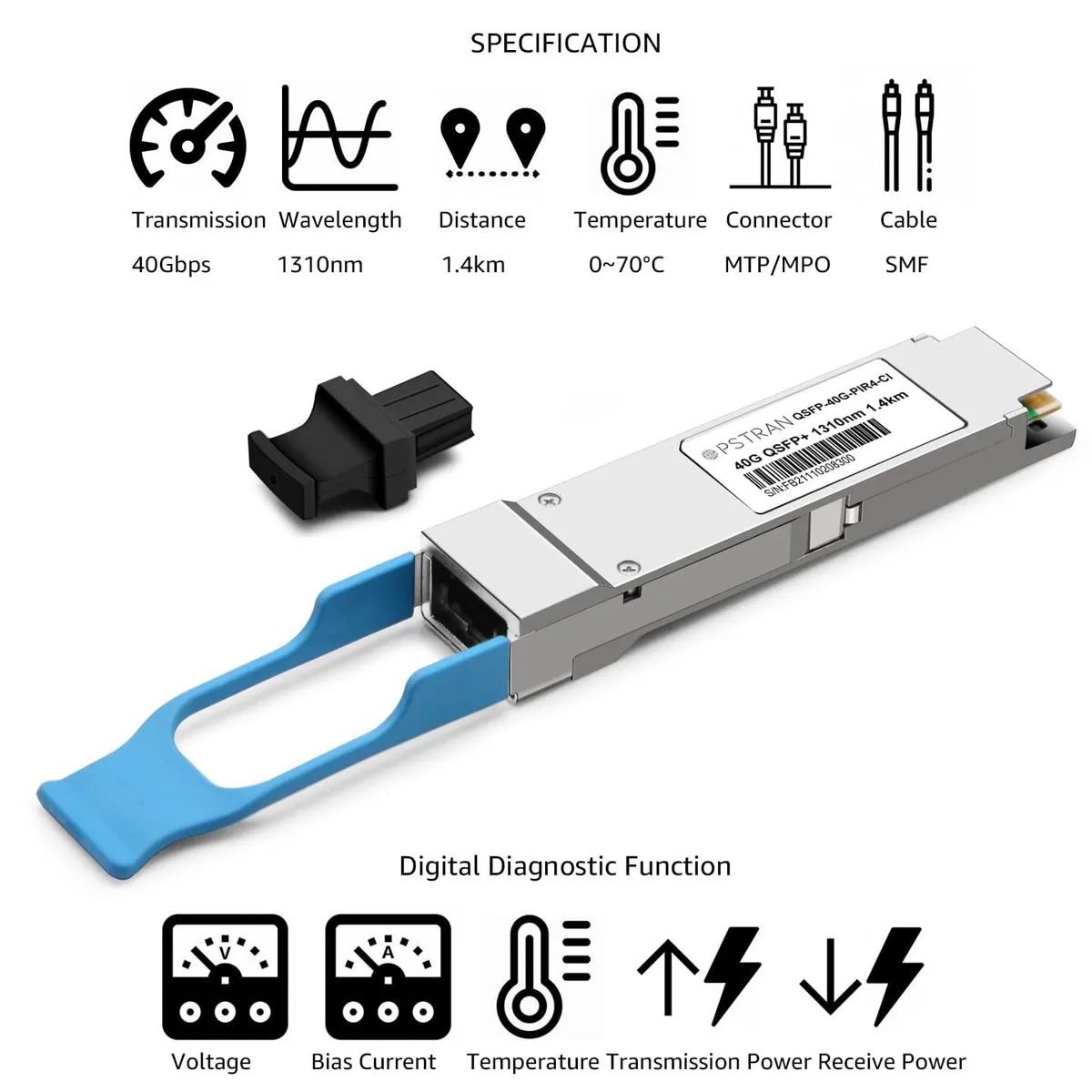

Rectangular QSFP+ transceiver module with MPO-12/APC port and metallic finish

V2 Technologies

V2 Technologies 40GBASE-PIR4 QSFP+ Optical Transceiver Module 2 in 1 accessory

SKU CH-ZB6K-7DPFY

A 40GBASE-PIR4 QSFP+ optical transceiver module operating at 1310 nm over 1.4 km single-mode fibre with 4 CWDM lanes at 11.2 Gbps per channel, 2.5 W max power, DDM.

  • Low power draw extends module life with 2.5W maximum consumption
  • Operates reliably from 0 to 70C commercial temperature range
  • Real-time digital optical monitoring enables strong diagnostic capabilities
  • 4 CWDM lanes deliver 11.2Gbps per channel for 40G to 4x10G breakout
  • Hot-pluggable QSFP+ form factor compliant with SFF-8436 and QSFP MSA standards

Network transceiver for 40G links

The V2 Technologies 40GBASE-PIR4 QSFP+ module provides a single 40G optical interface that splits into four 10G lanes. It suits network engineers extending switch uplinks or building breakout connections in data-centre racks.

Reach and connector decide fit

The transceiver operates at 1310nm over single-mode fibre with an MPO-12/APC connector and supports links up to 1.4km. If your patch panel uses a different connector or the run exceeds that distance, this module will not work.

Diagnostic monitoring aids operations

Built-in digital optical monitoring reports real-time power, temperature and voltage data to the host switch. No extra software or licences are bundled; the feature simply makes link troubleshooting faster for the operations team.

Highlights

  • Low power draw extends module life with 2.5W maximum consumption
  • Operates reliably from 0 to 70C commercial temperature range
  • Real-time digital optical monitoring enables strong diagnostic capabilities
  • 4 CWDM lanes deliver 11.2Gbps per channel for 40G to 4x10G breakout
  • Hot-pluggable QSFP+ form factor compliant with SFF-8436 and QSFP MSA standards

Specifications

No published specifications for this item yet.

Questions about this item

What does 40GBASE-PIR4 mean for throughput in a live switch?

The module delivers 40 Gbps total bandwidth using four CWDM lanes at 11.2 Gbps each, and supports 40G to 4x 10G breakout operation.

Which QSFP+ standards and connector does the module follow, and what distance does that limit?

It complies with SFF-8436, QSFP MSA and 40GBASE-LR4, uses an MPO-12/APC connector on single-mode fibre, and reaches 1.4 km at 1310 nm.

What power, temperature and physical slot does the transceiver need?

Maximum draw is 2.5 W, operating range is 0 to 70 °C (32 to 158 °F), and it fits any hot-pluggable QSFP+ cage.
