Black rectangular box with front-panel buttons and multiple HDMI ports on the rear

UTEK

UTEK 4x4 HDMI Matrix Switch 4K 60Hz 18Gbps HDR EDID 16 modes HDCP 2.2

SKU CH-46BG-QHB69

Routes four HDMI sources to four displays with independent switching, 4K 60 Hz, 18 Gbps bandwidth, HDR, HDCP 2.2 and 16 EDID modes

  • TypeHDMI
  • Connect four sources to four displays independently
  • True 4×4 matrix routes any input to any output
  • 4K 60 Hz HDR video at 18 Gbps bandwidth
  • HDCP 2.2 and deep-colour 8/10/12-bit support
  • 16 EDID modes auto-match each display for best picture

4x4 HDMI matrix for multi-display setups

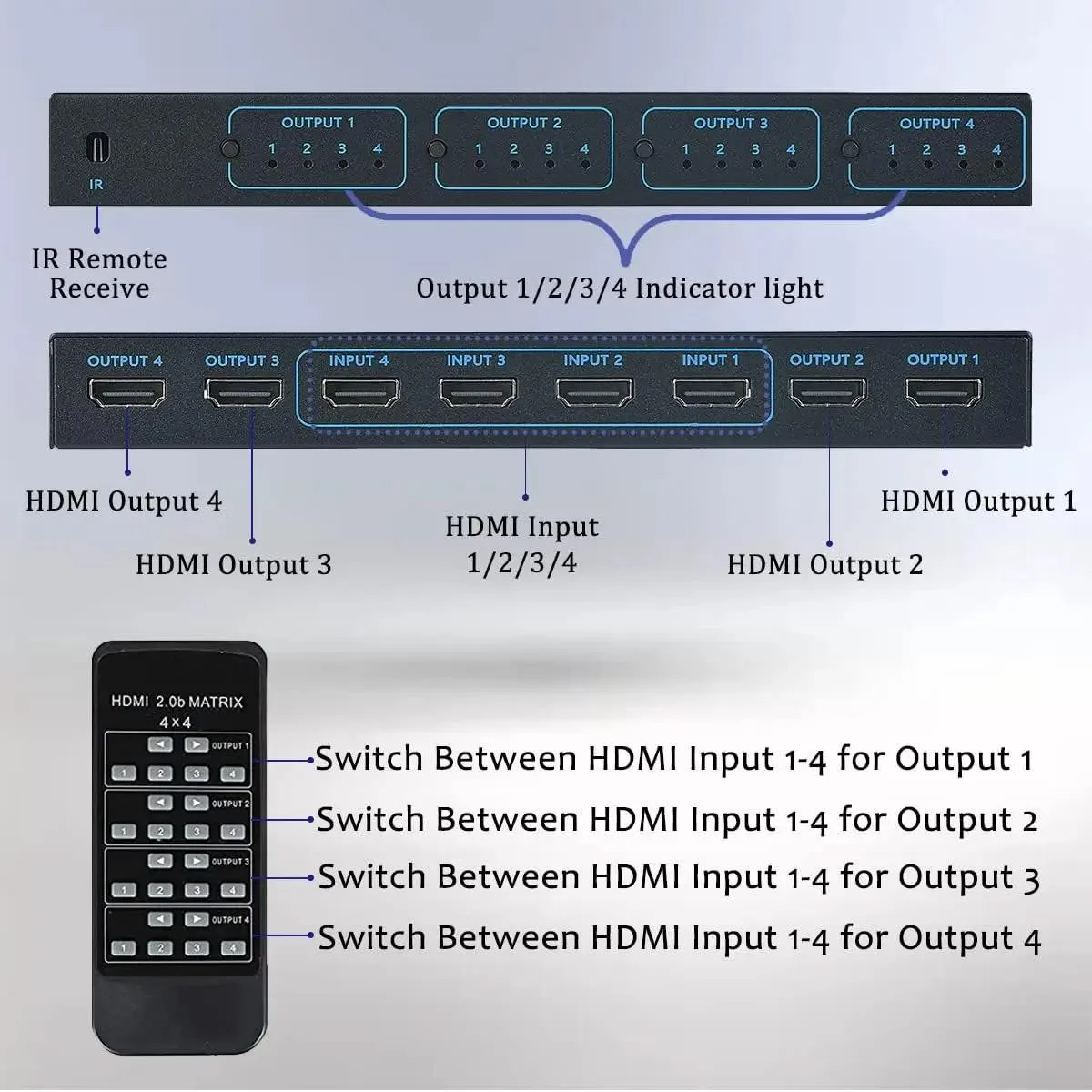

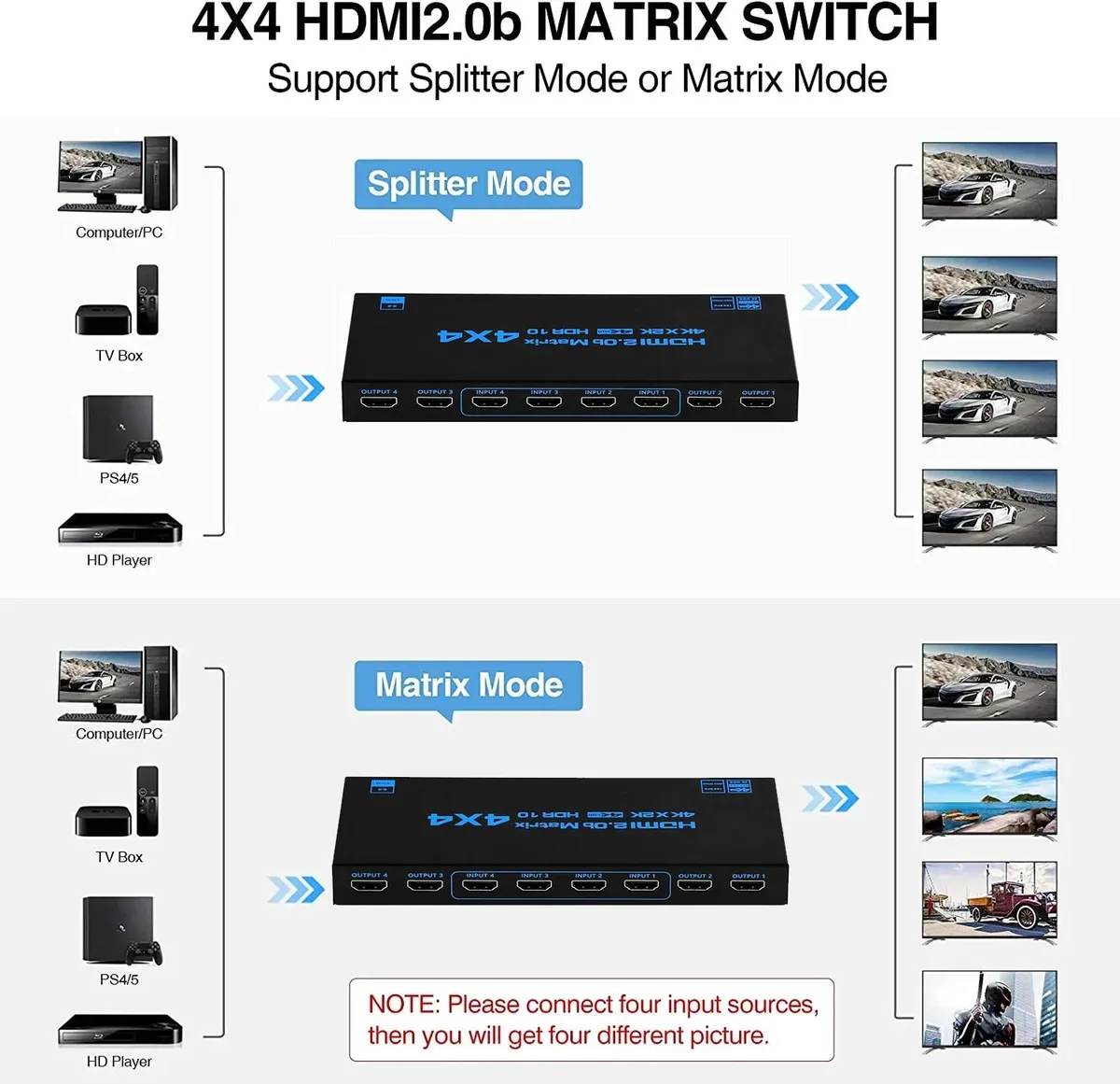

The UTEK 4x4 HDMI matrix switch connects four HDMI sources to four displays, letting each output show the same or a different picture. It is built for installers, streamers and multi-room AV systems that need flexible routing without re-cabling.

18 Gbps bandwidth with HDR and HDCP 2.2

The unit handles 4K at 60 Hz, YUV 4:4:4 and deep colour up to 12 bit at a maximum data rate of 18 Gbps and 600 MHz bandwidth. HDCP 2.2 compliance keeps protected content flowing, while the HDMI 2.0b interface maintains signal integrity across all four paths.

Sixteen EDID modes replace fixed-splitter limits

Sixteen selectable EDID modes let the switch negotiate optimal timing with each display, avoiding handshake failures common with basic splitters. The jump is worth it when sources and screens have mismatched capabilities or when IR remote control is needed for rack-mounted or hidden installations.

Highlights

  • Connect four sources to four displays independently
  • True 4×4 matrix routes any input to any output
  • 4K 60 Hz HDR video at 18 Gbps bandwidth
  • HDCP 2.2 and deep-colour 8/10/12-bit support
  • 16 EDID modes auto-match each display for best picture

Specifications

TypeHDMI

Questions about this item

How do I install the 4x4 HDMI matrix switch and what step do people miss?

Connect up to four source devices to the four HDMI inputs and up to four displays to the four HDMI outputs, then power the unit with the included US plug power supply; the step often missed is rebooting the switch after changing any of the 16 EDID modes so the new settings take effect.

What maintenance or replacement will this matrix switch need over time?

No user-serviceable parts are inside; keep ventilation slots clear of dust and verify that connected cables remain firmly seated, as the 18 Gbps bandwidth and 600 MHz clock can be sensitive to loose connections.

What limit appears first during sustained 4K 60 Hz HDR use?

The 18 Gbps data-rate ceiling and 600 MHz maximum bandwidth are the first constraints; pushing deep-colour 12-bit 4K 60 Hz HDR content continuously operates at the edge of the HDMI 2.0b specification supported by this unit.
