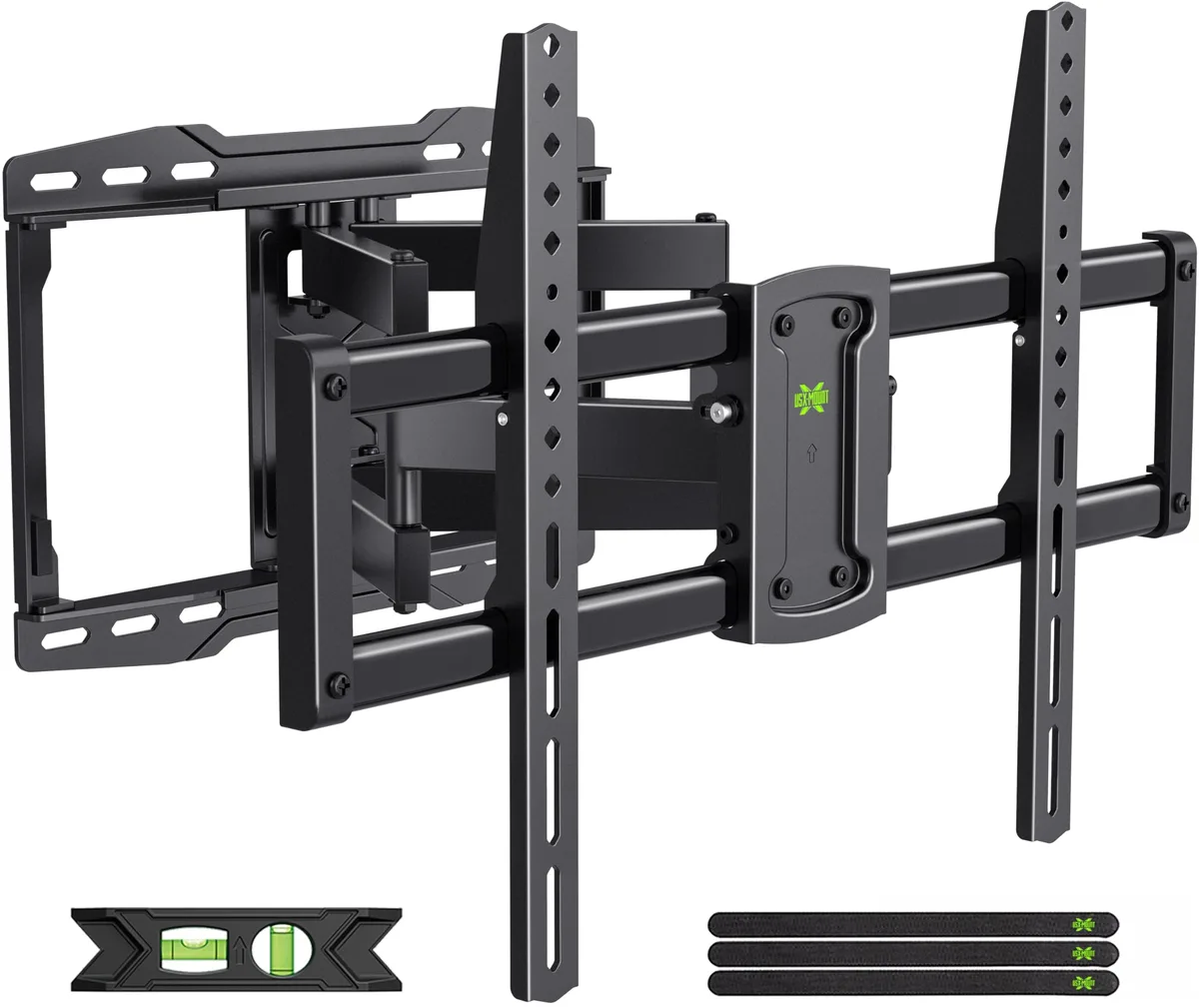

Black full-motion TV wall mount with dual articulating arms, flat wall plate, matte finish

USX MOUNT XML019 Full Motion TV Mount 42-86 Inch Black

SKU CH-YFTM-RYVFT

A full-motion wall bracket for 42-86 inch TVs up to 132 lbs with VESA 200x100 to 600x400, ±45° swivel, tilt and 2.52-16.61 inch extension

  • Name42-86 Inch Full Motion TV Mount
  • Mount StyleWall Mount
  • ColorBlack
  • TV Size Capacity42-86 Inch Full Motion TV Mount
  • Height30.0 in
  • Width7.0 in
  • Fits 42 to 86 inch TVs with VESA 200x100 to 600x400
  • Holds up to 132 lbs on 16 inch wood studs
  • Extends 16.61 inch and retracts to 2.52 inch from wall
  • Tilts +5 to -15 degrees, swivels ±45 degrees, levels ±4 degrees
  • Includes bubble level, template and pre-labelled hardware bags for quick install

Universal Articulating Mount

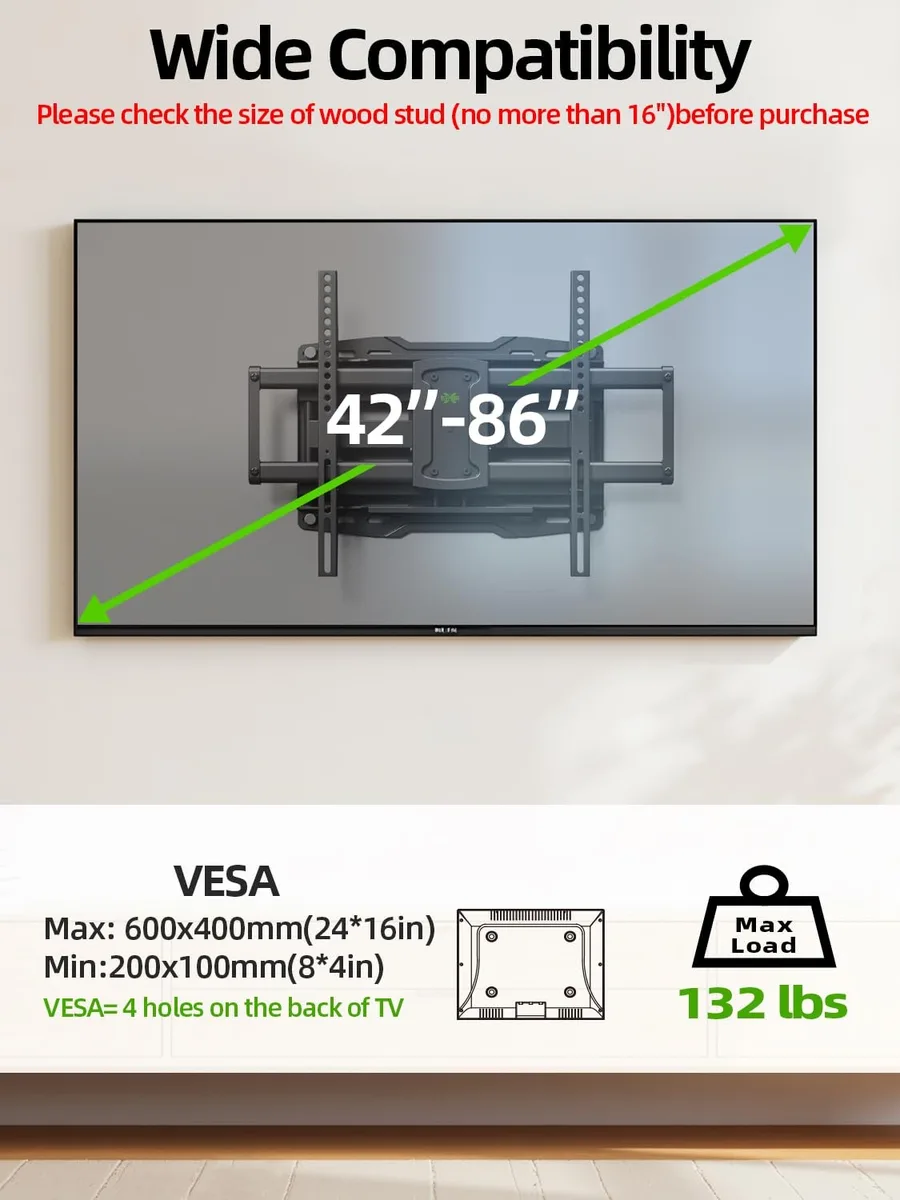

The USX MOUNT XML019 is a full-motion wall bracket built from high-quality steel for 42 to 86 inch televisions. It supports VESA patterns from 200 by 100 mm up to 600 by 400 mm and holds displays weighing up to 132 lbs. The mount secures to wood studs spaced up to 16 inches on centre.

Extension Range and Stud Spacing

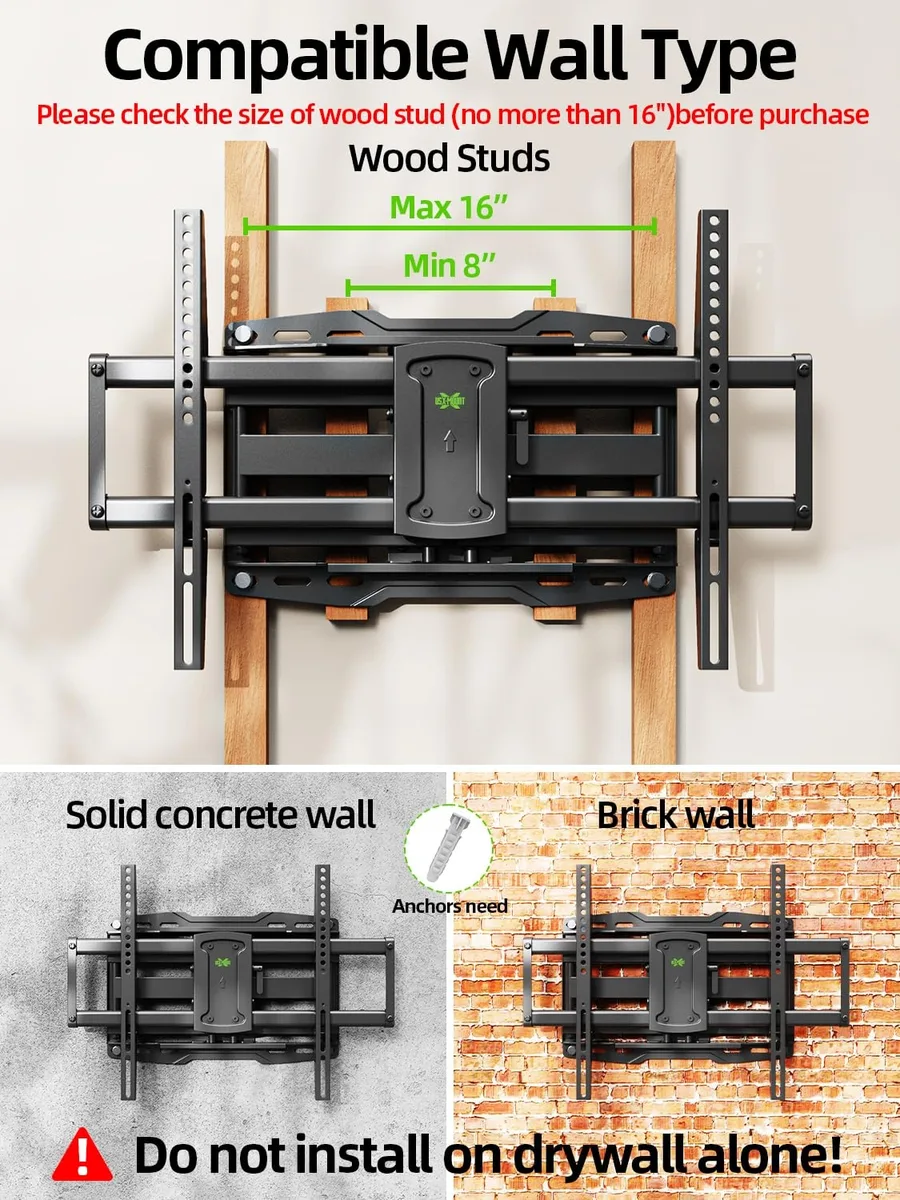

The dual articulating arms extend from 2.52 inches to 16.61 inches from the wall surface, so the required clearance varies with the chosen position. Mounting hardware aligns with 16 inch wood stud centres; the outermost holes on the wall plates must be used to match that spacing. Concrete installations need separate 10 by 50 mm anchors which are not included.

Tilt Swivel and Level Adjustment

The bracket provides +5° to -15° tilt to cut glare and ±45° swivel for wide-angle viewing, though the maximum swivel depends on the screen size. A ±4° post-installation level adjustment corrects minor alignment shifts after the TV is hung. Integrated velcro straps keep cables tidy throughout the full range of motion.

Highlights

  • Fits 42 to 86 inch TVs with VESA 200x100 to 600x400
  • Holds up to 132 lbs on 16 inch wood studs
  • Extends 16.61 inch and retracts to 2.52 inch from wall
  • Tilts +5 to -15 degrees, swivels ±45 degrees, levels ±4 degrees
  • Includes bubble level, template and pre-labelled hardware bags for quick install

Specifications

BrandUSX MOUNT
ModelXML019
Name42-86 Inch Full Motion TV Mount
Mount StyleWall Mount
ColorBlack
TV Size Capacity42-86 Inch Full Motion TV Mount
Height30.0 in
Width7.0 in
Weight5.55 kilograms

Questions about this item

Which VESA pattern should I check on my TV before buying this mount?

This mount supports VESA hole patterns from 200x100 mm up to 600x400 mm, so verify your TV's mounting holes fall within that range.

How far will a 65 inch screen sit from the wall when fully extended?

The dual arms extend up to 16.61 inches from the wall and retract to 2.52 inches, giving you the same range regardless of screen size.

What stud spacing does the wall plate accept?

The bracket is designed for 16 inch wood stud centres; use the outermost holes on each wall plate to match that spacing.
