Clear halogen T6 bulb with G9.5 2-pin base and ceramic heat sink

Ushio

Ushio 1003184 HPL 750W 240V Standard Bulb

SKU CH-XECA-RBKVV MPN 1003184

A 750W 240V halogen lamp with G9.5 base and heat sink delivers 19750 lumens at 3200K for 300 hours

  • TypeHalogen Bulbs
  • Wattage750
  • 750 W halogen output delivers 19,750 lumens for bright stage illumination
  • 3200 K colour temperature with CRI 100 renders colours accurately under studio lights
  • G9.5 2-pin base with ceramic heat sink ensures stable electrical contact throughout lamp life
  • Compact T6 filament geometry increases fixture efficiency by up to 20 % in compatible ETC Source Four units
  • 300-hour rated life at 240 V provides reliable performance for productions

Ushio HPL 750W 240V Stage Lamp

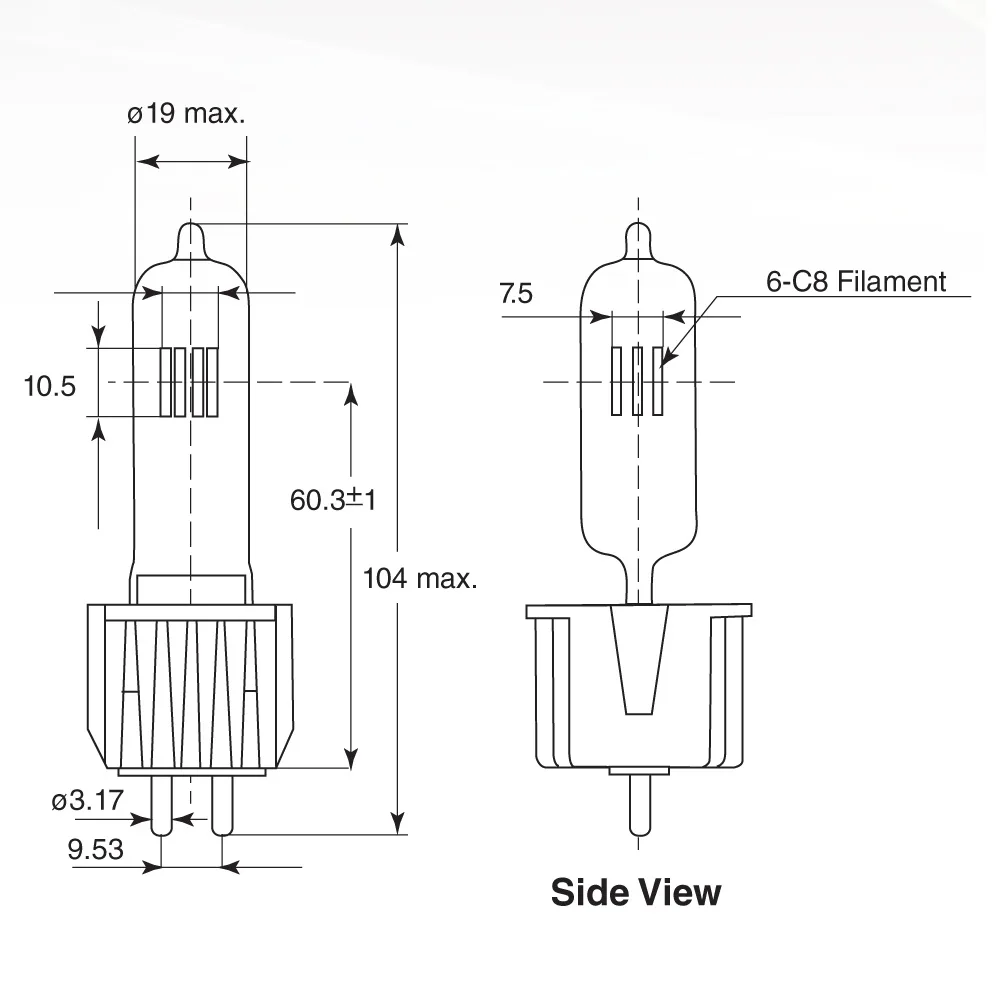

The Ushio 1003184 is a 750W 240V halogen lamp built for stage and studio fixtures that accept a G9.5 2-pin base with heat sink. It delivers 19750 lumens at 3200K with a CRI of 100 for accurate colour rendering. The T6 envelope measures .72 in diameter and 4.09 in overall length. It is designed for professional lighting crews who need maximum output from ETC Source Four fixtures.

Thermal and Power Characteristics

The lamp draws 750W at 240V and carries a rated life of 300 hours under normal operation. Its ceramic heat sink base maintains consistent electrical resistance throughout the lamp's lifespan. The compact 6-C8 filament geometry improves optical efficiency by up to 20 percent compared to earlier designs. Heat output is significant and requires fixtures rated for this wattage and voltage.

G9.5 Base and Fixture Compatibility

The G9.5 2-pin base with integrated heat sink ensures secure electrical contact and thermal management in compatible sockets. No additional accessories or software are included with the lamp itself. The clear finish and precise filament alignment allow the fixture's optics to achieve the full 20 percent lumen gain. Buyers needing a different voltage, wattage, or base type must select an alternative model.

Highlights

  • 750 W halogen output delivers 19,750 lumens for bright stage illumination
  • 3200 K colour temperature with CRI 100 renders colours accurately under studio lights
  • G9.5 2-pin base with ceramic heat sink ensures stable electrical contact throughout lamp life
  • Compact T6 filament geometry increases fixture efficiency by up to 20 % in compatible ETC Source Four units
  • 300-hour rated life at 240 V provides reliable performance for productions

Specifications

BrandUshio
TypeHalogen Bulbs
Wattage750

Questions about this item

How do I install the G9.5 2-pin base with heat sink into an ETC Source Four fixture?

Align the two pins with the socket slots, push firmly until the ceramic base seats flush, then secure the fixture's retention latch; the heat sink must contact the fixture's thermal path or the lamp will overheat and fail early.

When will the 300-hour rated life require lamp replacement?

After approximately 300 hours of operation the tungsten filament degrades and output drops noticeably; replace the lamp once brightness falls below the level needed for your production.

What thermal limit appears first during a long show with the 750 W halogen capsule?

The ceramic heat sink base reaches its maximum safe temperature first; if the fixture's cooling airflow is restricted the lamp will shut down or suffer premature filament failure.
