RGB LED strip connector kit with 26ft wire and assorted solderless connectors

usbroway

usbroway RGB LED Strip Connector Kit 10mm 26ft 22AWG

SKU CH-SSZV-SGAH9

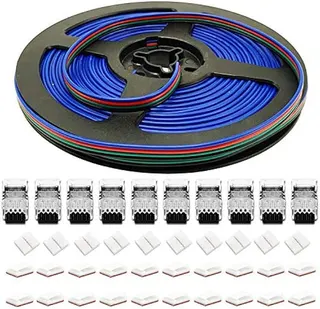

Solderless kit extends 10 mm 5050 or 3528 RGB strips with 26 ft of 22 AWG wire, 10 waterproof strip-to-wire and 10 strip-to-strip connectors, plus 20 adhesive holders for walls, tables, glass or metal

  • Connector Typetype
  • Connect 5050 and 3528 RGB strips with 10 mm 4-pin compatibility

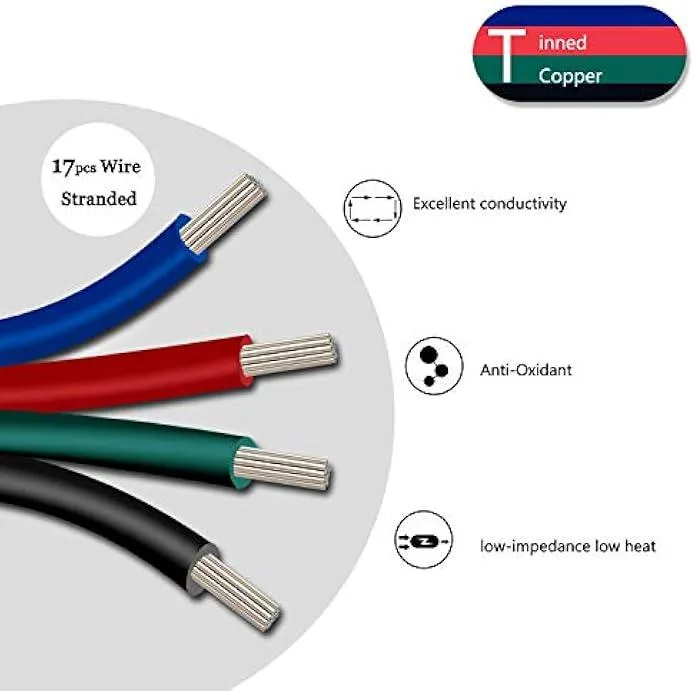

  • Extend runs up to 26 ft using 22 AWG extension wire
  • Install without soldering using 10 strip-to-wire and 10 strip-to-strip connectors
  • Mount securely on walls, glass or metal with 20 adhesive holders
  • Power safely with 0-48 V wire, 36 V/5 A waterproof connectors and 24 V/3 A strip links

Solderless RGB LED Strip Kit

This kit connects or extends four-pin 5050 and 3528 RGB LED strips that are 10mm wide. It includes a 26ft 22AWG extension wire, ten waterproof strip-to-wire connectors, ten strip-to-strip connectors, and twenty adhesive holders for surface mounting.

Voltage and Current Limits

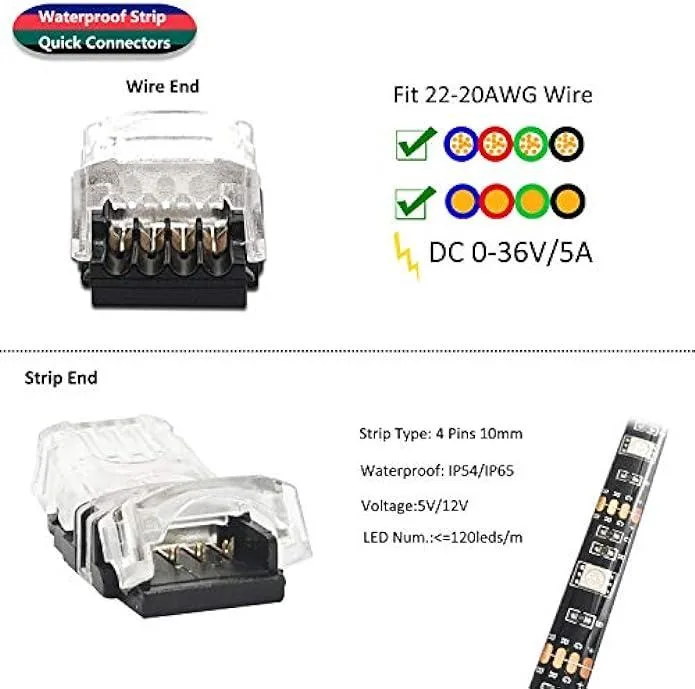

The extension wire handles 0 to 48 volts. Waterproof strip-to-wire connectors are rated for up to 36 volts and 5 amps. Strip-to-strip connectors support a maximum of 24 volts and 3 amps, so the installed strip length must stay within those limits.

Replaces Soldered Joints

It removes the need for a soldering iron when joining or extending compatible strips. The jump is worth it for installers who want a tool-free, non-destructive setup on walls, tables, glass, or metal, but not for strips wider than 10mm or for higher voltage and current demands.

Highlights

  • Connect 5050 and 3528 RGB strips with 10 mm 4-pin compatibility
  • Extend runs up to 26 ft using 22 AWG extension wire
  • Install without soldering using 10 strip-to-wire and 10 strip-to-strip connectors
  • Mount securely on walls, glass or metal with 20 adhesive holders
  • Power safely with 0-48 V wire, 36 V/5 A waterproof connectors and 24 V/3 A strip links

Specifications

Connector Typetype

Questions about this item

Should I choose the strip-to-wire or strip-to-strip connectors for my 10 mm RGB LED strips?

The kit includes ten waterproof strip-to-wire connectors rated for DC 36 V/5 A and ten strip-to-strip connectors rated for DC 0-24 V/3 A, so pick based on whether you need waterproof joins or direct strip links.

What does the 22 AWG extension wire mean for my LED installation?

The 26 ft, 22 AWG, 4-pin wire handles 0-48 V and is designed for 5050 and 3528 10 mm RGB strips, giving you flexible, solderless runs up to the full length.

How do the voltage and current limits of the connectors affect my power supply choice?

Strip-to-wire connectors support up to DC 36 V/5 A, while strip-to-strip connectors support up to DC 24 V/3 A; match your supply to the lower limit of the connector type you use.
