Two grey Anderson plugs with thick red and black cables coiled together

usbroway

usbroway Anderson connector kit 175A 6AWG 1.2 m

SKU CH-KEEJ-2SJMW

Pre-assembled 175 A Anderson connector kit with two 1.2 m, 6 AWG UL1015 cables rated 600 V and 105 °C for 12–36 V systems

  • Connector Typetype
  • 175 A continuous rating supports heavy-duty winches and inverters
  • UL94 V-0 housing resists heat and corrosion in harsh environments
  • 2 m UL1015 6 AWG leads handle 105 °C and 600 V without extra wiring

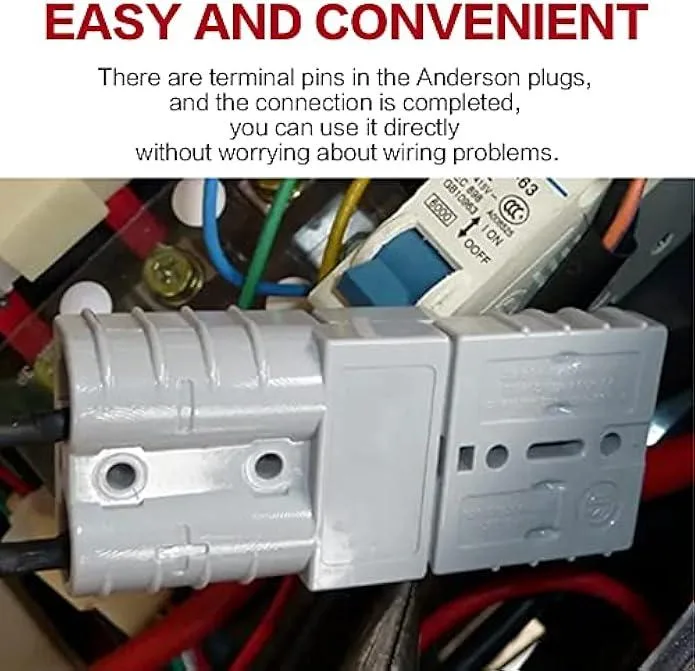

  • Pre-assembled identical ends connect power or load side instantly
  • Kit includes two plugs, four terminals and two cables for battery, RV or industrial use

175 A Anderson kit for 12–36 V systems

This pre-assembled kit delivers a 175 A Anderson connector pair on 6 AWG UL1015 cable rated for 600 V. Each 1.2 m lead is terminated with identical genderless plugs, so either end can serve as the supply or load side. The housing uses UL94V-0 high-impact plastic that resists heat to 105 °C and corrosion in harsh environments. It suits DC circuits from 12 V to 36 V in automotive, marine and industrial equipment.

Check wire gauge and voltage before ordering

Verify that your application operates within the 12 V to 36 V DC range and does not exceed the 175 A continuous rating of the connectors. Confirm that 6 AWG conductors meet the voltage-drop and ampacity requirements for your run length and that the 600 V insulation rating satisfies any local code. The genderless design means no polarity-specific plugs are needed, but ensure the mating device also accepts standard 175 A Anderson housings.

UL94V-0 shells and pre-crimped terminals

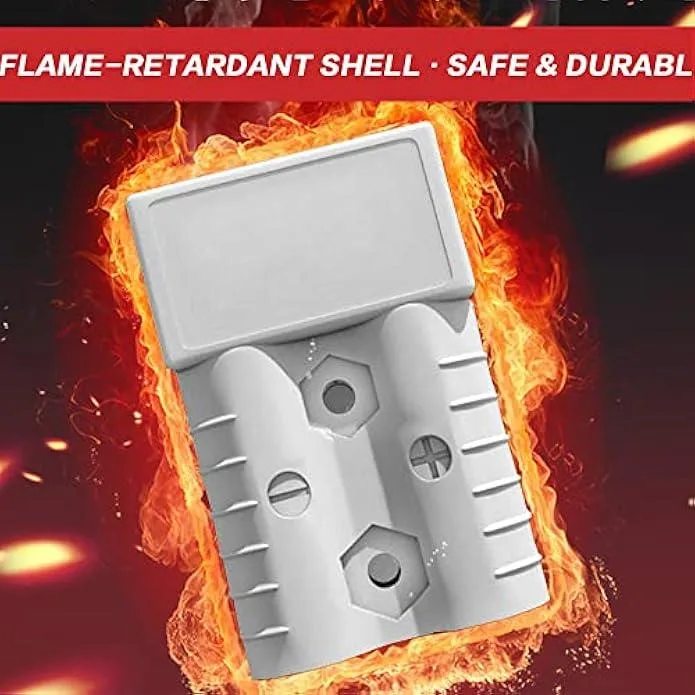

The connector bodies are moulded from Class A UL94V-0 plastic that withstands elevated temperature and chemical exposure without degrading. Terminals arrive factory-crimped to the 1.2 m UL1015 wires, eliminating field crimping and reducing installation time. Identical plug ends allow quick, reversible mating in tight compartments on winches, inverters, battery banks or material-handling gear. The completed harness includes two plugs, four terminals and two cables ready for immediate service.

Highlights

  • 175 A continuous rating supports heavy-duty winches and inverters
  • UL94 V-0 housing resists heat and corrosion in harsh environments
  • 2 m UL1015 6 AWG leads handle 105 °C and 600 V without extra wiring
  • Pre-assembled identical ends connect power or load side instantly
  • Kit includes two plugs, four terminals and two cables for battery, RV or industrial use

Specifications

Connector Typetype

Questions about this item

What comes in the box and is anything else needed to start using it?

The kit includes two 175 A Anderson plugs, four terminals and two 1.2 m UL1015 6 AWG wires already assembled, so no extra parts or crimping tools are required.

How do I know the 175 A rating is right for my 12 V or 36 V system?

The connector handles 175 A continuous at 12–36 V with a 600 V withstand rating, and the 6 AWG leads are rated for 105 °C and 600 V, matching typical vehicle and winch circuits.

What does the 1.2 m wire length mean when the kit is installed in a vehicle?

Each lead is 1.2 metres long, giving a total reach of about 2.4 metres between the power source and the load once both ends are plugged in.
