US Robotics

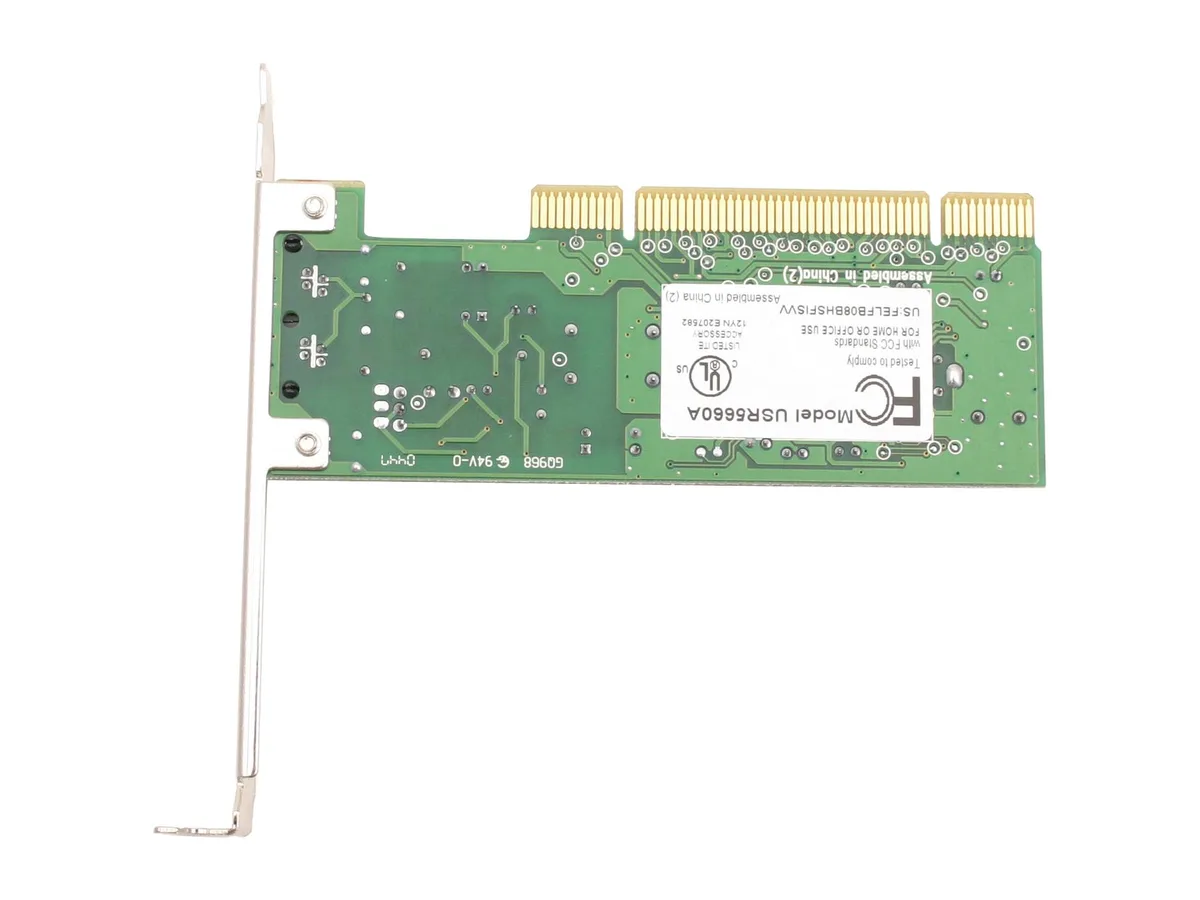

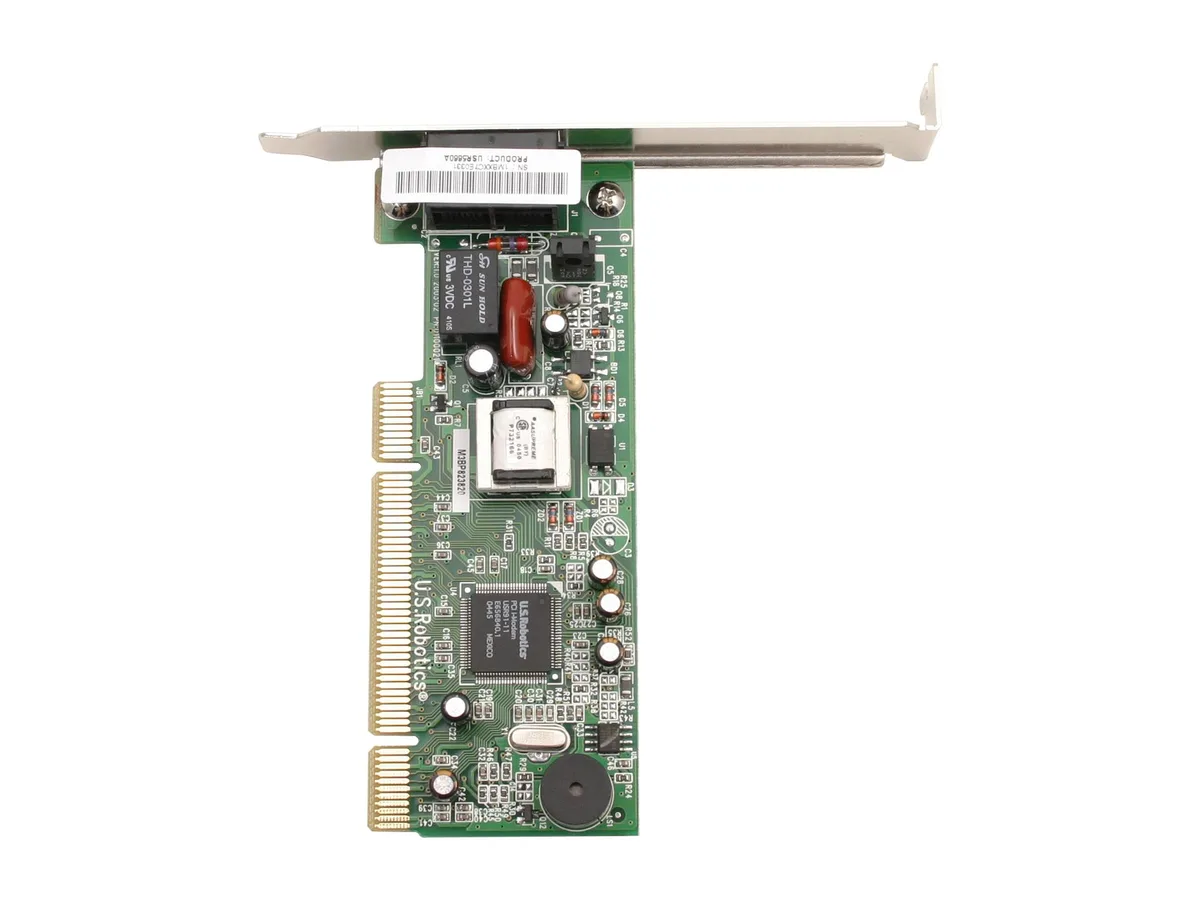

US Robotics USR5660A PCI Dial-Up Modem 56K V.92
A PCI dial-up modem with two RJ11 ports supporting V.92 and V.90 standards up to 56Kbps
- TypeDial-Up Modem
- InterfacePCI Bus (Plug & Play)
- Cable Interface2 x RJ11 ports
- StandardsV.92 56K ITU standard V.90 56K ITU standard V.34 33.6K ITU s
- Max Transmission Rate56Kbps
- FeaturesFeature-rich affordability Ideal for home use Send e-mail an
- 56Kbps dial-up speed via V.92 ITU standard
- PCI plug-and-play interface installs in three steps
- Dual RJ11 ports support simultaneous fax and voice
- V.44 and V.42bis compression accelerate data throughput
- Class 1 fax with V.17, V.29, V.27ter standards
PCI Dial-Up Modem for Legacy Lines
The US Robotics USR5660A is a PCI bus dial-up modem designed for desktop PCs that still connect through analogue telephone lines. It suits home users who need basic internet access, fax capability or V.80 video conferencing on a V.92 56K connection.
Plug-and-Play Install with Common Pitfalls
The card uses a standard PCI slot and ships with a resource disk, RJ11 cable and manual for a three-step setup. Installers often forget to disable any onboard modem in BIOS, which creates a resource conflict, or they omit the telephone-line surge protector that the manual recommends.
Steady 56K Operation Within Line Limits
Under continuous use the modem holds to the ITU V.92, V.90 and V.34 standards with V.42, MNP2-4 error control and V.44, V.42bis, MNP5 compression. Real-world throughput stays bounded by the 56Kbps ceiling and the quality of the copper pair, so sustained sessions do not exceed the rated maximum.
Highlights
- 56Kbps dial-up speed via V.92 ITU standard
- PCI plug-and-play interface installs in three steps
- Dual RJ11 ports support simultaneous fax and voice
- V.44 and V.42bis compression accelerate data throughput
- Class 1 fax with V.17, V.29, V.27ter standards
Specifications
| Brand | U.S. Robotics |
|---|---|
| Model | USR5660A |
| Type | Dial-Up Modem |
| Interface | PCI Bus (Plug & Play) |
| Cable Interface | 2 x RJ11 ports |
| Standards | V.92 56K ITU standard V.90 56K ITU standard V.34 33.6K ITU standard Compatible with most ITU and Bell standards down to 300 bps V.80 video conferencing support V.42, MNP2-4 error control V.44, V.42bis, MNP5 data compression Fax: EIA 578 (Class 1) with V.17, V.29, V.27ter |
| Max Transmission Rate | 56Kbps |
| Features | Feature-rich affordability Ideal for home use Send e-mail and attachments faster Get online faster Don’t miss that important phone call Simple three-step installation Software upgradable Includes full-featured faxing software |

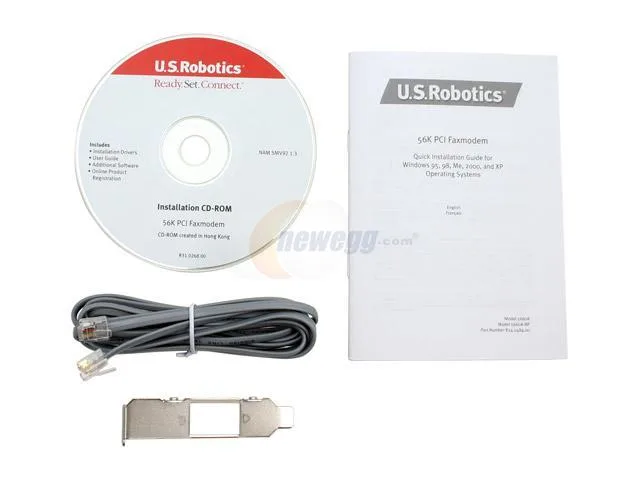

| Package Contents | USR5660A Resource Disk RJ11 Cable Manual Other Accessory |
| Shipping weight | 0.07 kg |
| Package size | 203 × 152 × 37 mm |
Questions about this item
How do I verify the modem is operating at 56Kbps after installing the USR5660A?
Check the connection speed reported by your dial-up networking software; it should show a rate up to 56Kbps when the V.92 handshake completes successfully.
What comes with the USR5660A and what must I provide separately?
The box contains the modem card, a resource disk, an RJ11 cable, a manual and an accessory; you must supply a desktop with a free PCI slot and an active telephone line.
Which version of the USR5660A should I choose for V.92 call-waiting features?
The USR5660A is a single model supporting V.92, V.90 and V.34 standards, so the listed version already includes call-waiting and modem-on-hold capabilities.
