Compact metal 10-port PoE+ switch, eight PoE ports plus two uplinks, built-in power supply

Universal

Universal 10-Port Unmanaged PoE+ Switch 8×PoE 120W 2 Uplink 250m

SKU CH-9KMA-F5QJ6

An unmanaged 10-port PoE+ switch with eight powered ports, a 120 W budget and two uplinks extending data and power to 250 m

  • Switch Type1
  • 8 PoE+ ports deliver up to 30 W each for cameras and access points

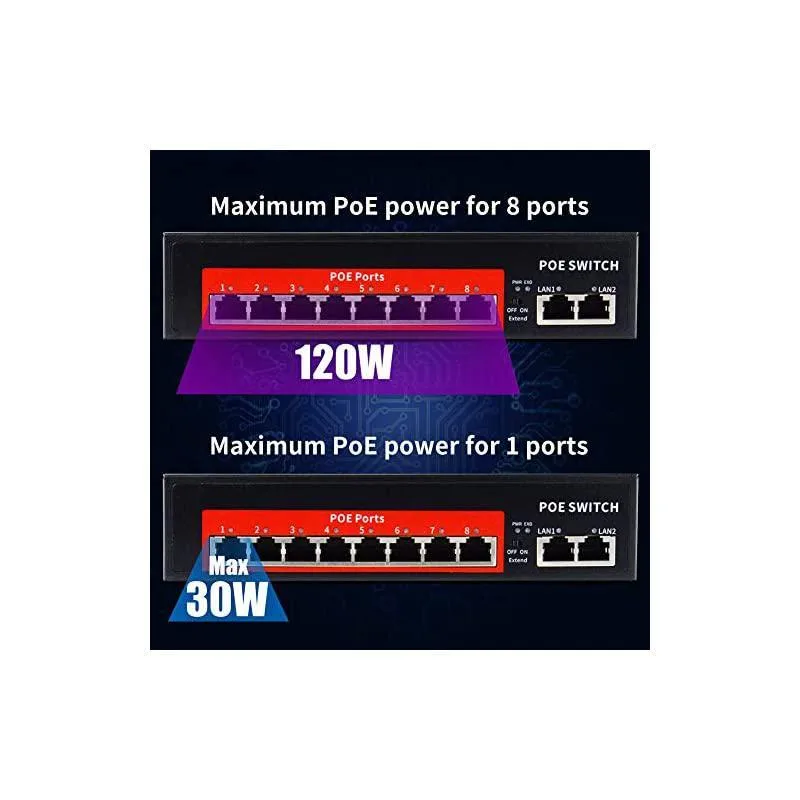

  • 120 W total PoE budget powers multiple devices without an external supply
  • Two dedicated uplink ports keep PoE ports free for endpoints
  • Extend mode reaches 250 m at 10 Mbps for long cable runs

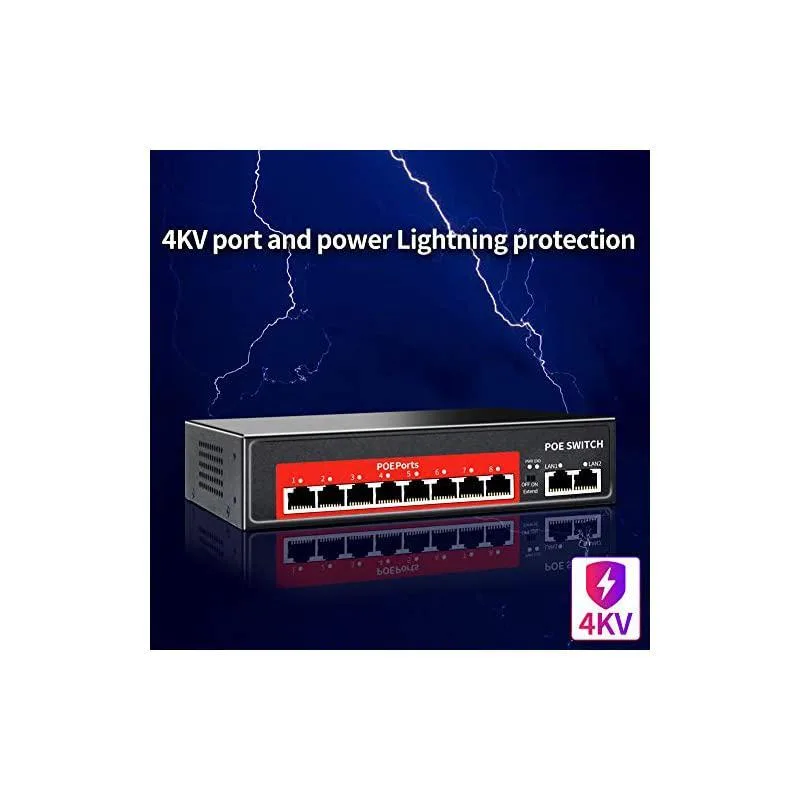

  • 4 kV common-mode lightning protection safeguards the network from surges

Universal 10-Port Unmanaged PoE+ Switch

This unmanaged 10-port switch delivers 120W of total PoE power across eight 10/100Mbps PoE ports compliant with IEEE 802.3 af/at, providing up to 30W per port. Two dedicated 10/100Mbps uplink ports connect an NVR or internet link without using PoE ports. An extend mode pushes power and data to 250 metres at 10Mbps. It suits installers deploying IP cameras or access points over long cable runs.

Metal housing with internal power supply and surge

A compact metal chassis measuring 190mm x 131mm x 34mm houses an internal 100-240V AC power supply, eliminating an external brick. Ports feature 4KV common-mode and 2KV differential-mode lightning protection plus short-circuit, over-current and over-voltage safeguards. Fanless operation suits quiet environments from -10°C to 55°C. Plug-and-play design requires no configuration.

Verify 100Mbps speed budget and 120W total PoE limit

All ten ports operate at 10/100Mbps only; gigabit devices will negotiate down to 100Mbps. The 120W budget is shared across eight PoE ports, so eight 30W devices exceed the limit. Extend mode drops linked ports to 10Mbps. Confirm your powered devices accept 802.3 af/at negotiation and that 100Mbps throughput meets camera or access-point requirements.

Highlights

  • 8 PoE+ ports deliver up to 30 W each for cameras and access points
  • 120 W total PoE budget powers multiple devices without an external supply
  • Two dedicated uplink ports keep PoE ports free for endpoints
  • Extend mode reaches 250 m at 10 Mbps for long cable runs
  • 4 kV common-mode lightning protection safeguards the network from surges

Specifications

Switch Type1

Questions about this item

What does the IEEE 802.3af/at standard cap per-port power at for this switch?

Each of the eight PoE ports can deliver up to 30W, while the total PoE budget across all ports is 120W.

What are the physical dimensions and weight of this 10-port switch?

The metal enclosure measures 190mm wide, 131mm deep and 34mm high, weighing 0.96 kg.

How is the extend mode activated and what speed trade-off occurs?

Use the extend switch on the unit; it pushes power and data to 250 metres but drops the link speed to 10Mbps.
