Yellow handheld digital multimeter with rotary dial and LCD display

United Pacific UT892 2000V Digital Multimeter 6000 Counts True RMS

SKU CH-ANGH-FS35J

Measures up to 2000V AC/DC with 6000-count True RMS, VFC mode and built-in NCV detection

  • FeaturesEnglish manual, test leads, batteries., Ul 61010-1, Iec 6101
  • Height187 L x 88 W x 56 H millimeters
  • Width187 L x 88 W x 56 H millimeters
  • Length187 L x 88 W x 56 H millimeters
  • Weight0.5 kilograms
  • Sports Team1 Piece

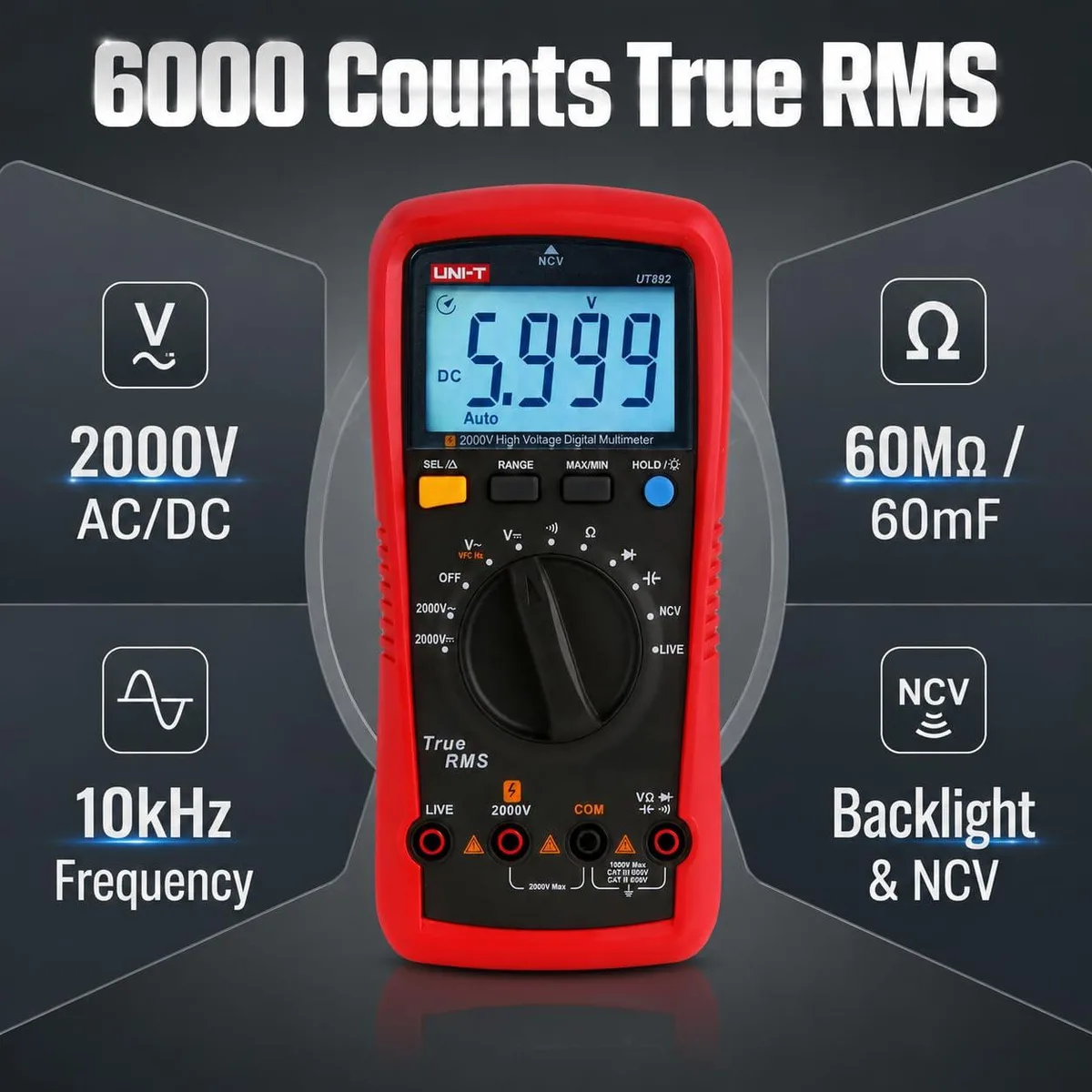

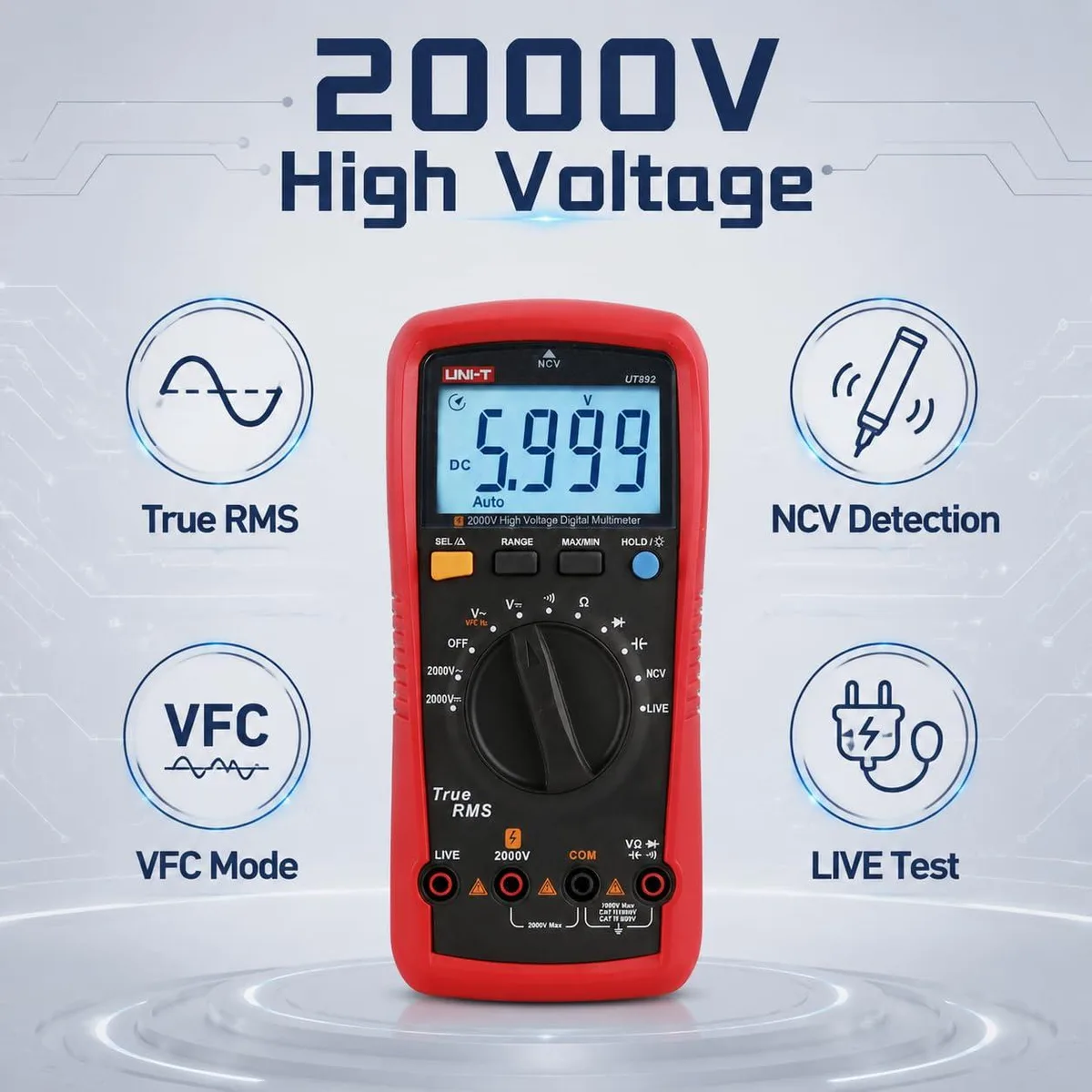

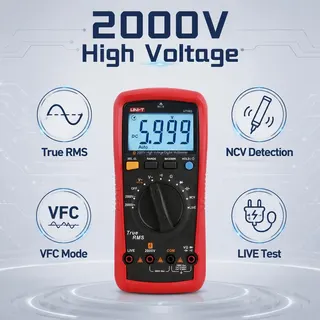

  • Measures up to 2000V AC/DC with 6000-count True RMS accuracy
  • VFC mode checks variable-frequency drives up to 600V without contact
  • Built-in NCV detects live wires at CAT II 1000V and CAT III 600V
  • Tests resistance to 60M, capacitance to 60mF and frequency to 10kHz
  • Test-lead alert and backlight prevent connection errors in dim areas

High-Voltage Multimeter for Electrical Testing

The United Pacific UT892 is a 6000-count True RMS digital multimeter rated for 2000V AC/DC measurement with full-range overload protection. It meets UL 61010-1 and IEC 61010-2-030 standards for CAT III 1000V and CAT IV 600V environments. The meter includes VFC mode for variable frequency drive testing and built-in non-contact voltage detection rated to CAT II 1000V and CAT III 600V. Test leads, batteries and an English manual are supplied.

Suited for High-Voltage Panels and Drive Work

Electricians and technicians measuring solar arrays, EV infrastructure or industrial VFD outputs will benefit from the 2000V range and VFC function. The CAT IV 600V rating supports measurements at the service entrance. Buyers who only work on low-voltage control circuits or extra-low-voltage electronics will not need this voltage rating. Users requiring wireless data logging or graphical waveform display should look at a different instrument class.

Check Leads and Category Rating Before Use

Verify that the supplied test leads carry a voltage rating equal to or higher than the circuit under test and that their category marking matches the installation environment. Confirm the meter’s CAT III 1000V and CAT IV 600V limits cover the prospective short-circuit current at your measurement point. Ensure the battery compartment is secure and the backlight functions for low-light panels.

Highlights

  • Measures up to 2000V AC/DC with 6000-count True RMS accuracy
  • VFC mode checks variable-frequency drives up to 600V without contact
  • Built-in NCV detects live wires at CAT II 1000V and CAT III 600V
  • Tests resistance to 60M, capacitance to 60mF and frequency to 10kHz
  • Test-lead alert and backlight prevent connection errors in dim areas

Specifications

BrandUnited Pacific
FeaturesEnglish manual, test leads, batteries., Ul 61010-1, Iec 61010-2-030, Cat III 1000v, Cat IV 600v, True Rms, Battery Powered, false
Height187 L x 88 W x 56 H millimeters
Width187 L x 88 W x 56 H millimeters
Length187 L x 88 W x 56 H millimeters
Weight0.5 kilograms
Sports Team1 Piece
TypeMultimeters, Tach & Dwell Meters

Questions about this item

What test leads and power source come with the UT892 so I can use it immediately?

The UT892 includes test leads and batteries in the box, plus an English manual for setup.

Can the UT892 measure voltage on older CAT III 600 V panels without changing leads?

Yes, the UT892 is rated CAT III 1000 V and CAT IV 600 V, so it covers legacy CAT III 600 V installations with the supplied leads.

How do I confirm the UT892 is reading true RMS correctly after power-up?

Select AC voltage mode, apply a known sinusoidal source, and verify the display shows a stable 6000-count true RMS value matching the source.
