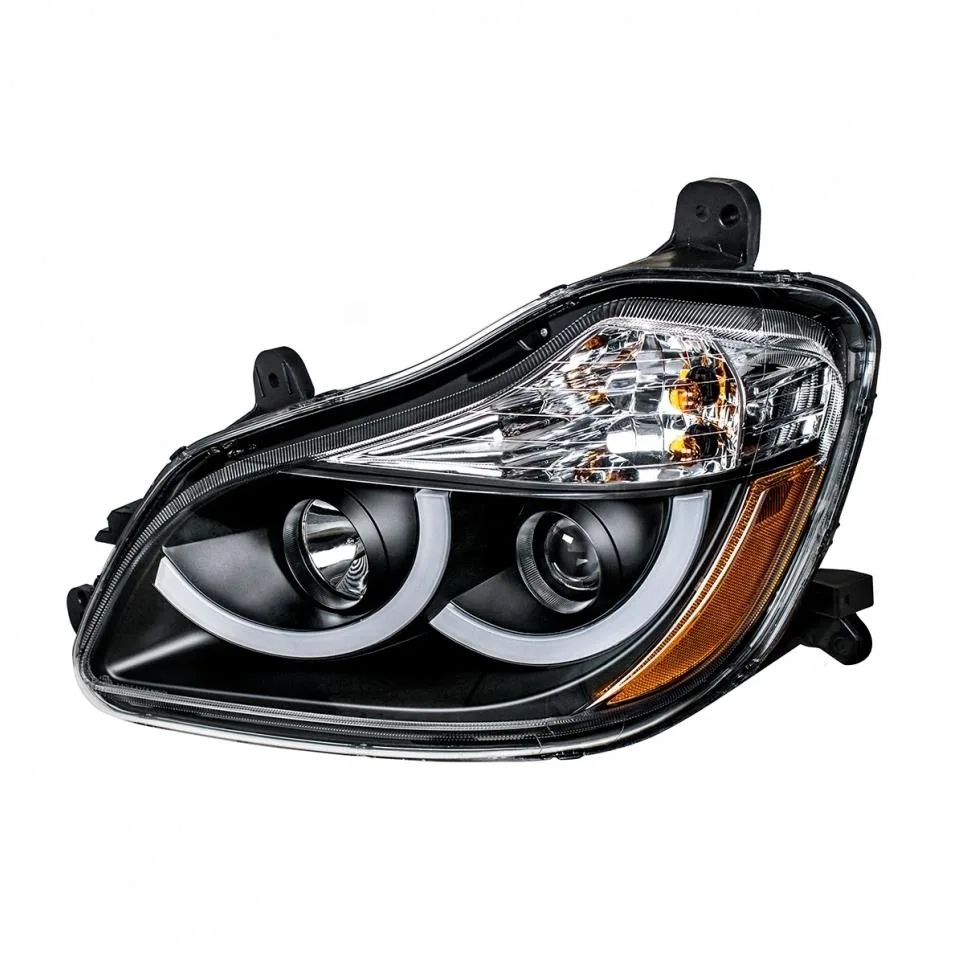

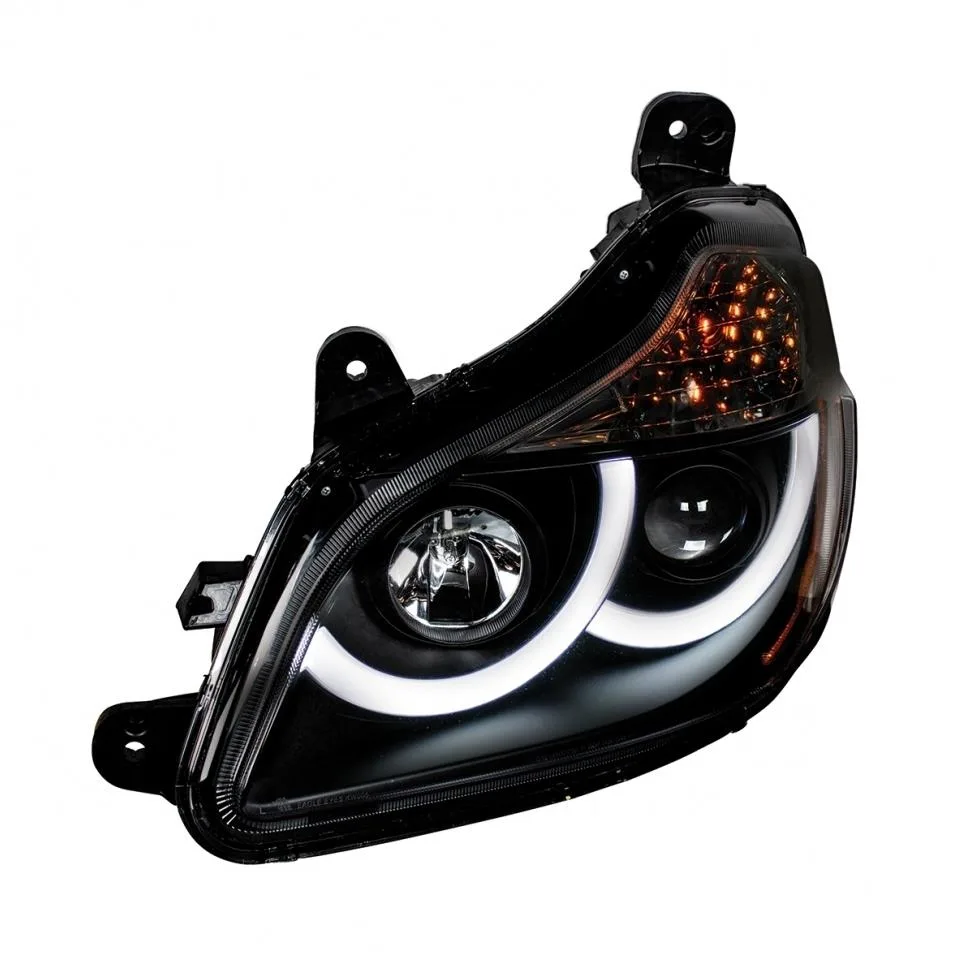

Black projection headlight assembly with LED position light for Kenworth T680 driver side

United Pacific Industries

United Pacific Blackout Projection Headlight LED Driver 2013+ Kenworth T680 31456

SKU CH-0TQS-ZVFQY

Driver-side projection headlight with white LED position light fits 2013+ Kenworth T680 and plugs into the factory harness

  • TypeHeadlights
  • QualityGenuine OEM
  • Projection headlight with white LED position light
  • Direct plug-in to existing wiring harness for simple installation
  • DOT/SAE approved for legal on-road use
  • H7 low-beam and H1 high-beam halogen bulbs included
  • Blackout finish matches 2013+ Kenworth T680 styling

Driver-Side Headlight for Kenworth T680

This projection headlight assembly fits 2013 and newer Kenworth T680 trucks on the driver side. It includes a white LED position light and uses the factory wiring harness for a direct plug-in installation. The unit carries DOT and SAE approval for on-road use. It is sold individually and built to genuine OEM quality standards.

Halogen Bulb Requirements and Electrical Draw

Low beam operation requires an H7 quartz halogen bulb rated at 12 V DC, 4.58 amps and 55 watts, meeting FMVSS 571.108. High beam operation requires an H1 quartz halogen bulb rated at 12 V DC, 4.58 amps and 55 watts. Both bulbs draw the same current, so the existing circuit must support the combined load when both beams are active. The LED position light operates within the same 12 V system without additional wiring.

Fitment and Physical Clearance Checks

Verify the truck is a Kenworth T680 with a 2013 or later model year before ordering. Confirm the driver-side position matches the vehicle layout. The assembly measures 29.5 by 17 by 13.5 inches and weighs 14.5 lbs, so ensure the mounting area can accommodate these dimensions and weight. No modifications to the wiring harness are required for connection.

Highlights

  • Projection headlight with white LED position light
  • Direct plug-in to existing wiring harness for simple installation
  • DOT/SAE approved for legal on-road use
  • H7 low-beam and H1 high-beam halogen bulbs included
  • Blackout finish matches 2013+ Kenworth T680 styling

Specifications

TypeHeadlights
QualityGenuine OEM

Questions about this item

Should I order the driver-side or passenger-side headlight for my 2013+ Kenworth T680?

This unit is the driver-side assembly only. The listing is sold individually, so choose the side that matches the truck position you are replacing.

What does the 55-watt rating mean for the low-beam output on the road?

The low beam uses an H7 quartz halogen bulb drawing 4.58 amps at 12 volts DC, producing a DOT/SAE-approved pattern that meets FMVSS 571.108 for on-road use.

Does the headlight plug directly into the factory harness on a Kenworth T680?

Yes, the assembly is designed for easy connection and plugs into the existing wiring harness without modification.
