Small square black cooling fan with two-pin cable and plastic frame

Unique-Bargains

Unique-Bargains V6 Cooling Fan DC 24V 30x30x32mm

SKU CH-AGEZ-0CY8T

DC 24 V fan cools 3D printer extruder heatsinks with 22 mm cover, 25 mm mounting pitch and 305 mm cable

  • 24 V DC power suits common 3D printer boards
  • 30 x 30 x 32 mm footprint fits tight extruder housings
  • 22 mm heatsink cover diameter matches standard V6 hot-ends
  • 25 mm mounting pitch with 3 mm holes aligns to typical fan brackets

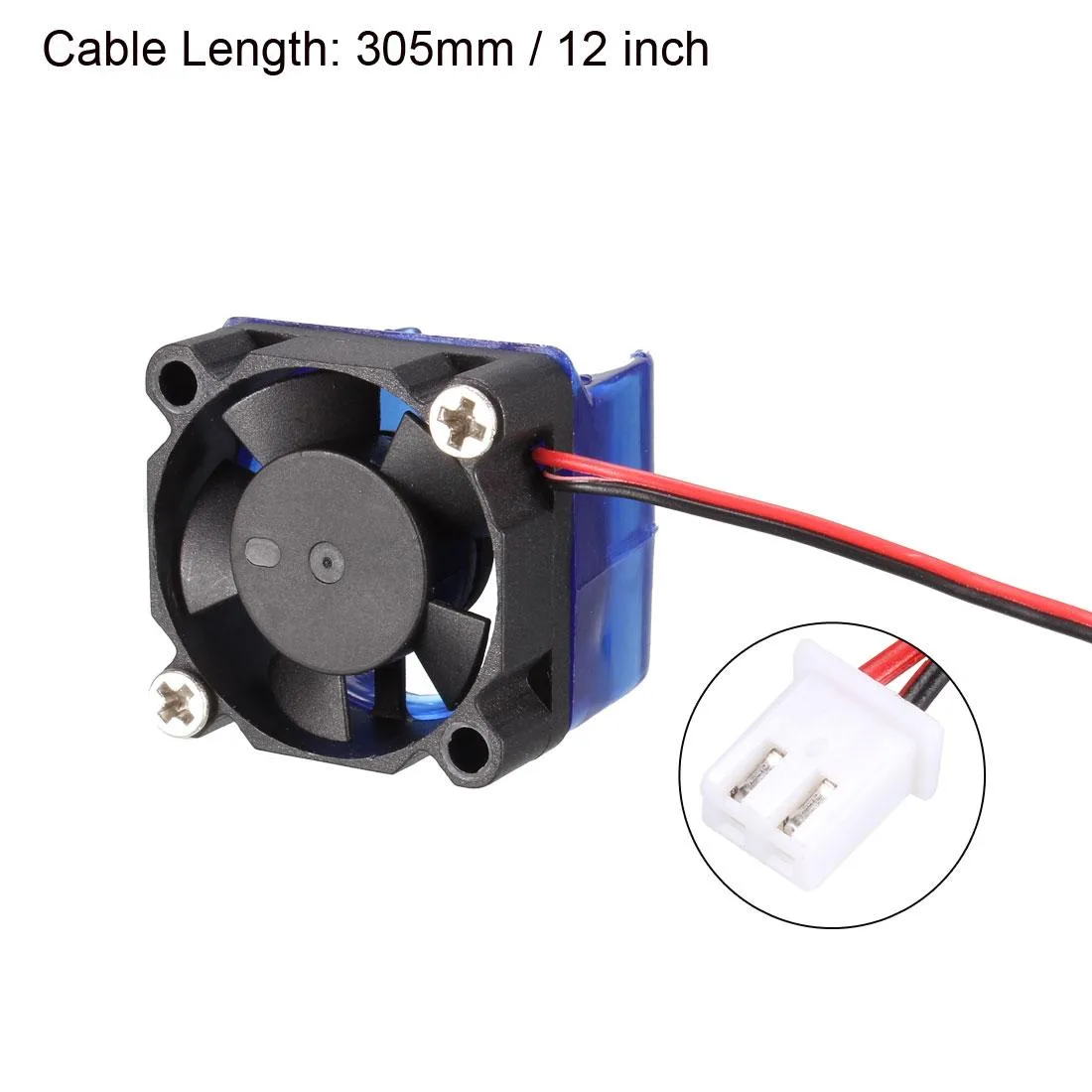

  • 305 mm cable length reaches controller boards without extensions

24V Cooling Fan for 3D Printer Hotends

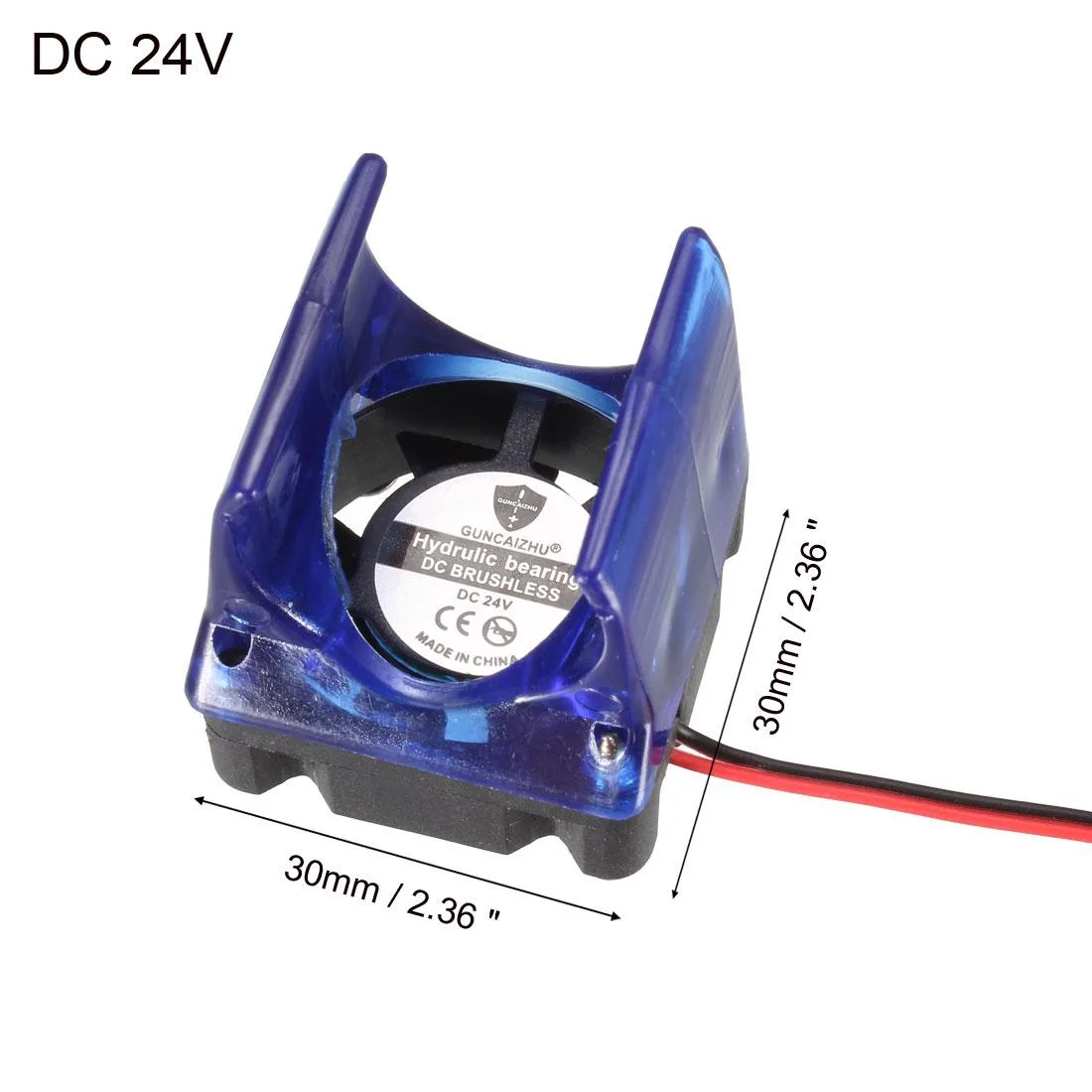

This DC 24V fan measures 30 x 30 x 32mm and is designed to press directly onto a heatsink with a 22mm cover diameter. It suits 3D printer extruder cooling on machines such as RepRap, Rostock, Prusa Mendel and Huxley. Builders needing a different voltage or a larger frame will need another solution.

Sustained Extruder Cooling

The fan runs continuously at its rated 24V to move air across the hotend heatsink during long prints. Its 305mm cable reaches most controller boards without extension. No airflow or static-pressure figures are supplied, so comparative performance under load cannot be stated.

Simple Press-Fit Mounting

Installation uses a 25 x 25mm mounting pitch with 3mm holes and a 2-pin 2.54mm pitch connector. The press-fit design relies on friction against the heatsink, so a loose fit can cause vibration or detachment. Users without a 24V supply or a matching 2-pin header cannot connect it directly.

Highlights

  • 24 V DC power suits common 3D printer boards
  • 30 x 30 x 32 mm footprint fits tight extruder housings
  • 22 mm heatsink cover diameter matches standard V6 hot-ends
  • 25 mm mounting pitch with 3 mm holes aligns to typical fan brackets
  • 305 mm cable length reaches controller boards without extensions

Specifications

BrandUnique Bargains

Questions about this item

How much noise and heat does the DC 24V fan add when it runs continuously on a 3D printer extruder?

The 30 x 30 x 32 mm frame moves air directly over the 22 mm heatsink cover, keeping the hotend cool during long prints without a bulky housing.

What existing hardware must I already have to connect the 2-pin 2.54 mm plug and mount the fan?

You need a 24 V DC fan header or wiring point on your printer board and two 3 mm holes spaced 25 x 25 mm apart on the heatsink.

Will this 305 mm cable reach the control board on an older RepRap or Prusa Mendel without an extension?

The 305 mm lead is long enough for most classic RepRap, Rostock, Prusa Mendel and Huxley layouts, pressing straight onto the heatsink.
