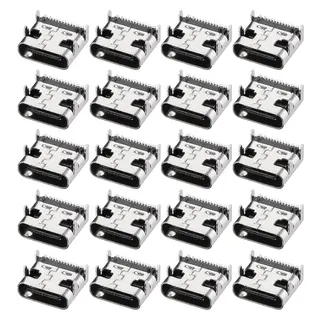

Bag of twenty small silver and black USB-C female sockets on green circuit boards

Unique-Bargains

Unique-Bargains USB-C 3.1 16-Pin Female Jack 20pcs

SKU CH-NSWP-W4ES7

Pack of 20 USB-C 3.1 16-pin female PCB connectors rated 30 V, 3 A with 0.5 mm pitch for DIY charging or data sockets

  • TypeGadgets
  • 16-pin USB-C 3.1 connector supports fast charging up to 30 V 3 A
  • 5 mm pin pitch enables dense PCB layouts for compact DIY projects
  • 35 × 8.94 × 4.3 mm footprint fits tight enclosures in portable gadgets
  • Four mounting feet spaced 8.64 mm apart give secure solder joints on custom boards
  • Pack of 20 silver-tone connectors covers multiple builds or prototype iterations

DIY PCB USB-C 3.1 connector kit

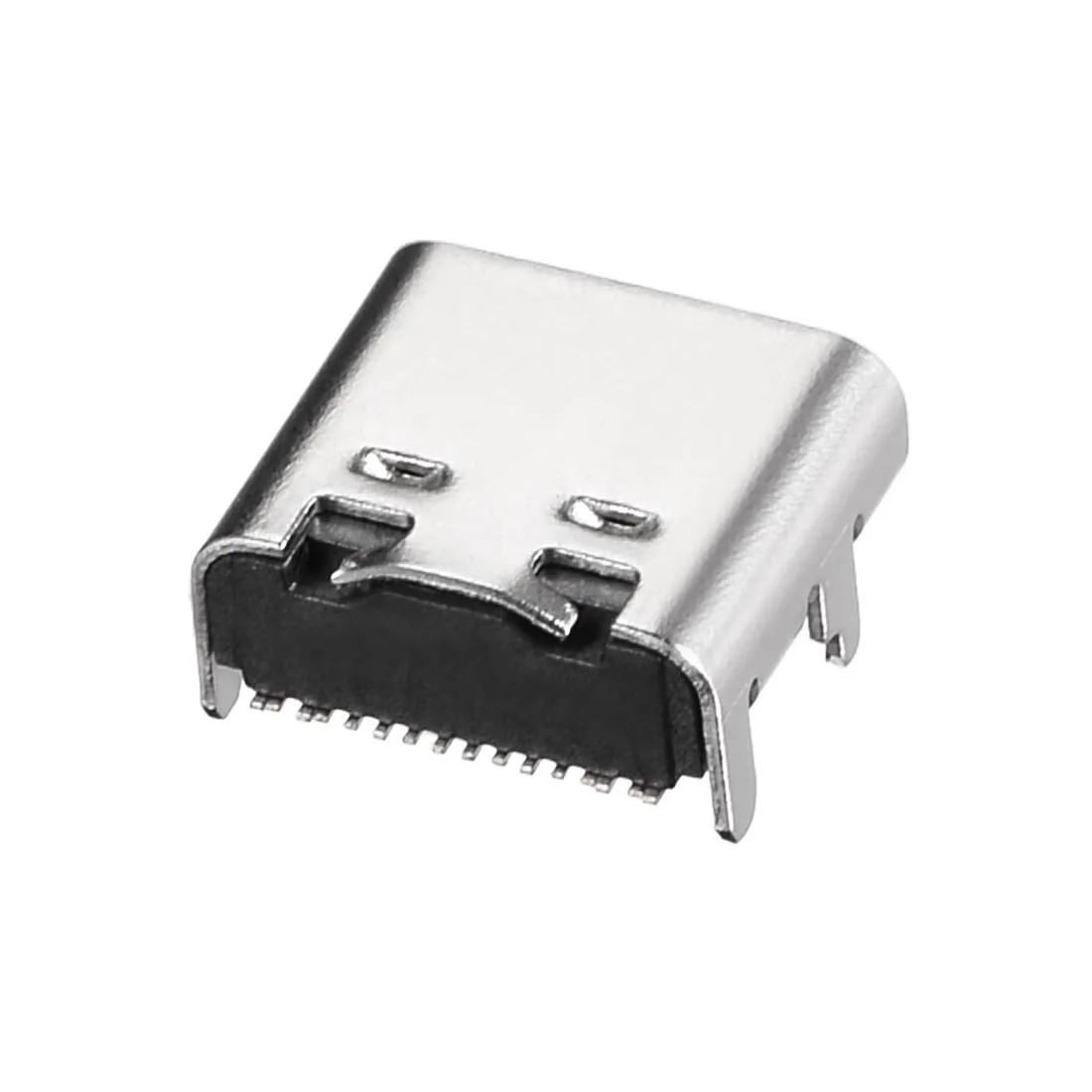

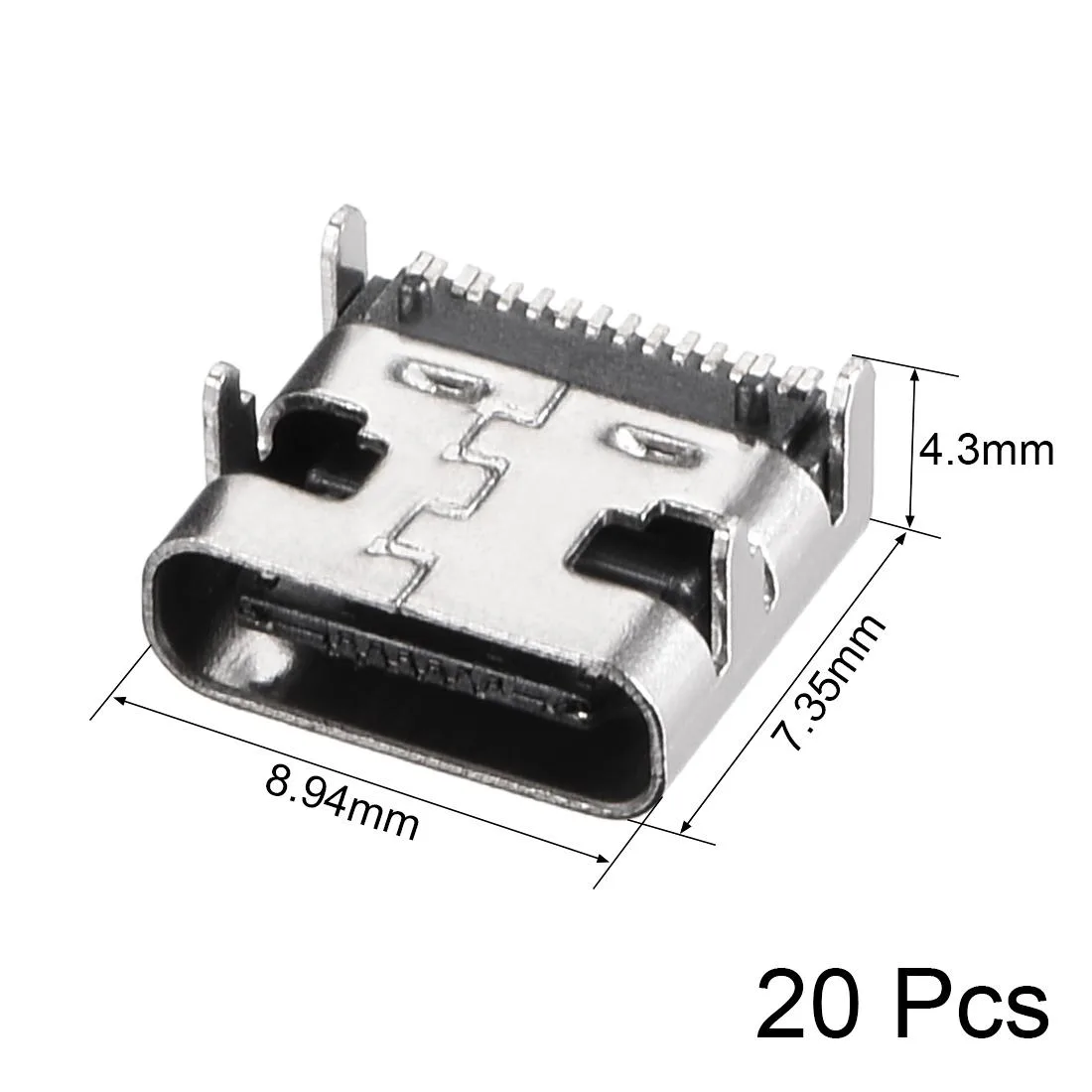

This pack contains twenty surface-mount USB-C 3.1 female jacks designed for printed-circuit-board assembly. Each connector carries sixteen pins on a 0.5 mm pitch and measures 7.35 x 8.94 x 4.3 mm. The parts arrive new and ready for hand or reflow soldering.

Sixteen-pin layout with four mounting feet

Rated at 30 V and 3 A, the copper contacts suit fast-charging and data links for compact devices such as phones, cameras or portable drives. Four mounting feet spaced 8.64 mm apart add mechanical strength, but the 0.5 mm pin pitch demands precise stencil work and magnification. Builders without fine-pitch soldering gear will find these impractical.

0.5 mm pin pitch decides fit

The critical specification is the 0.5 mm distance between adjacent pins. It dictates the PCB footprint, stencil aperture and inspection method. Verify that your design rules and assembly capability match this pitch before ordering.

Highlights

  • 16-pin USB-C 3.1 connector supports fast charging up to 30 V 3 A
  • 5 mm pin pitch enables dense PCB layouts for compact DIY projects
  • 35 × 8.94 × 4.3 mm footprint fits tight enclosures in portable gadgets
  • Four mounting feet spaced 8.64 mm apart give secure solder joints on custom boards
  • Pack of 20 silver-tone connectors covers multiple builds or prototype iterations

Specifications

BrandUnique Bargains
TypeGadgets

Questions about this item

Will the 0.5 mm pin spacing on these 16-pin USB-C 3.1 sockets match the footprint of an older USB-A board I am reusing?

The connectors use a 0.5 mm pin pitch and four mounting feet spaced 8.64 mm apart; compare those dimensions with your existing board layout to confirm alignment.

After soldering the 7.35 mm × 8.94 mm × 4.3 mm jack, how can I verify it is functioning correctly?

Apply 30 V at up to 3 A through the copper contacts and confirm enumeration and fast-charging negotiation on a connected device.

The pack lists 20 pieces — does it include any mounting hardware or cable pigtails?

The package contains only the 20 PCB USB-C 3.1 16-pin female jacks; screws, standoffs or cables must be sourced separately.
