Unique-Bargains Spring Loaded Latch Pin 6.5" Iron Deadbolt Latch
Spring-loaded iron latch with 12 mm bolt and 90-degree rotation suits doors, windows, cupboards and sheds
- TypeDeadbolt Latches
- Electroplated iron resists wear and fading for long service life
- 12 mm bolt diameter secures doors firmly with sturdy barrel design
- Spring-loaded pins let you pull and rotate 90 degrees to open easily

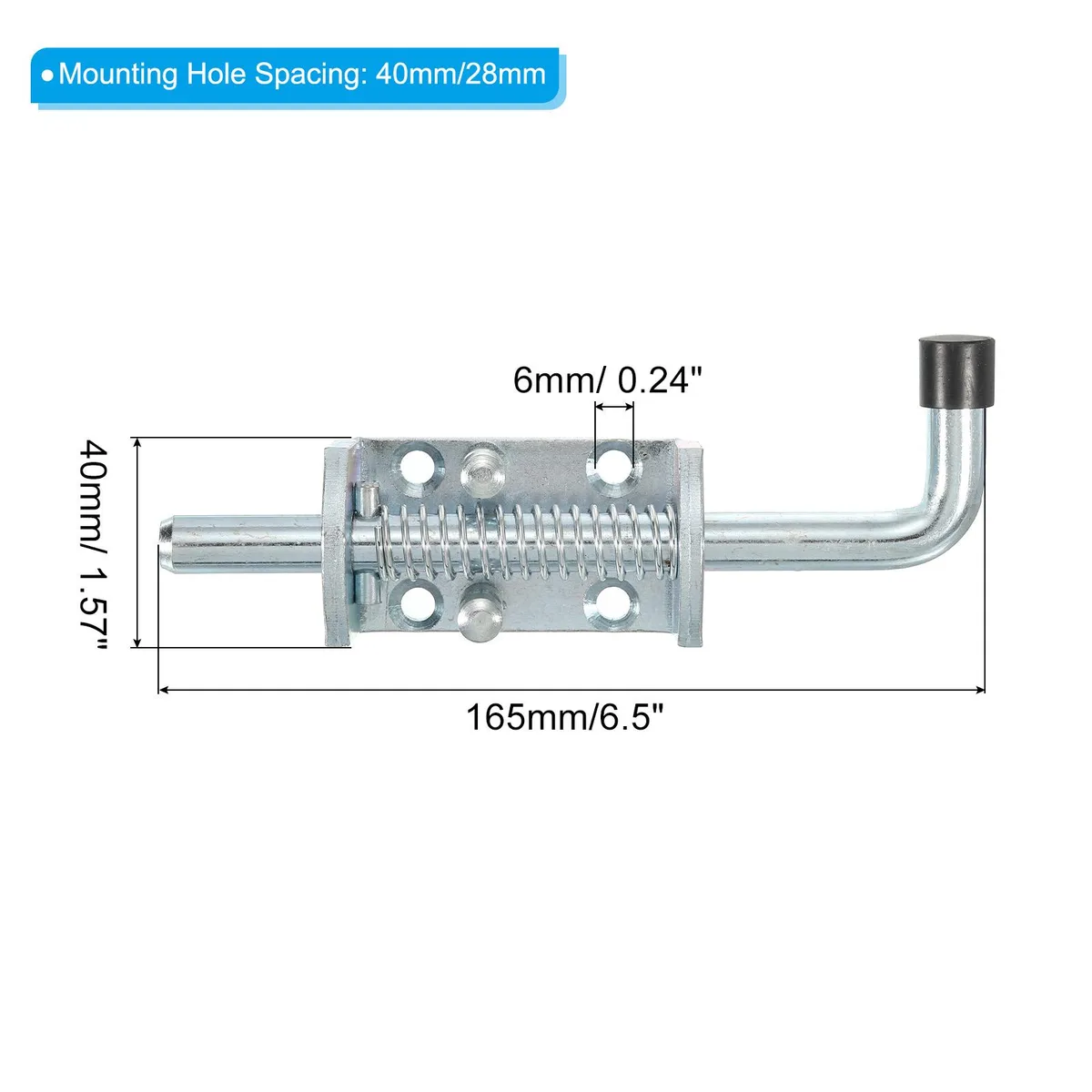

- Mounting holes spaced 40 mm and 28 mm allow vertical or horizontal fitting
- Suits doors, windows, cupboards, sheds and bathrooms for quiet locking
6.5 Inch Iron Deadbolt Latch

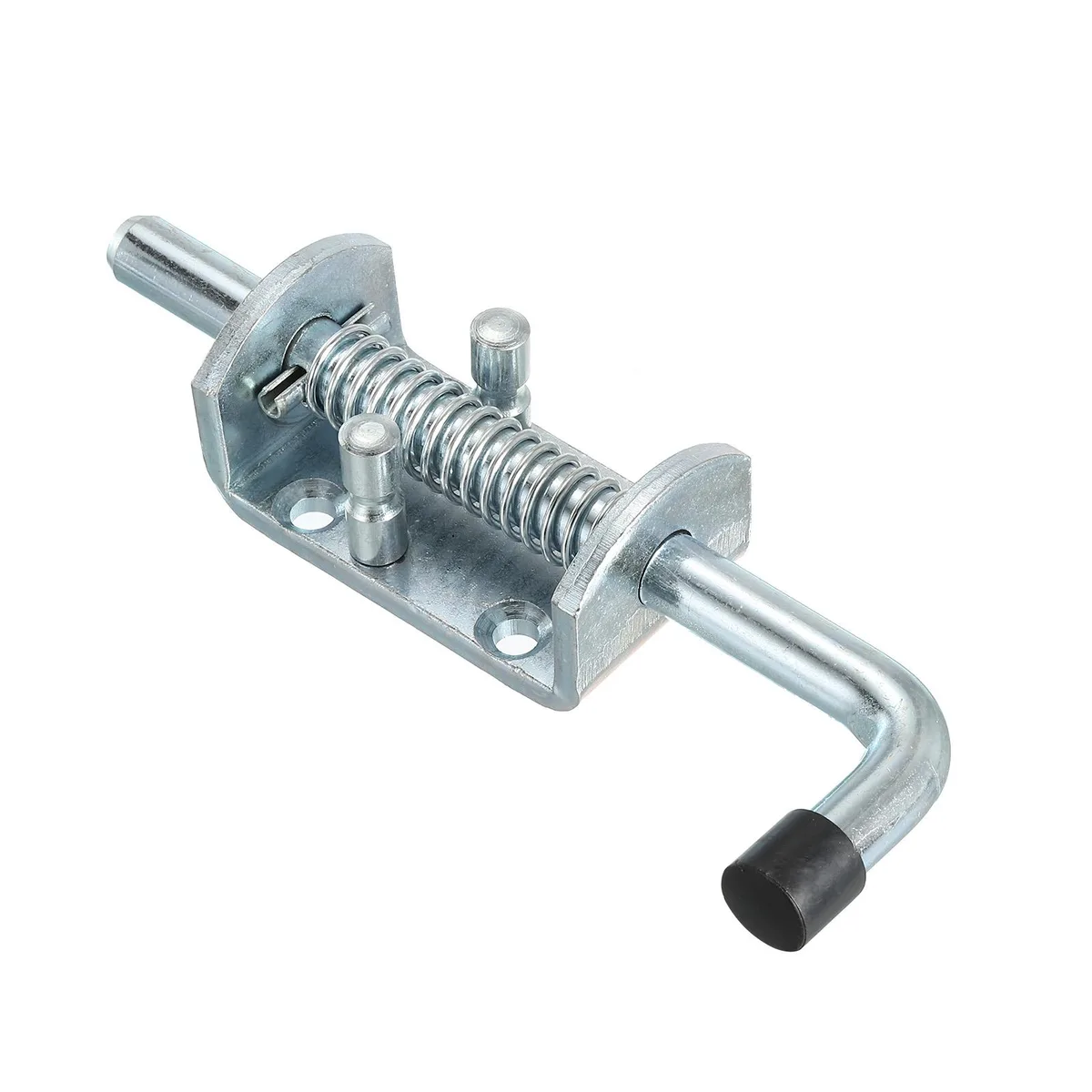

The Unique-Bargains spring loaded latch pin is a surface-mounted barrel bolt made of electroplated iron with a silver tone finish. It suits doors, windows, cupboards, sheds and internal rooms where a simple mechanical lock is required. The 12 mm diameter bolt slides into a matching keep to hold the leaf firmly closed.
Two Pin Operation and Screw Supply
Pulling the bolt back and rotating it 90 degrees engages the twin pins to hold the latch open, allowing the door to swing free. The mechanism works in both vertical and horizontal orientations, so gate and window installations are equally straightforward. Mounting holes are 6 mm wide with 40 mm and 28 mm spacing, but screws are not included in the pack.
Surface Mount Limits and Alignment
Because the latch sits on the face of the frame, the door or gate must close flush against the strike for the bolt to engage fully. Misaligned hinges or warped leaves will prevent the 12 mm bolt from entering the keep, leaving the opening unsecured. The 165 mm overall length also demands sufficient flat surface on both the moving leaf and the fixed frame.
Highlights
- Electroplated iron resists wear and fading for long service life
- 12 mm bolt diameter secures doors firmly with sturdy barrel design
- Spring-loaded pins let you pull and rotate 90 degrees to open easily
- Mounting holes spaced 40 mm and 28 mm allow vertical or horizontal fitting
- Suits doors, windows, cupboards, sheds and bathrooms for quiet locking
Specifications
| Brand | Unique Bargains |
|---|---|
| Type | Deadbolt Latches |
Questions about this item
How do I confirm the spring loaded latch pin moves smoothly after installing it on my gate?
Pull the bolt out and rotate it 90 degrees until it stops at the two pins; the latch should hold the door firmly closed in both vertical and horizontal positions.
What comes in the package and which fasteners must I supply myself?
The box contains one spring loaded latch; screws are not included, so you will need to provide your own mounting screws for the 6 mm holes spaced 40 mm and 28 mm apart.
Which size should I choose for a standard shed door?
This model measures 165 mm by 40 mm overall with a 12 mm bolt diameter and 6 mm mounting holes, matching the single version listed.
