Unique-Bargains Push Plunger Lock 19mm 40mm Keyed Alike

Push Plunger Lock 19 mm 40 mm Keyed Alike

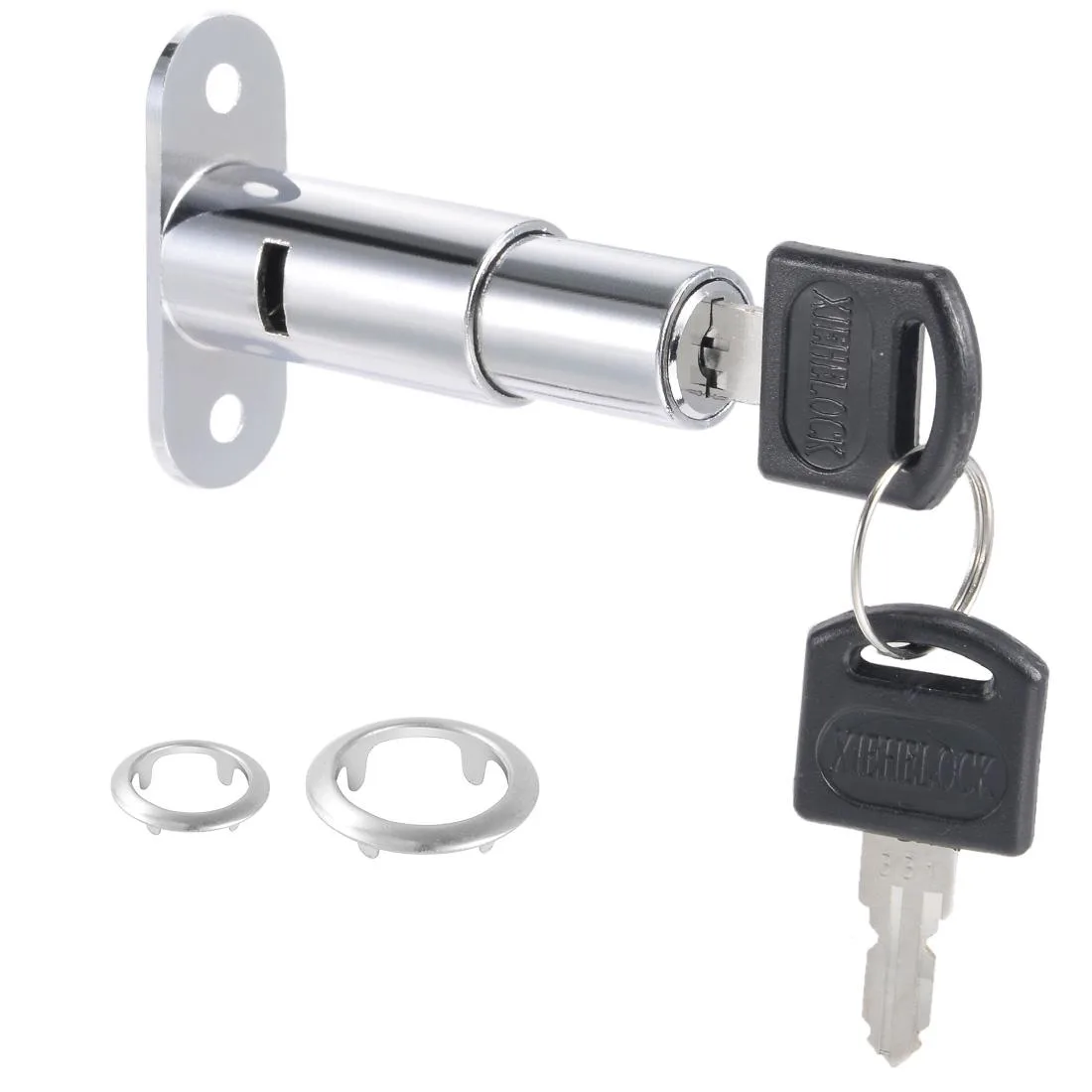

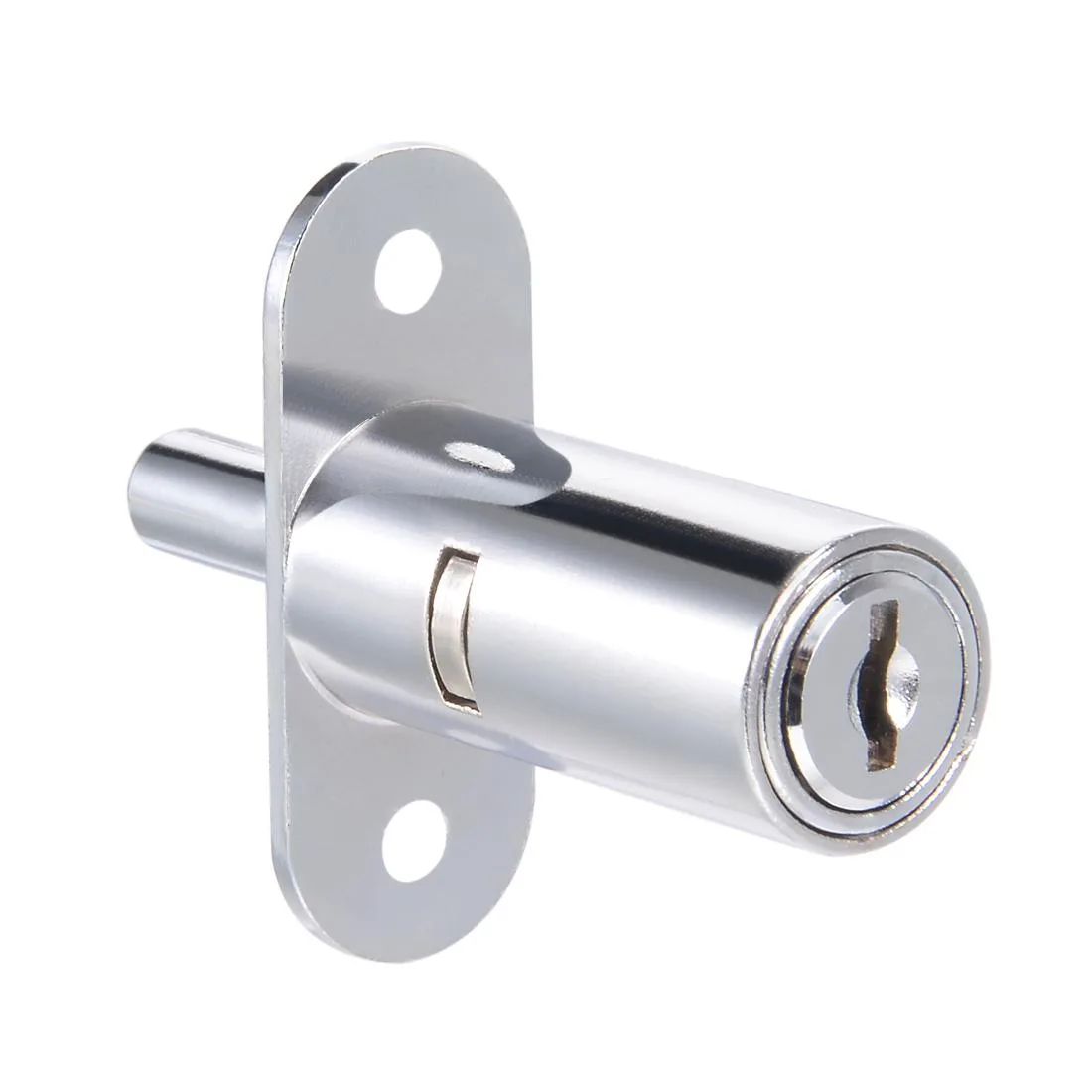

This spring-loaded push plunger lock uses a 19 mm cylinder diameter and 40 mm cylinder length. It is keyed alike so every unit in the set works with the same two keys supplied. The zinc alloy body with chrome finish resists wear and rust. It suits cabinets, drawers and display cases where a simple push-to-lock action is preferred.

Check mounting holes and door thickness

Verify that your door or panel can accept a 5 mm mounting hole diameter with holes spaced 35 mm centre-to-centre. The plunger pin measures 8 mm in diameter and extends 21.5 mm, so the material thickness must allow full engagement. Mounting screws are not included, so source appropriate fasteners separately. Confirm the 64 mm by 50 mm overall footprint fits the available surface area.

Fits surface-mount cabinet and drawer builds

The lock installs with two screws through the 5 mm holes and requires no mortising, leaving the interior face clear for shelves or hardware. Key retaining allows the key to be removed in both locked and unlocked positions, freeing the key for other tasks. The compact 64 mm by 50 mm body keeps the profile low on thin panels while the 40 mm cylinder provides sufficient reach through standard cabinet walls.
