Compact brass solenoid valve G1/2 male thread with filter, 53x50x24mm, 170mm wires

Unique-Bargains

Unique-Bargains Pulse Solenoid Valve G1/2 DC3.6V Male Thread with Filter

SKU CH-MJX8-XX2FT

DC3.6V pulse solenoid valve with G1/2 male thread, built-in filter, 170mm leads and 0.02–1.0MPa working range

  • Electromagnetically controls fluids with a pulse solenoid mechanism
  • Operates on low DC3.6V power for energy-efficient fluid management
  • G1/2 male thread enables direct piping integration
  • Built-in filter prevents impurities from blocking valve operation
  • Handles working pressures from 0.02 to 1.0MPa for versatile applications

Pulse Solenoid Valve G1/2 DC3.6V

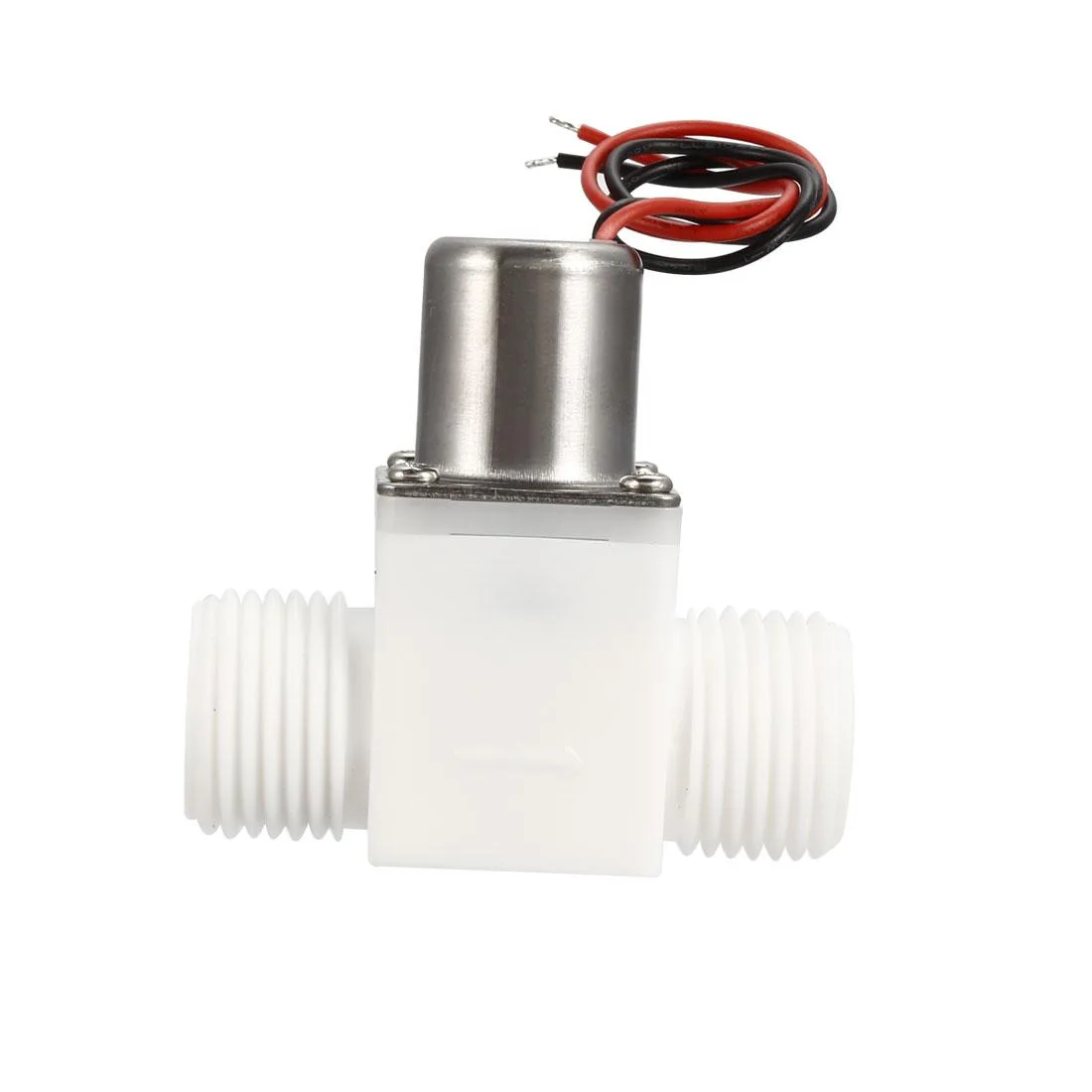

This Unique-Bargains pulse solenoid valve is an electromechanical component that controls fluid flow using positive and negative electrical pulses. It operates at DC3.6V and features a G1/2 male thread connection for direct pipe installation.

Suits low-pressure fluid automation needing pulse

The valve works with a pressure range of .02-1.0MPa and unidirectional flow following the body arrow. It is not for buyers who need bidirectional flow, higher voltage coils, or a different thread standard than G1/2.

Fits horizontal pipe runs

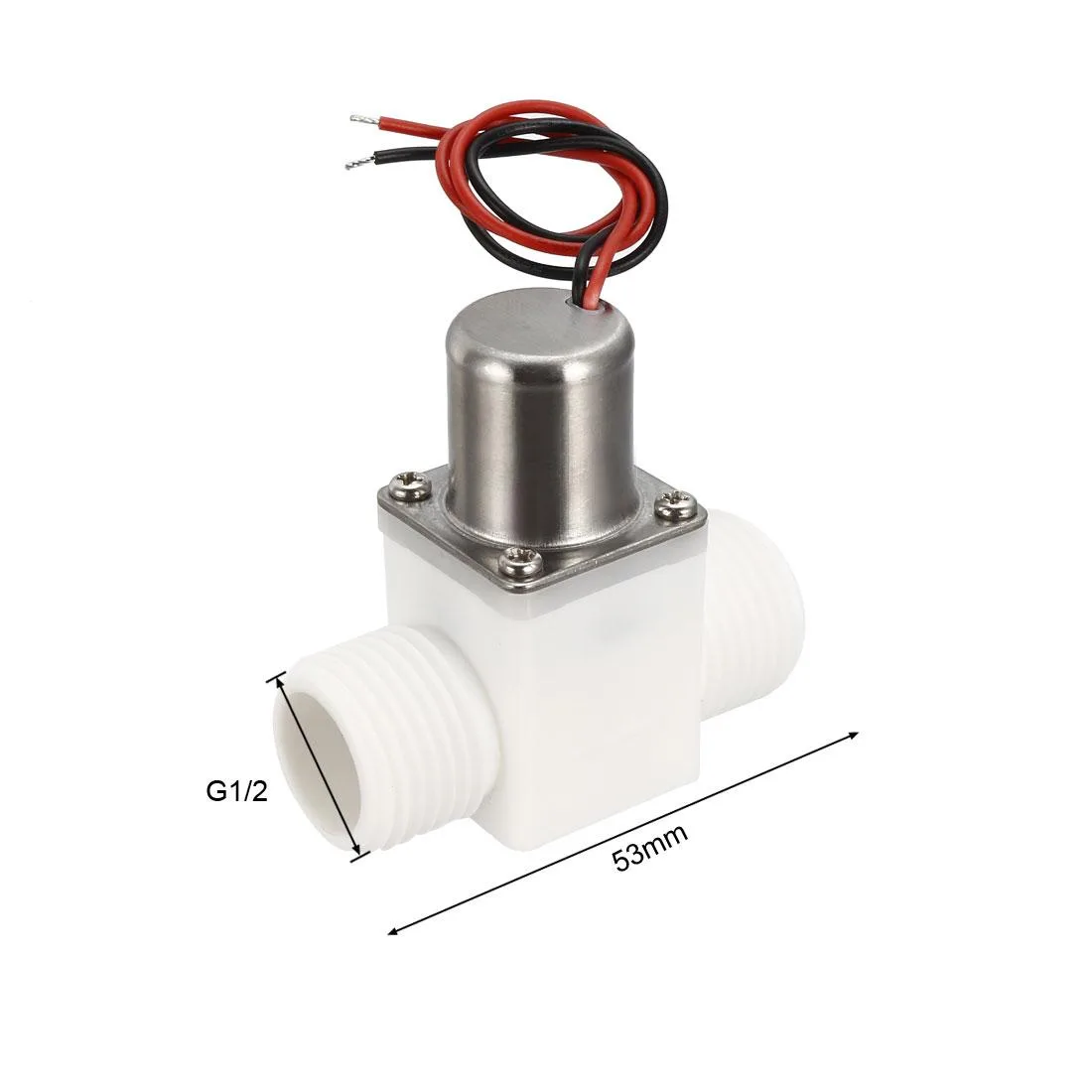

Installation requires the coil to stay vertical in a horizontal pipeline with flow matching the arrow direction. A filter screen at the inlet prevents debris from jamming the movable core and seal. The 170mm wires connect to a DC3.6V pulse source. Total dimensions are 53mm x 50mm x 24mm.

Highlights

  • Electromagnetically controls fluids with a pulse solenoid mechanism
  • Operates on low DC3.6V power for energy-efficient fluid management
  • G1/2 male thread enables direct piping integration
  • Built-in filter prevents impurities from blocking valve operation
  • Handles working pressures from 0.02 to 1.0MPa for versatile applications

Specifications

BrandUnique Bargains

Questions about this item

What voltage supply must I already have to operate the DC3.6V solenoid coil?

A stable 3.6 V DC source is required; the coil is rated for exactly that voltage and will not function correctly on higher or lower supplies.

Can the G1/2 male thread connect directly to my existing 1/2-inch BSP piping?

Yes, the G1/2 thread follows the British Standard Pipe parallel standard, so it mates with standard 1/2-inch BSP female fittings without adapters.

How can I verify the valve opens and closes properly after wiring it up?

Apply a positive pulse to the coil and confirm fluid flows in the arrow direction; then apply a negative pulse and verify flow stops completely.
