Unique-Bargains PCB USB Type-A Dual Port Female Jack 8P Vertical 180 Degree 5pcs

DIY USB Dual-Port Connector Pack

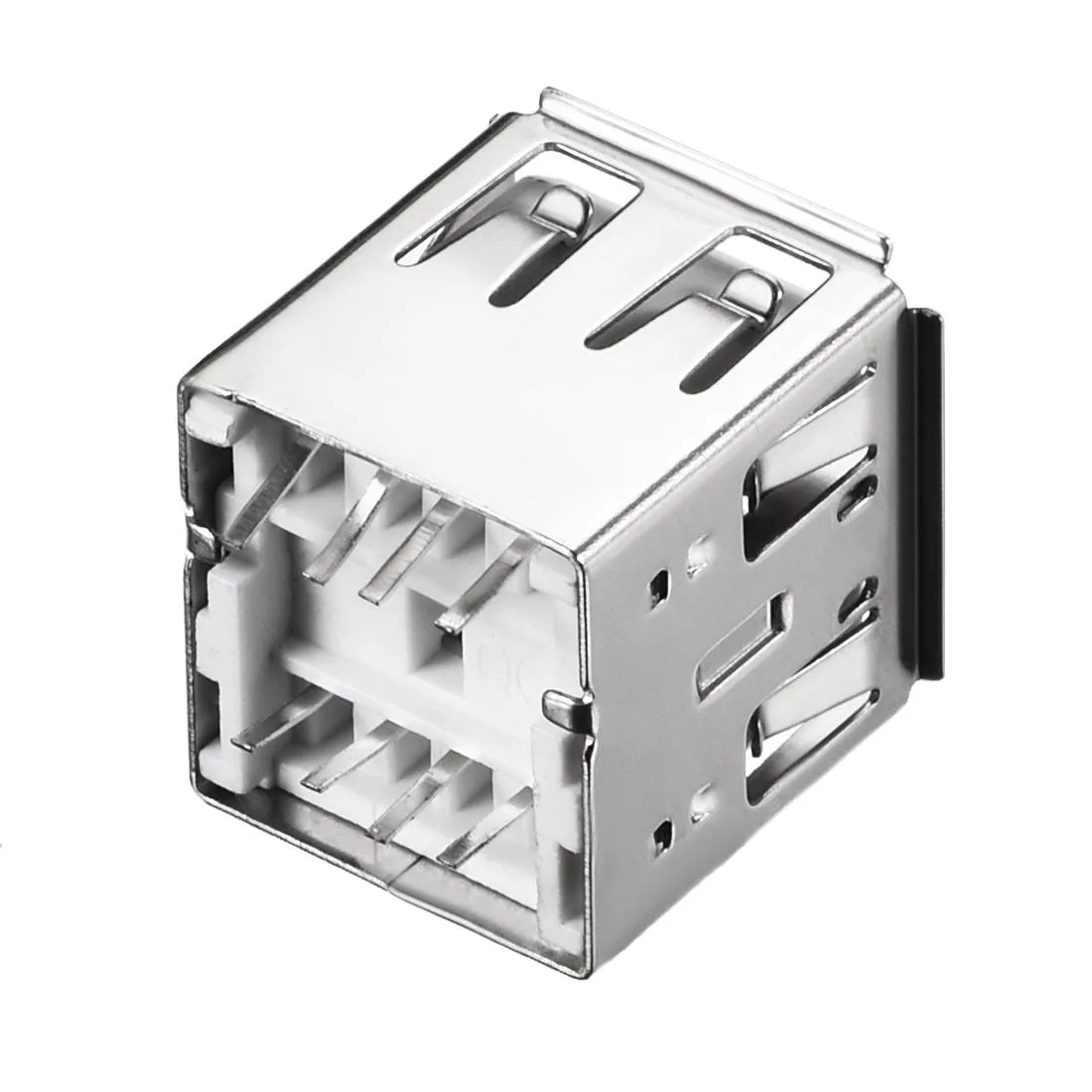

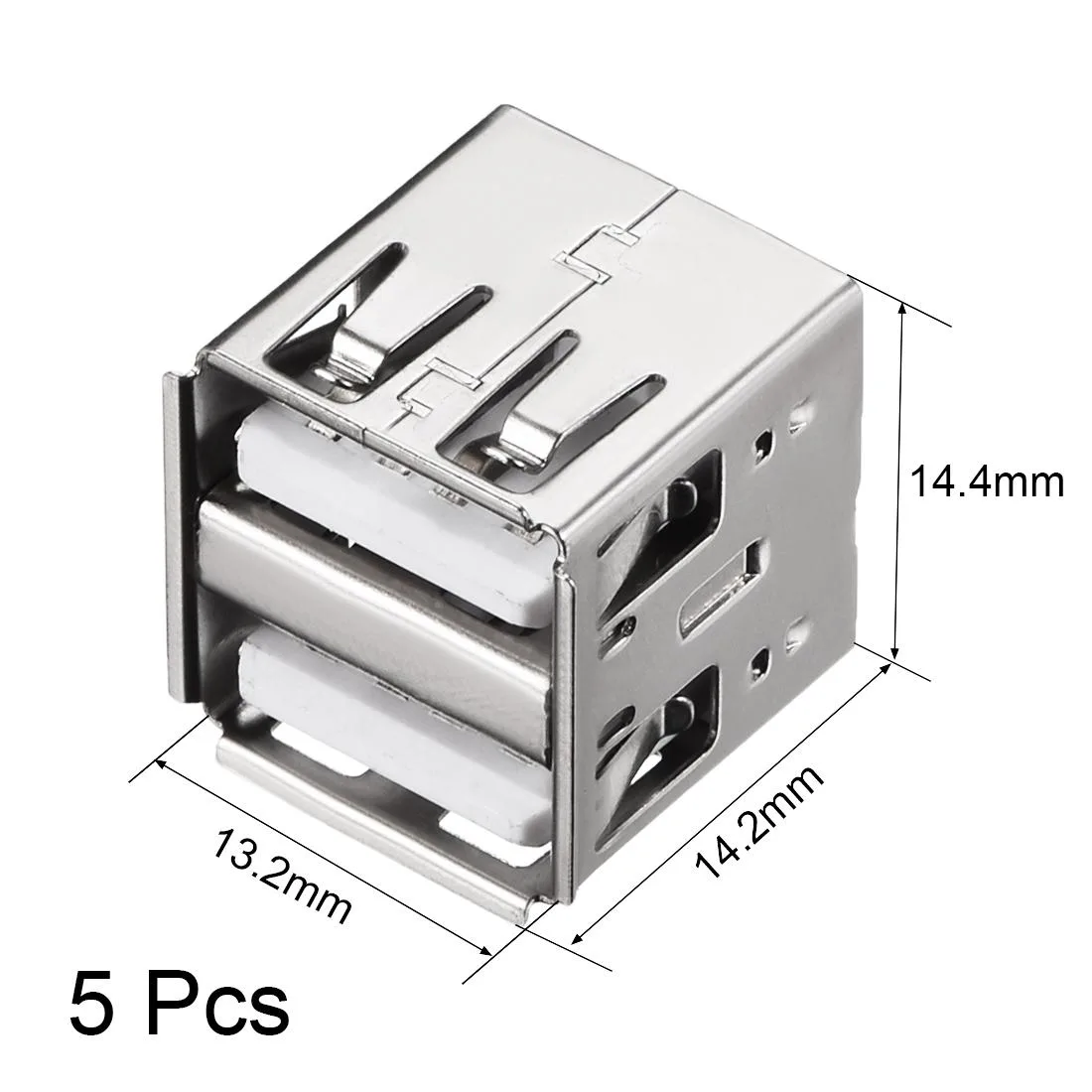

This pack supplies five vertical PCB-mount USB Type-A dual-port connectors rated at 30 V and 1.5 A. Each unit presents two female jacks in an 8-pin layout with 2 mm pin spacing. The silver-tone and white housings measure 14.2 x 13.2 x 14.4 mm and are intended for hobbyist or repair projects. Builders adding custom USB ports to enclosures or prototype boards will find the parts ready to solder.

Capacity and Headroom for Prototyping

The 1.5 A current rating per connector supports standard low-power peripherals such as keyboards, mice or flash drives. It will not sustain higher-draw devices like bus-powered hard drives or fast-charging phones. The 30 V voltage ceiling covers typical USB signalling but leaves no margin for non-standard power schemes. Designers needing more current or a different pin count must source alternative components.

Build Quality and Mounting Implications

Copper contacts and a through-hole vertical orientation give a solid mechanical joint once soldered to a 2 mm pitch footprint. The 180-degree stance keeps cables protruding perpendicular to the board, which suits panel-mount brackets or stacked daughter-boards. No retention clips or shielding tabs are included, so strain relief must be planned in the enclosure design. Buyers expecting surface-mount footprints or right-angle variants will need a different part.
