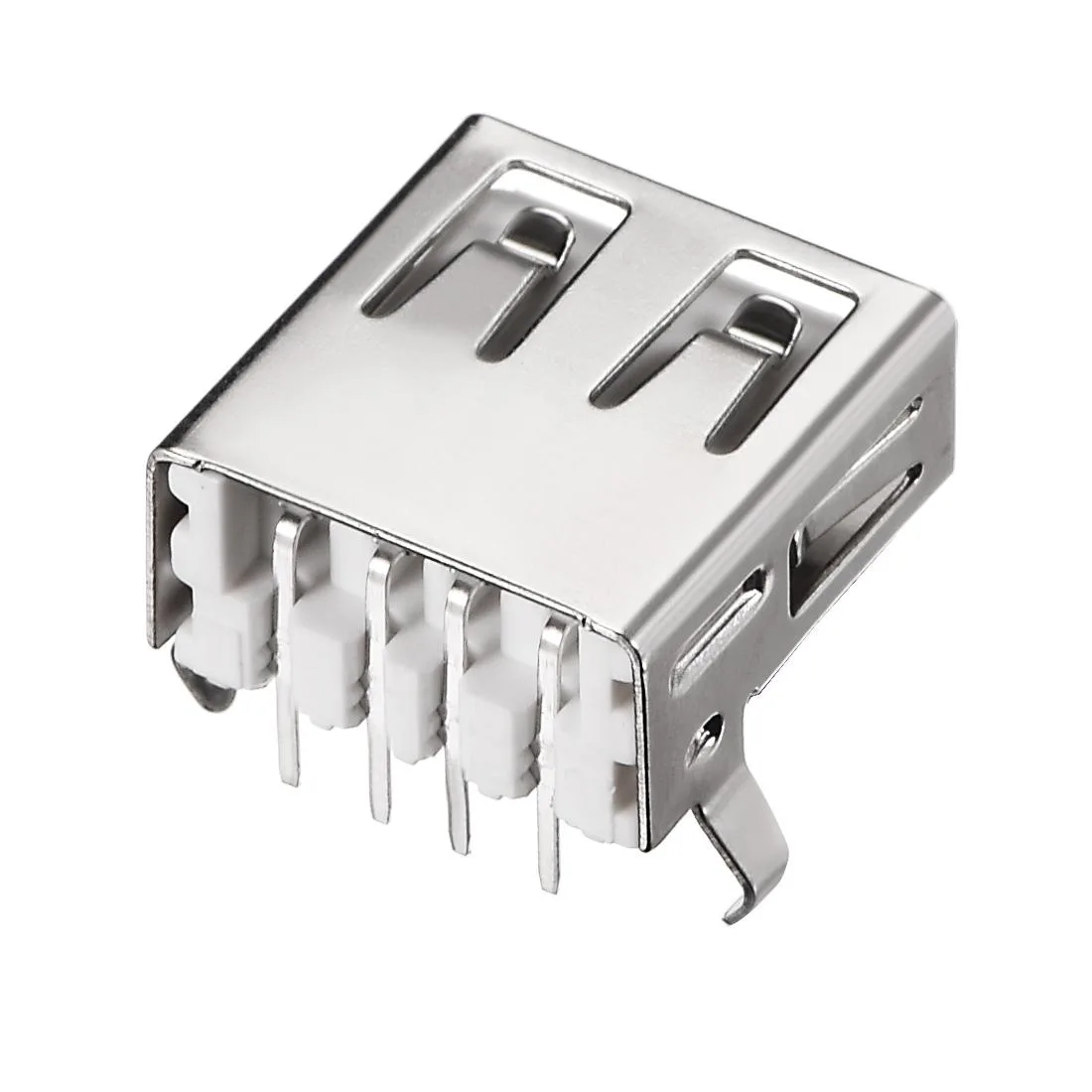

Five silver-tone USB-A right-angle PCB connectors on white board

Unique-Bargains

Unique-Bargains PCB USB 2.0 Type-A Female 90° Solder 5pcs

SKU CH-MVVS-53SFG

A pack of five 90-degree USB 2.0 Type-A female PCB connectors rated 30 V and 0.5 A with 2 mm pin spacing

  • TypeGadgets
  • Right-angle design fits tight spaces
  • USB 2.0 Type-A female jack for standard plugs
  • 4 pins on 2 mm pitch simplify PCB layout
  • Rated 30 V and .5 A for low-power devices
  • Pack of five connectors ready for soldering

Right-angle USB 2.0 Type-A connectors for DIY

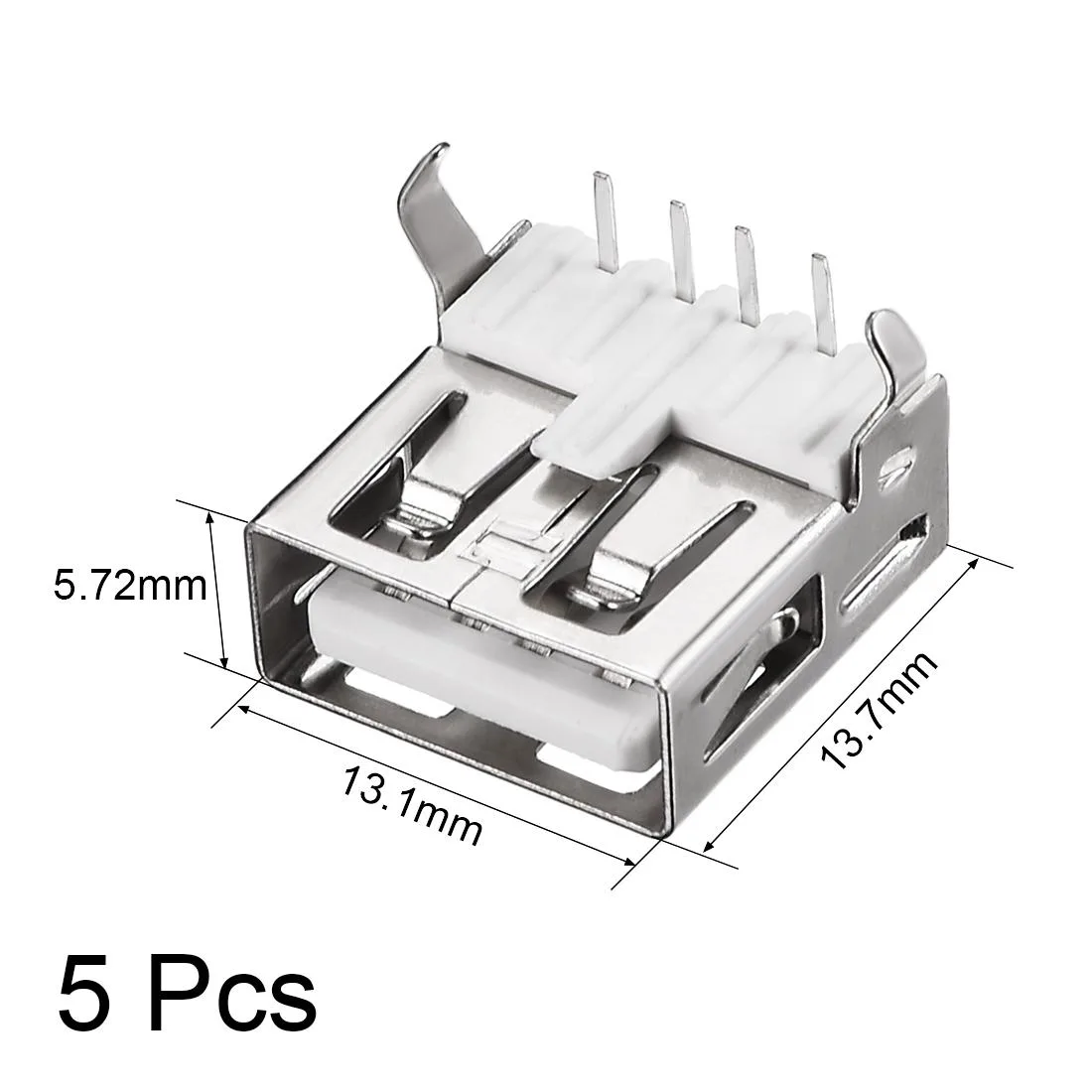

This pack contains five PCB-mount USB 2.0 Type-A female jacks with a 90-degree solder foot. Each connector has four pins spaced 2 mm apart and measures 13.7 x 13.1 x 5.72 mm. The contacts are copper and rated for 30 V at 0.5 A.

Replaces worn or missing board-level USB ports

The right-angle profile suits tight enclosures where a vertical jack will not fit. It upgrades loose cable connections to a permanent soldered joint on custom boards or repair jobs. The jump is worth it when a device needs a low-profile, board-level USB 2.0 interface.

Through-hole soldering requires basic iron skills

Pins must align with a 2 mm pitch footprint; misalignment is the most common fault. Excess heat can lift pads or melt the white plastic insulator. Flux and a fine tip help avoid bridges between the four closely spaced pins.

Highlights

  • Right-angle design fits tight spaces
  • USB 2.0 Type-A female jack for standard plugs
  • 4 pins on 2 mm pitch simplify PCB layout
  • Rated 30 V and .5 A for low-power devices
  • Pack of five connectors ready for soldering

Specifications

BrandUnique Bargains
TypeGadgets

Questions about this item

Will the 13.7 mm by 13.1 mm footprint fit my board layout?

The connector body measures 13.7 mm long by 13.1 mm wide, so check your PCB keep-out zone against those dimensions before ordering.

What is the correct orientation for the 90° bend-foot pins during soldering?

Align the four pins on the 2 mm pitch so the USB-A port faces the board edge, then solder each pin to its pad without bridging.

How many mating cycles can the copper contacts handle before replacement?

The copper contacts are rated for standard USB 2.0 durability; replace a unit if the port feels loose or data errors appear.
