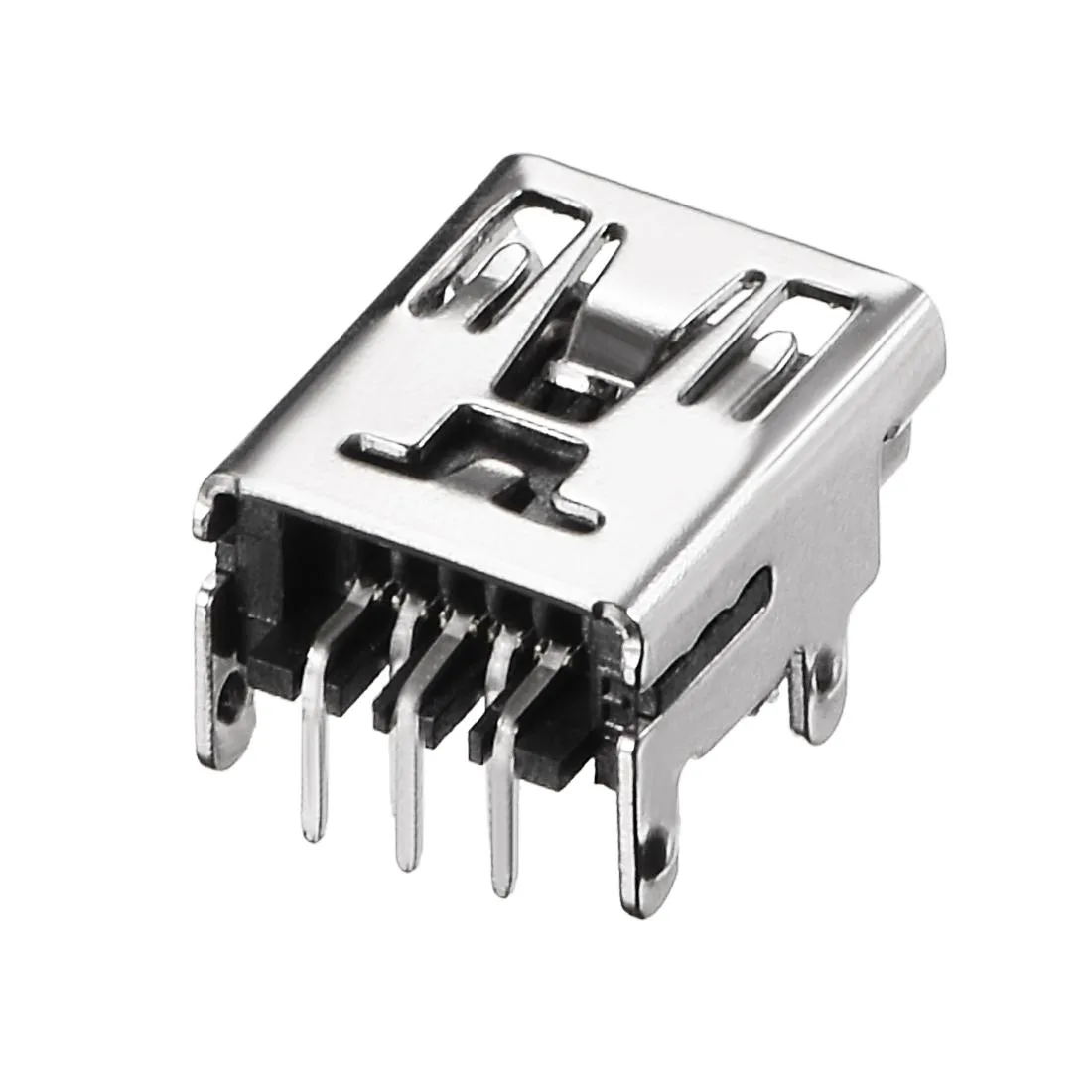

Five silver mini USB PCB connectors with black inserts and four mounting feet each

Unique-Bargains

Unique-Bargains Mini USB PCB Connector 5P Female 90° 4-Foot 5pcs

SKU CH-ZAYT-7MZ7J

Five-pack of right-angle mini USB PCB connectors with four mounting feet, 1.4 mm pin pitch and 30 V, 1 A rating

  • TypeGadgets
  • Five-pack supports multiple DIY builds
  • 90-degree angle suits tight board layouts
  • Four mounting feet give stable PCB attachment
  • 4 mm pin pitch matches mini USB standard
  • Rated 30 V and 1 A for low-power devices

Mini USB PCB Connector Pack

Five 90-degree Mini USB female connectors mount directly onto a printed circuit board with four through-hole feet. Each jack accepts a standard Mini USB plug and is rated for 30 V and 1 A. The copper contacts and silver-tone housing suit hobbyist prototypes, repair jobs or small production runs.

Four-foot through-hole mounting

Pin spacing of 1.4 mm matches common Mini USB footprints and the 8.2 mm foot pitch aligns with standard pad layouts. The right-angle body keeps the cable exit parallel to the board surface saving vertical clearance inside tight enclosures. No surface-mount equipment is required for assembly.

Sustained 1 A power delivery

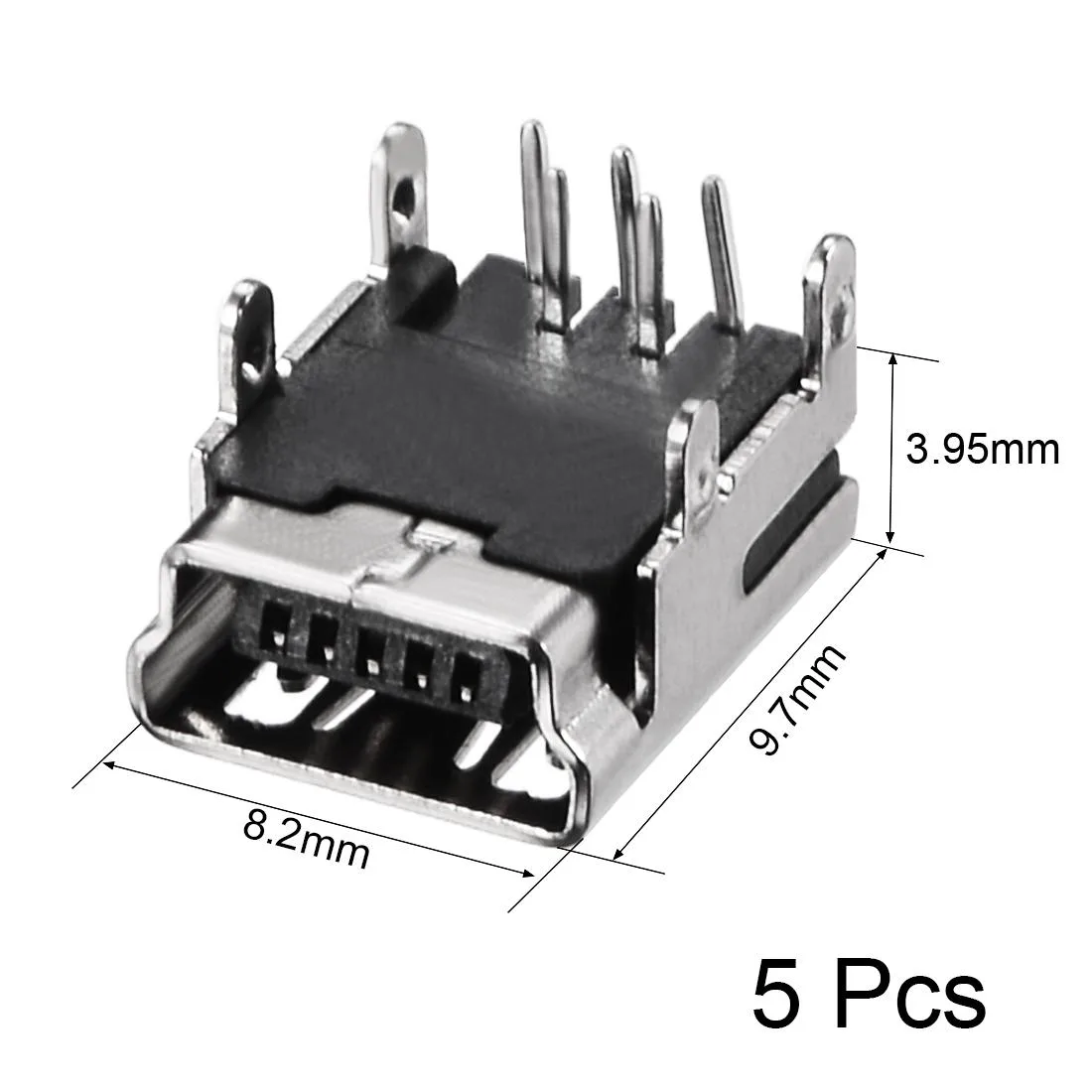

Copper contacts maintain the rated 1 A continuously without the derating seen in brief peak specifications. The 30 V ceiling covers typical 5 V USB power and many low-voltage signalling scenarios. The compact 9.7 x 8.2 x 3.95 mm body fits dense layouts where taller connectors would foul adjacent components.

Highlights

  • Five-pack supports multiple DIY builds
  • 90-degree angle suits tight board layouts
  • Four mounting feet give stable PCB attachment
  • 4 mm pin pitch matches mini USB standard
  • Rated 30 V and 1 A for low-power devices

Specifications

BrandUnique Bargains
TypeGadgets

Questions about this item

How much current can the 5-pin Mini USB connector handle before it overheats?

The copper contacts are rated for 1 A at 30 V, so sustained loads above 1 A will cause heating.

Does the connector get hot during continuous all-day operation at its rated load?

At the rated 1 A the contacts stay within specification; no extra cooling is needed for typical DIY use.

What board layout is required for the four mounting feet to solder correctly?

The feet sit on an 8.2 mm pitch matching the 9.7 × 8.2 mm body, so design the PCB footprint to that spacing.
