Black nylon 90-degree M20 cable gland with locknut, IP68 rated for 9-14mm cables, two pieces

Unique-Bargains

Unique-Bargains M20 Cable Gland 90° IP68 Nylon 9-14mm 2 Pcs

SKU CH-96R4-CZB84

Right-angle M20 cable gland seals 9 mm to 14 mm wires with IP68 waterproof rating, includes locknut and washer, two pieces

  • TypeCable Connectors
  • IP68 rating blocks water and dust ingress
  • 90° elbow design routes cables in tight spaces
  • Adjustable locknut secures 9 mm to 14 mm cables
  • Nylon and rubber construction withstands −40 °C to +100 °C static
  • Two glands included for multiple entry points

M20 Cable Gland 90° IP68

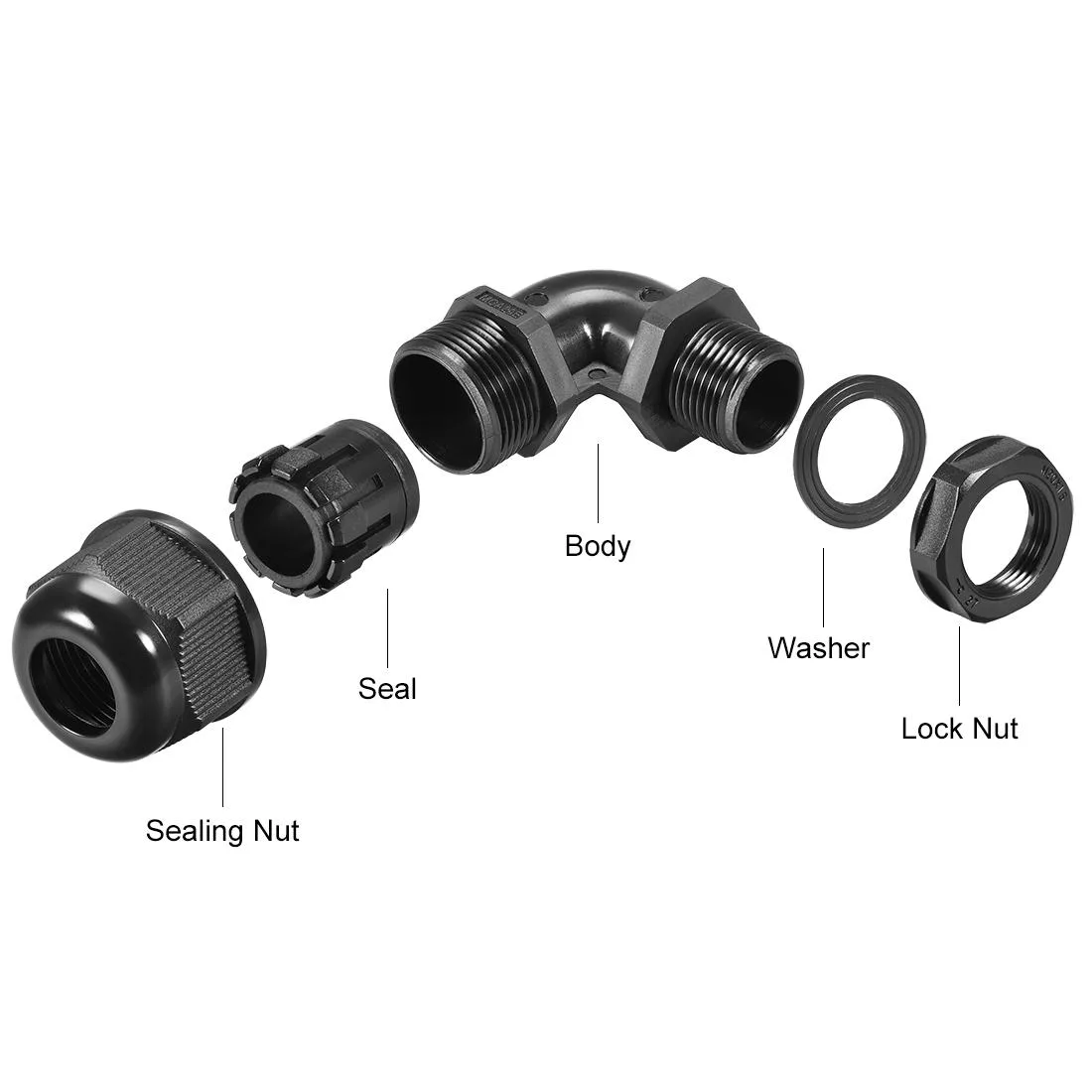

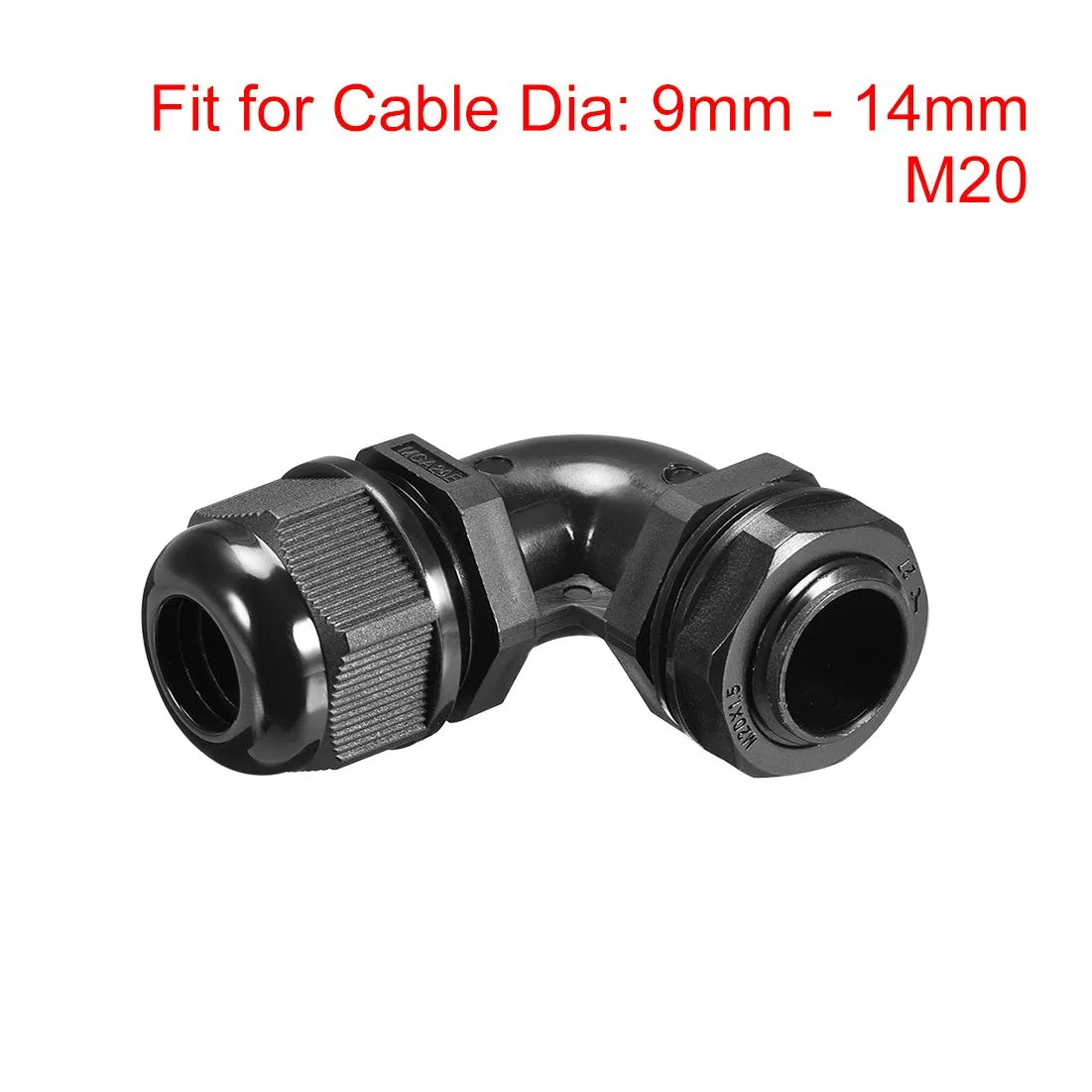

This pack contains two M20 cable glands made from nylon with rubber seals. They accept cables from 9 mm to 14 mm in diameter and carry an IP68 waterproof rating. The 90-degree elbow design routes cables at a right angle for tight enclosures. Each gland includes a locknut and washer for a complete seal.

Upgrade From Open Entries

These glands replace open knock-outs or basic bushings that let moisture and dust reach live terminals. The jump is worth it when an enclosure must stay sealed in wet, dusty or chemically exposed environments. Static temperature range spans -40 °C to +100 °C, while dynamic use covers -20 °C to +80 °C.

Simple Thread-In Install

Installation requires threading the 20 mm by 1.5 pitch body into a matching hole and tightening the supplied locknut. The 15 mm thread length suits standard panel thicknesses. Overtightening the compression nut can deform the seal, and omitting the washer leaves a leak path at the panel face.

Highlights

  • IP68 rating blocks water and dust ingress
  • 90° elbow design routes cables in tight spaces
  • Adjustable locknut secures 9 mm to 14 mm cables
  • Nylon and rubber construction withstands −40 °C to +100 °C static
  • Two glands included for multiple entry points

Specifications

BrandUnique Bargains
TypeCable Connectors

Questions about this item

What clearance is needed for the 90-degree body that measures 66 mm by 55 mm?

The gland’s overall footprint is 66 mm long by 55 mm wide, so allow at least that much space plus the 15 mm thread length behind the panel.

Which way does the locknut go on during installation?

Slide the locknut onto the cable first, then the gland body, tighten the gland into the 20 mm threaded hole, and finally secure the locknut against the enclosure wall.

At what temperature should the nylon gland be replaced if it sees continuous heat?

The material is rated for -40 °C to +100 °C in static use; sustained exposure above 100 °C will degrade the nylon and the seal should be replaced.
