Grey nylon M20 cable gland with two holes locknut and washer

Unique-Bargains

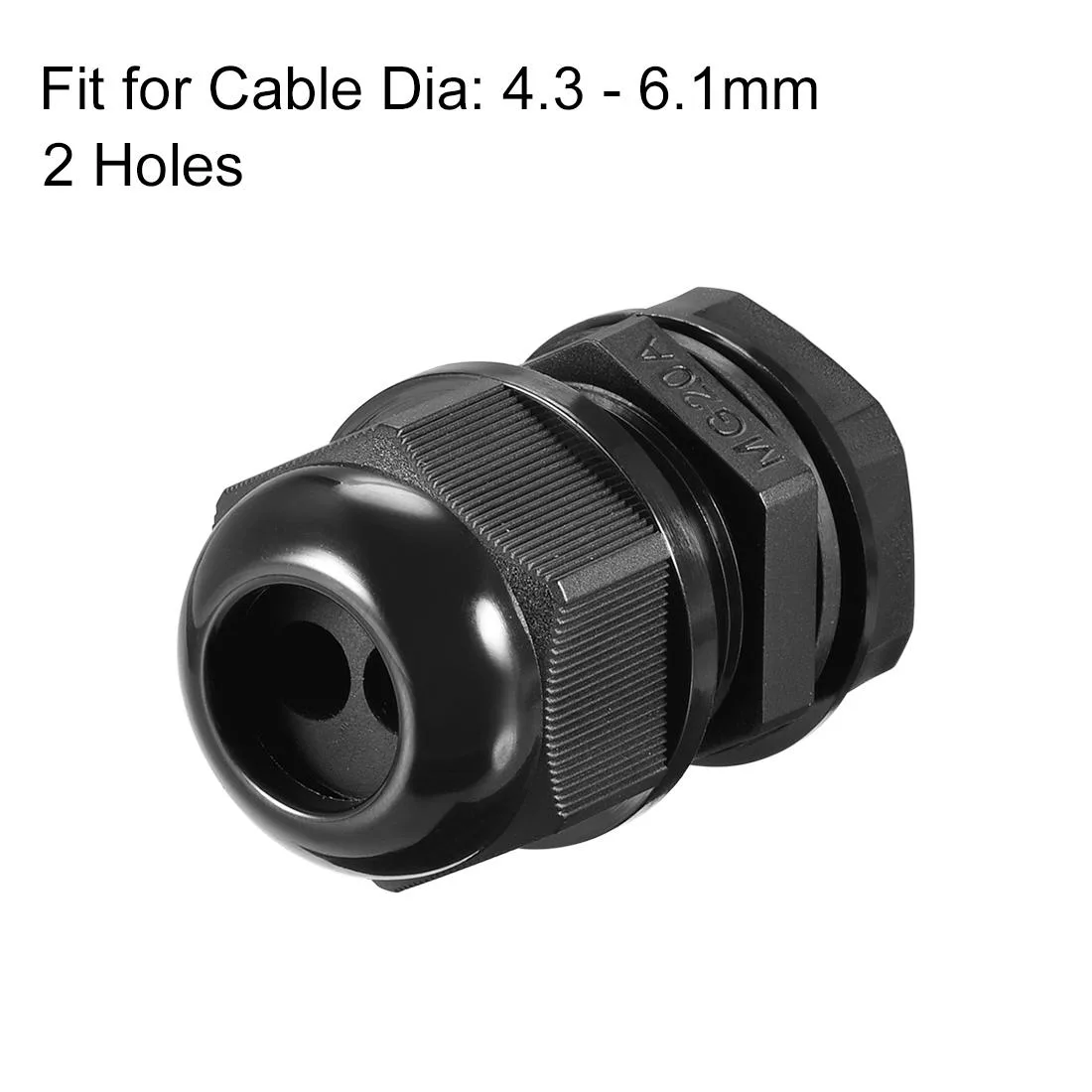

Unique-Bargains M20 Cable Gland 2 Holes IP68 Nylon Adjustable Locknut 4.3-6.1mm

SKU CH-QE7Y-QYGX1

Waterproof IP68 nylon cable gland with M20 thread accepts two 4.3–6.1 mm wires and includes locknut and washer

  • TypeCable Connectors
  • IP68 rating blocks water and dust ingress
  • Adjustable locknut secures 4.3-6.1mm cables
  • Nylon and rubber withstand -40°C to 100°C static
  • 15mm thread length fits standard M20 openings

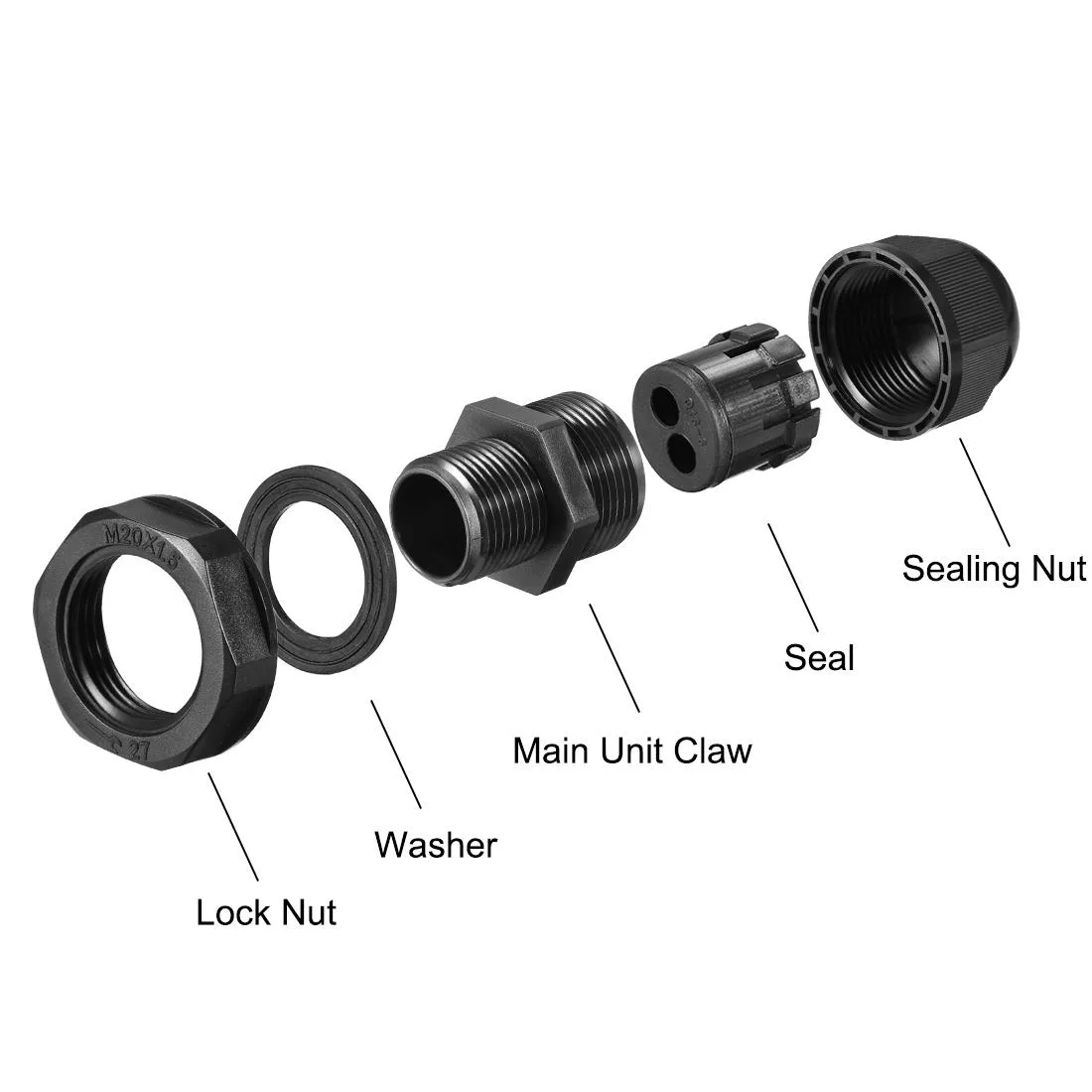

  • Includes locknut and washer for quick installation

M20 Cable Gland with Dual Entry

The Unique-Bargains M20 cable gland provides two separate entries for cables measuring 4.3 to 6.1 mm in diameter. It carries an IP68 rating for waterproof and dust-proof sealing in junction boxes and enclosures. The nylon and rubber construction resists acid and alcohol exposure. A locknut and washer are included for immediate mounting.

Suited for Dual-Cable Panel Entries

Installers running two sensor or power leads through a single 20 mm threaded hole will find this gland a direct fit. It is not intended for single-cable installations or for cables outside the 4.3 to 6.1 mm range. Buyers needing a different thread size or a higher hole count should select an alternative model.

Simple Thread-In Installation

The gland threads into a standard M20 by 1.5 pitch cut-out with 15 mm thread engagement and secures with the supplied locknut. Over-tightening the compression nut can deform the rubber seal and compromise the IP68 rating. Verify the panel cut-out diameter before starting to avoid cross-threading.

Highlights

  • IP68 rating blocks water and dust ingress
  • Adjustable locknut secures 4.3-6.1mm cables
  • Nylon and rubber withstand -40°C to 100°C static
  • 15mm thread length fits standard M20 openings
  • Includes locknut and washer for quick installation

Specifications

BrandUnique Bargains
TypeCable Connectors

Questions about this item

What size threaded opening do I need in my enclosure for the M20 thread on this gland?

You need a 20 mm clearance hole for the M20 × 1.5 thread, which is 15 mm long and includes the locknut and washer in the pack.

Can I run two separate cables rated for 80 °C dynamic service through the 4.3–6.1 mm holes without degrading the seal?

Yes, the gland accepts two cables from 4.3 to 6.1 mm diameter and is rated for dynamic temperatures up to 80 °C while maintaining its IP68 seal.

After tightening the locknut, how do I confirm the IP68 seal is actually holding on both cable entries?

Pressurise the enclosure or spray soapy water around each cable entry; no bubbles at the gland face or cable jackets means the IP68 seal is intact.
