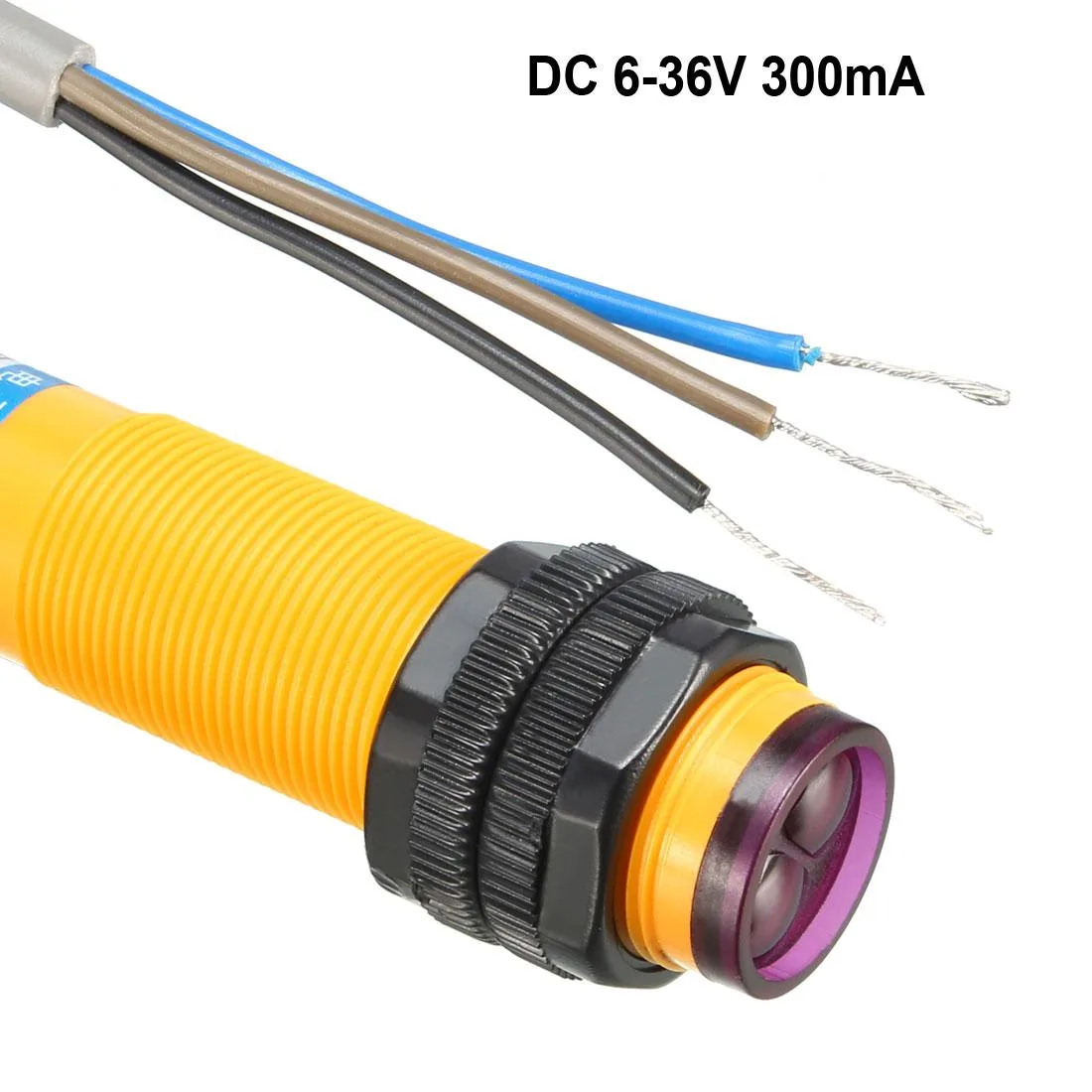

Cylindrical black and yellow plastic sensor, 17mm thread, one metre cable

Unique-Bargains

Unique-Bargains E3F-DS30P1 30cm PNP NO sensor DC 6-36V 300mA

SKU CH-K6R2-97KN4 MPN E3F-DS30P1

Detects objects within 30 cm using infrared light and provides a PNP normally-open output for 6–36 V DC systems

  • 30 cm sensing range with ±10 % tolerance for reliable object detection
  • DC 6-36 V wide supply voltage suits many control systems
  • PNP normally-open output simplifies wiring to PLC inputs
  • 17 mm threaded barrel allows quick panel or bracket mounting
  • Infrared diffuse reflection detects targets without separate reflector

Compact 30 cm diffuse sensor

The Unique-Bargains E3F-DS30P1 is a cylindrical photoelectric switch that detects objects up to 30 cm away using infrared diffuse reflection. It operates on a wide DC 6-36 V supply and provides a PNP normally-open output with a 300 mA load capacity, making it suitable for automation and security applications.

Mounts in a 17 mm thread with 1 m cable

The sensor body measures 23.3 mm in diameter by 69.4 mm long and fits a standard 17 mm mounting thread. A 1 m three-wire cable is permanently attached, so the installer only needs to provide a compatible DC power source and a PLC or relay input that accepts a PNP signal.

Includes only the switch itself

The package contains a single photoelectric switch in black and yellow plastic housing. No mounting brackets, reflectors, connectors or configuration software are supplied, so any additional hardware or programming must be sourced separately.

Highlights

  • 30 cm sensing range with ±10 % tolerance for reliable object detection
  • DC 6-36 V wide supply voltage suits many control systems
  • PNP normally-open output simplifies wiring to PLC inputs
  • 17 mm threaded barrel allows quick panel or bracket mounting
  • Infrared diffuse reflection detects targets without separate reflector

Specifications

BrandUnique Bargains

Questions about this item

What is the maximum sensing distance of the E3F-DS30P1 sensor?

The sensing distance is 30 cm with a tolerance of plus or minus 10 percent.

How much current does the sensor draw when operating continuously at 36 V?

The working current is rated at 300 mA across the full DC 6 to 36 V supply range.

What supply voltage must the existing system provide for this PNP NO output sensor?

The sensor requires a DC supply between 6 V and 36 V to operate correctly.
