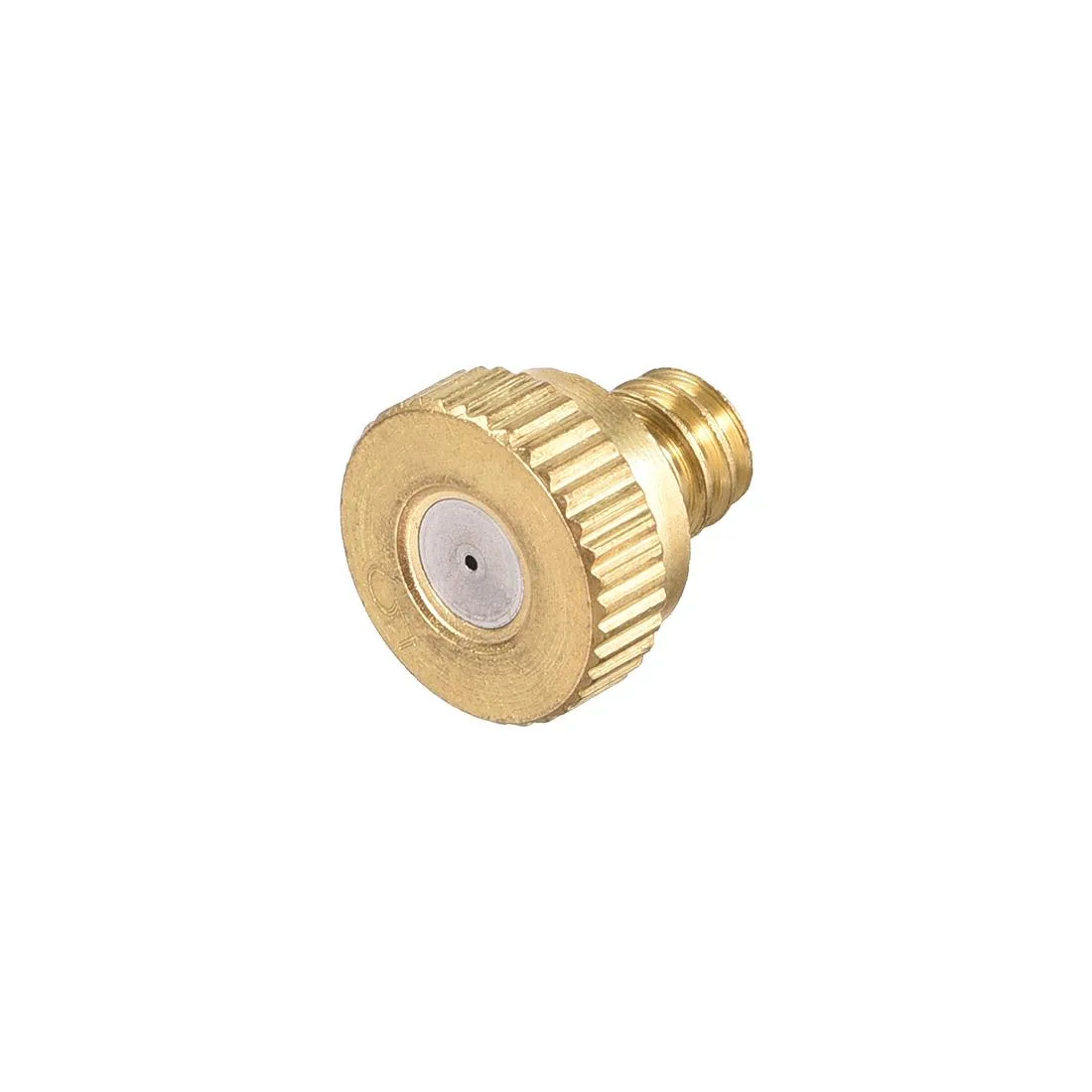

Small brass nozzle with stainless steel tip, 10/24 UNC thread, .5mm orifice

Unique-Bargains

Unique-Bargains Brass Misting Nozzle 10/24 UNC 0.5mm Orifice

SKU CH-PVY0-WPR1N

A brass misting nozzle with a 0.5 mm stainless-steel orifice that threads into 10/24 UNC openings for outdoor cooling systems

  • TypePattern
  • Fine mist without compressed air thanks to 0.5 mm orifice
  • Brass body with stainless steel tip resists rust
  • 10/24 UNC threads screw in without tape or sealant
  • Handles 3 to 70 kg/cm² pressure range
  • Delivers 80 to 300 ml/min flow rate

Brass misting nozzle for 10/24 UNC systems

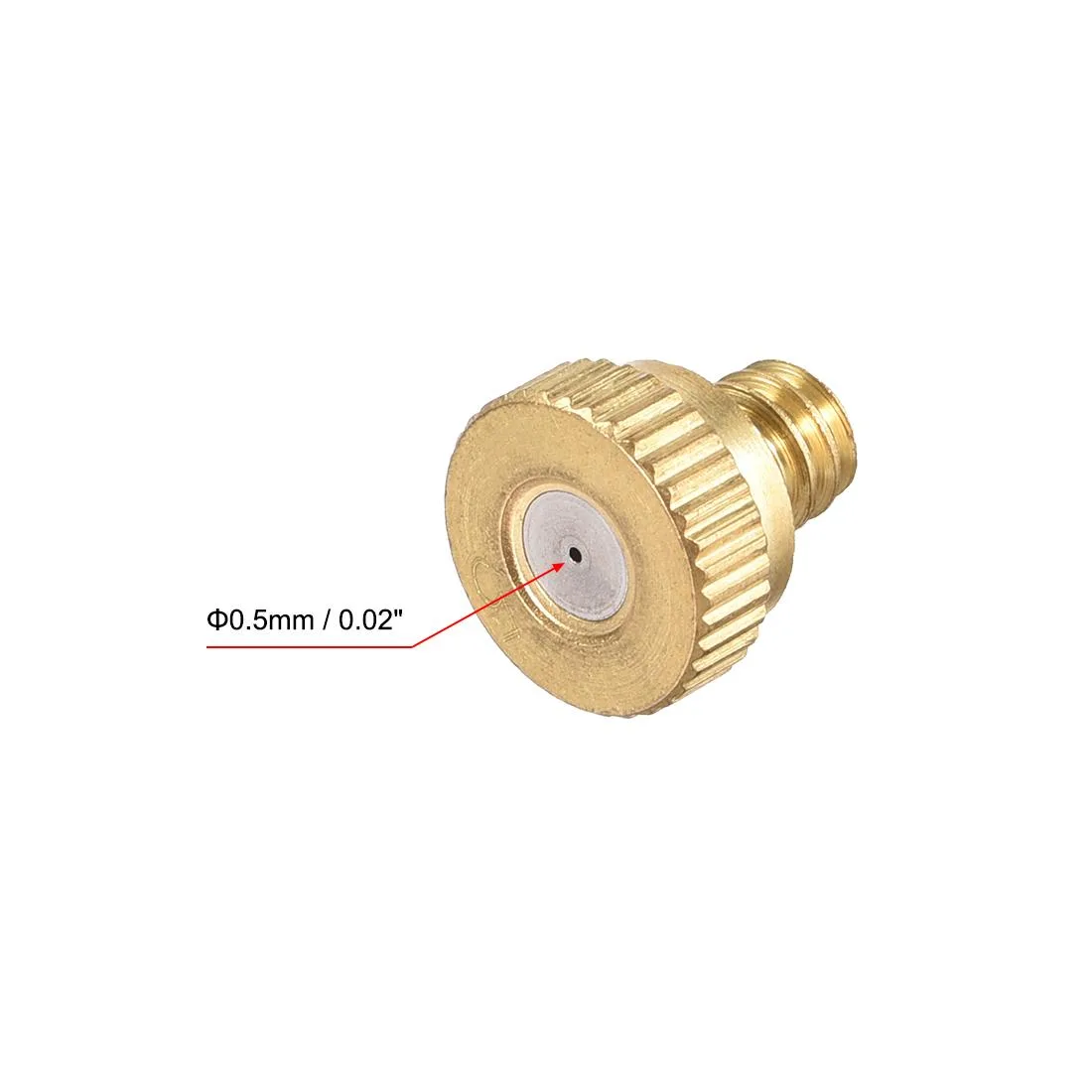

This brass nozzle fits any 10/24 UNC threaded opening and produces a fine mist using liquid pressure alone. The stainless steel orifice measures 0.5 mm and delivers 80 to 300 ml/min at pressures from 3 to 70 kg/cm. A self-sealing o-ring prevents leaks without tape or sealant.

Replaces clogged or worn misting heads

Swap out older nozzles when mineral deposits reduce flow or when the spray pattern degrades. The jump is worth it if the existing head no longer seals or if the orifice has widened beyond 0.5 mm. Soaking in nozzle cleaner periodically extends service life between replacements.

Verify thread size and water filtration

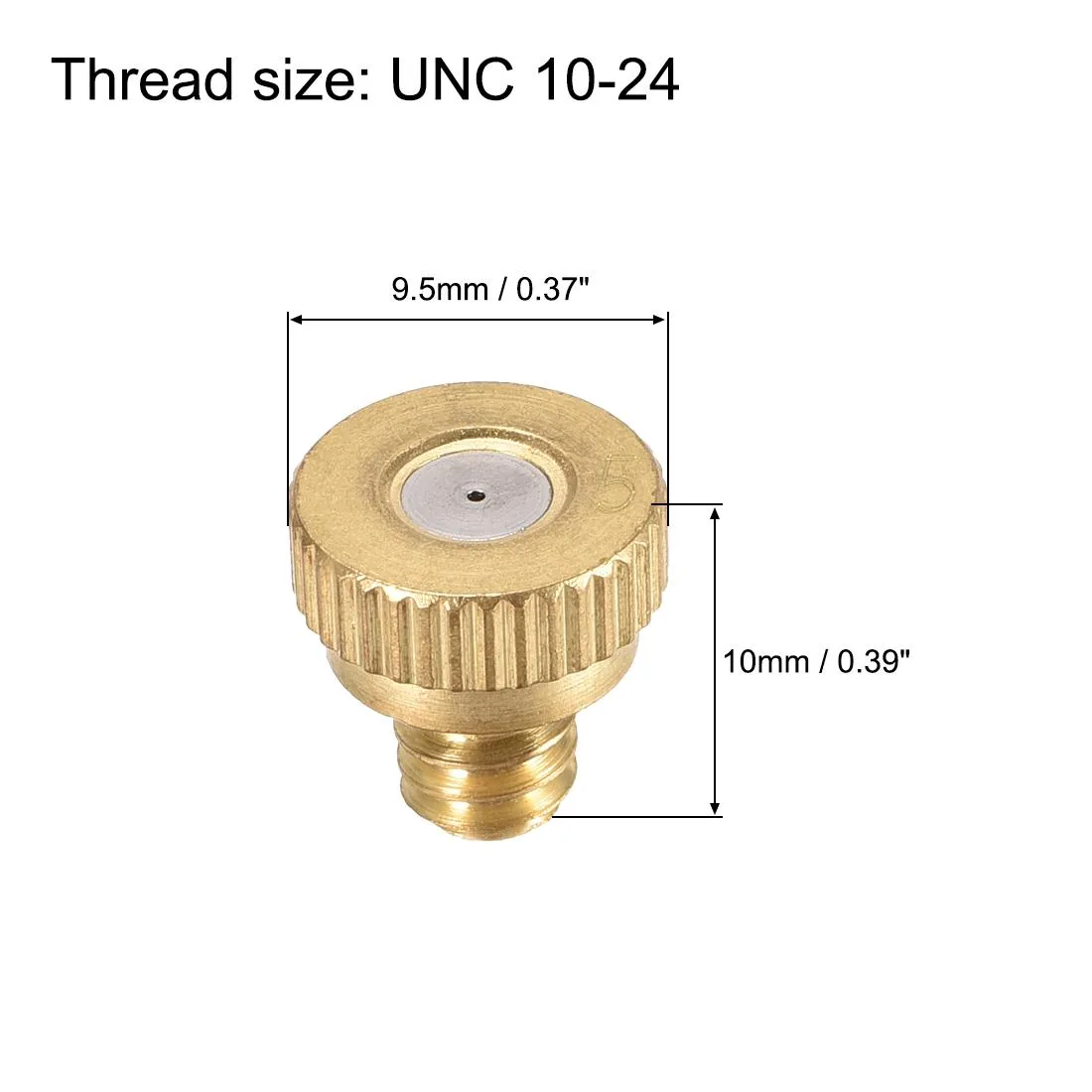

Confirm the system uses 10/24 UNC threads before ordering. The nozzle has no built-in filter, so debris in the supply water will cause clogging; install a filter at the inlet pipe if one is not already present. Maximum overall dimensions are 9.5 mm diameter by 10 mm height.

Highlights

  • Fine mist without compressed air thanks to 0.5 mm orifice
  • Brass body with stainless steel tip resists rust
  • 10/24 UNC threads screw in without tape or sealant
  • Handles 3 to 70 kg/cm² pressure range
  • Delivers 80 to 300 ml/min flow rate

Specifications

BrandUnique Bargains
TypePattern

Questions about this item

Will the 10/24 UNC thread screw straight into my existing misting line?

Yes — the nozzle carries a 10/24 UNC thread that matches standard misting-system openings, so it screws in without adapters.

The description says no tape or sealant is needed; what provides the seal?

A self-sealing o-ring is included with each nozzle and creates the leak-proof joint when the brass body is tightened.

How do I clear the 0.5 mm orifice when mineral build-up reduces the mist?

Soak the nozzle periodically in misting-nozzle cleaner to dissolve deposits; the stainless-steel orifice resists corrosion during cleaning.
