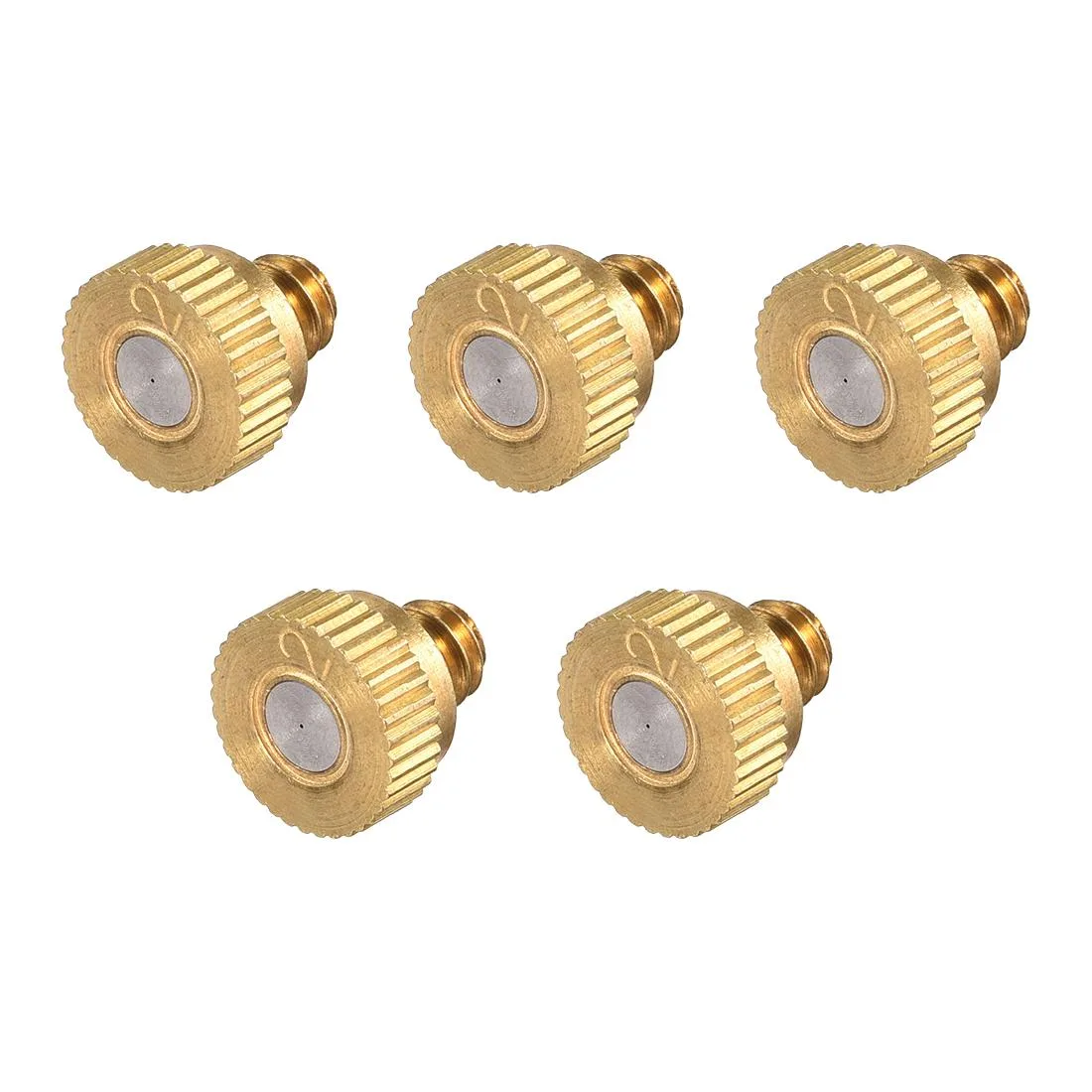

Five brass misting nozzles with stainless steel tips and UNC 10-24 threads

Unique-Bargains

Unique-Bargains Brass Misting Nozzle 10/24 UNC 0.2mm Orifice 5 Pcs

SKU CH-ANTB-TCV04

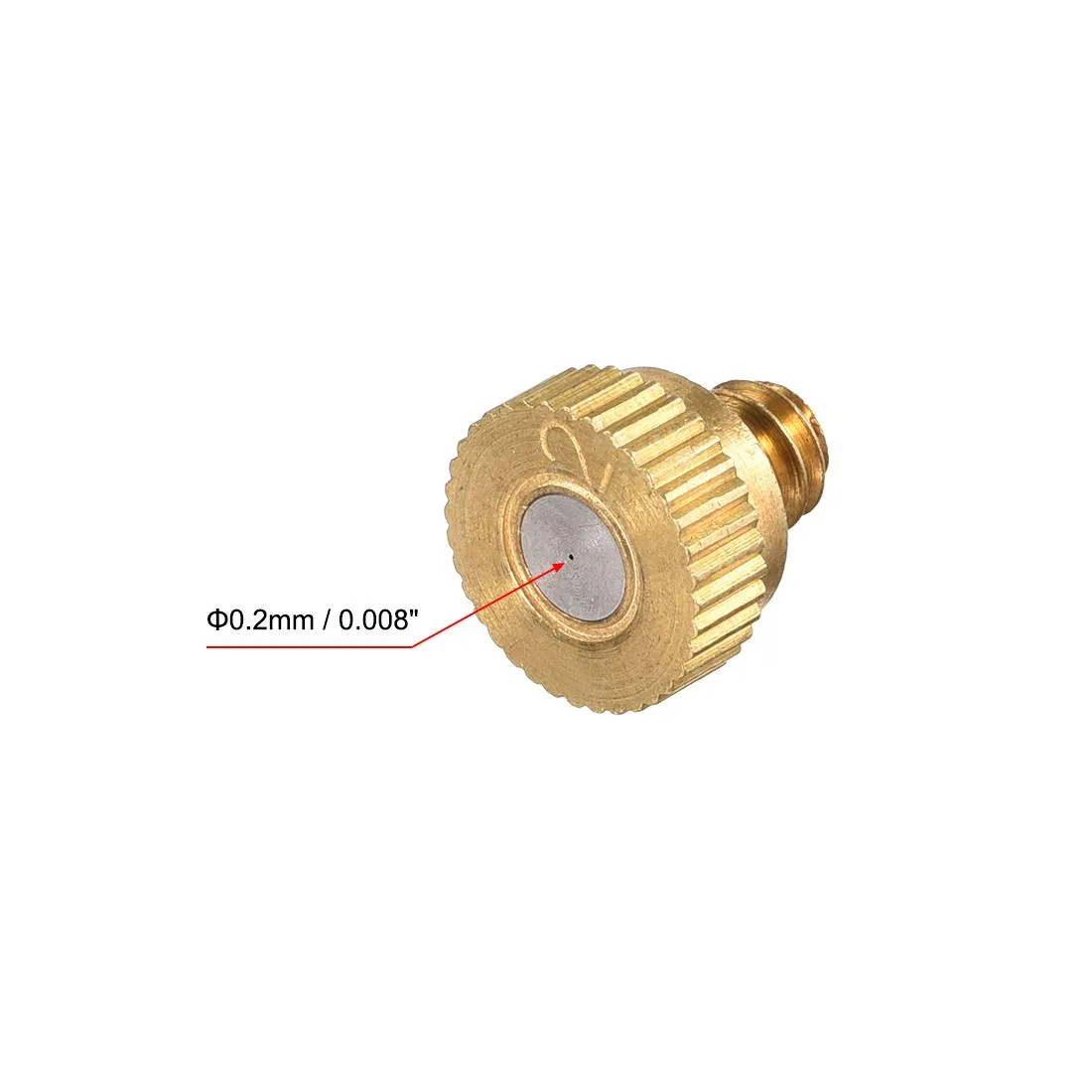

Five brass misting nozzles with 10/24 UNC threads and 0.2 mm orifices produce fine spray at 15–70 kg/cm² for outdoor cooling

  • TypePattern
  • Fine mist without compressed air, using liquid pressure only
  • Brass body with stainless steel orifice resists rust and lasts
  • Leak-proof O-ring seals without tape or sealant

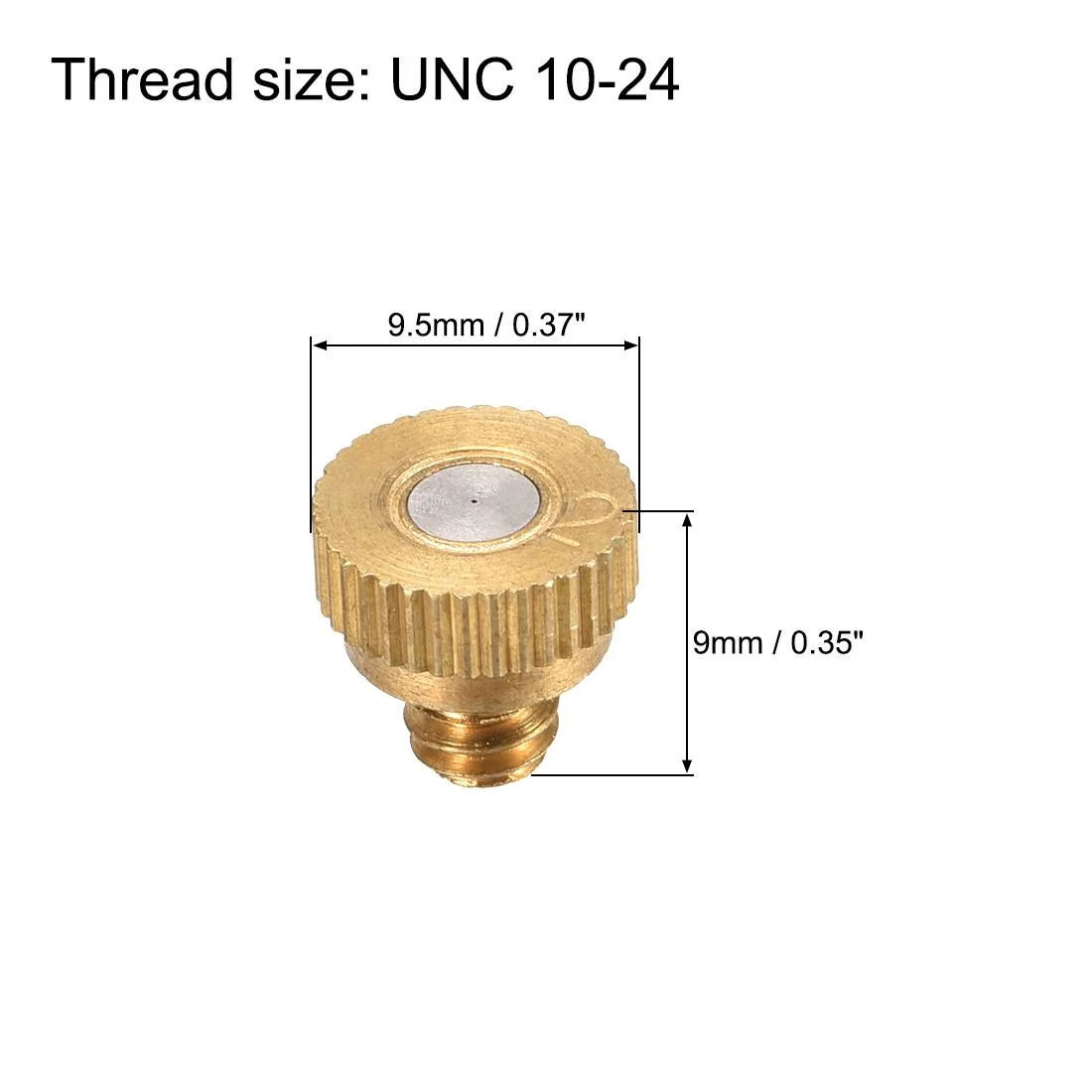

  • 10/24 UNC threads screw straight into existing misting systems
  • Five nozzles per pack for quick multi-point replacement

Brass Misting Nozzle 0.2mm Orifice

These brass nozzles with stainless-steel orifices deliver a fine mist for outdoor cooling, dust suppression and humidification. They thread directly into 10/24 UNC openings and operate on liquid pressure alone, requiring no compressed air. Each nozzle includes a self-sealing O-ring for leak-free installation without tape or sealant.

System Integration and Maintenance

The nozzles fit existing 10/24 UNC misting lines and function at 15 to 70 kg/cm² water pressure, producing 50 to 90 ml/min per head. Periodic soaking in nozzle cleaner removes mineral deposits that can restrict the 0.2mm aperture. Because no internal filter is present, a separate inlet filter is recommended to prevent debris from clogging the orifice.

Upgrade From Clogged or Leaking Heads

Replacing worn, dripping or blocked nozzles restores consistent mist output and stops water waste. The brass construction resists corrosion better than plastic alternatives, extending service life in hard-water environments. Buyers needing higher flow rates or different spray patterns should select nozzles with larger orifices or alternative designs.

Highlights

  • Fine mist without compressed air, using liquid pressure only
  • Brass body with stainless steel orifice resists rust and lasts
  • Leak-proof O-ring seals without tape or sealant
  • 10/24 UNC threads screw straight into existing misting systems
  • Five nozzles per pack for quick multi-point replacement

Specifications

BrandUnique Bargains
TypePattern

Questions about this item

Will the 0.2 mm orifice clog first under sustained use?

The stainless-steel orifice resists wear, but the nozzle has no built-in filter; debris in the water will clog the 0.2 mm opening before anything else.

How much heat or noise does the brass body produce when the system runs all day?

The brass nozzle itself generates no heat or noise; any warmth or sound comes from the pump supplying 15 to 70 kg/cm² pressure.

What thread must my existing misting line have for these five nozzles to screw in?

Each nozzle fits a 10/24 UNC threaded opening, so your line must already provide that exact thread.
