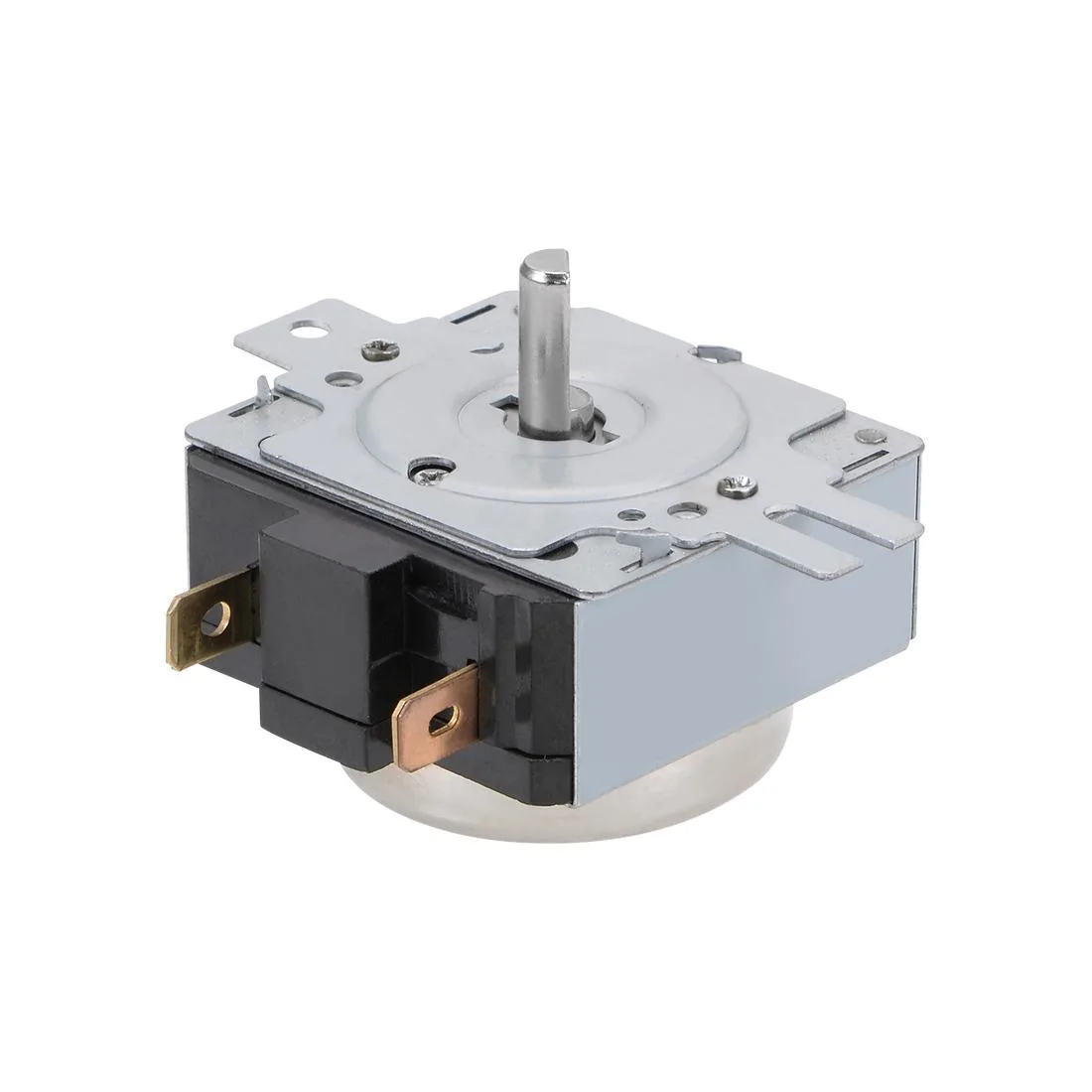

Metal D-shaft timer switch, 90-minute dial, compact rectangular body with two pins

Unique-Bargains

Unique-Bargains 90 Minute D Shape Shaft Timer Switch

SKU CH-Z4JA-CFV1V

Mechanical 90-minute timer with D-shape shaft and audible bell for microwave or oven replacement

  • TypeKitchen Timers
  • Sets cooking time up to 90 minutes for precise meal control
  • Handles up to 16 A at 250 V for safe appliance operation
  • Metal construction resists high heat for long service life
  • Compact 47 x 54 x 44.5 mm body fits tight cabinet spaces
  • Audible bell signals when the timed cycle finishes

90-Minute Mechanical Timer Switch

This mechanical timer switch provides a 0 to 90 minute timing range for kitchen appliances. It uses a D-shape shaft measuring 6 by 15 millimetres and mounts with two pins. The unit suits electric ovens, microwave ovens, pressure cookers and electric steamers that require a replacement timing control.

Resistive Load Limits by Voltage

The switch contacts are rated for resistive loads up to 15 amps at 125 volts AC and 16 amps at 250 volts AC. At 120 volts AC the rating is 13 amps, while at 240 volts AC it drops to 6.5 amps. Exceeding these current limits for the corresponding voltage will damage the contacts and create a safety hazard.

Installation Notes and Common Issues

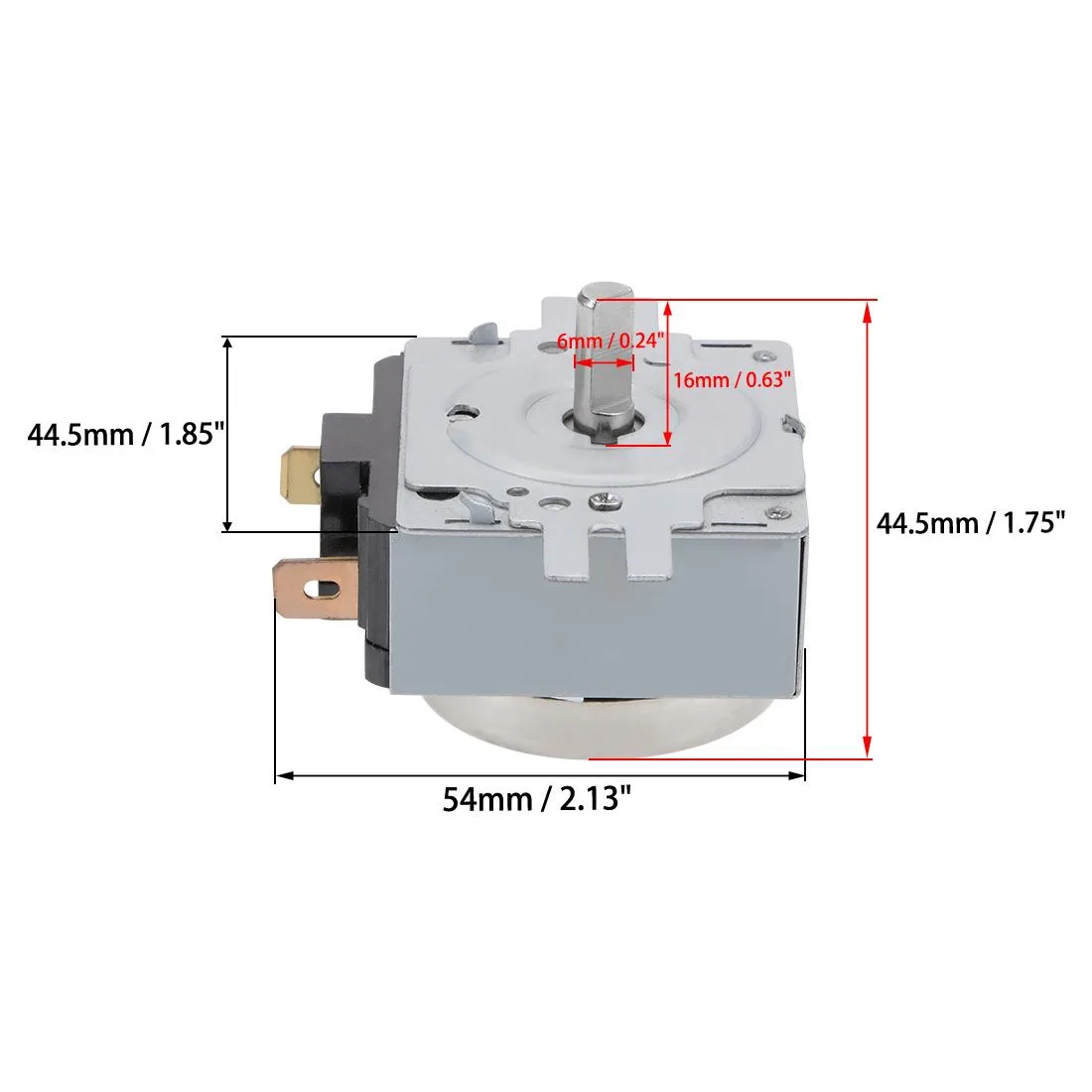

The compact metal body measures 47 by 54 by 44.5 millimetres and fits into the existing control panel cutout. Installation requires matching the D-shaft orientation and two-pin wiring to the appliance harness. Common problems include shaft misalignment preventing knob fit and loose terminal connections causing intermittent operation.

Highlights

  • Sets cooking time up to 90 minutes for precise meal control
  • Handles up to 16 A at 250 V for safe appliance operation
  • Metal construction resists high heat for long service life
  • Compact 47 x 54 x 44.5 mm body fits tight cabinet spaces
  • Audible bell signals when the timed cycle finishes

Specifications

BrandUnique Bargains
TypeKitchen Timers

Questions about this item

Is the 90-minute range the only timing option available on this timer switch?

Yes, this switch provides a single 0–90 minute range with no alternative timing scales.

How long can I actually run a microwave or oven before the timer cuts power?

The dial lets you set any duration up to 90 minutes; when the set time elapses the internal contacts open and the audible bell sounds.

What do the AC125V 15A and AC250V 16A ratings mean for my appliance?

They are the maximum resistive load the contacts can switch at those voltages; do not exceed 15 A at 125 V or 16 A at 250 V.
