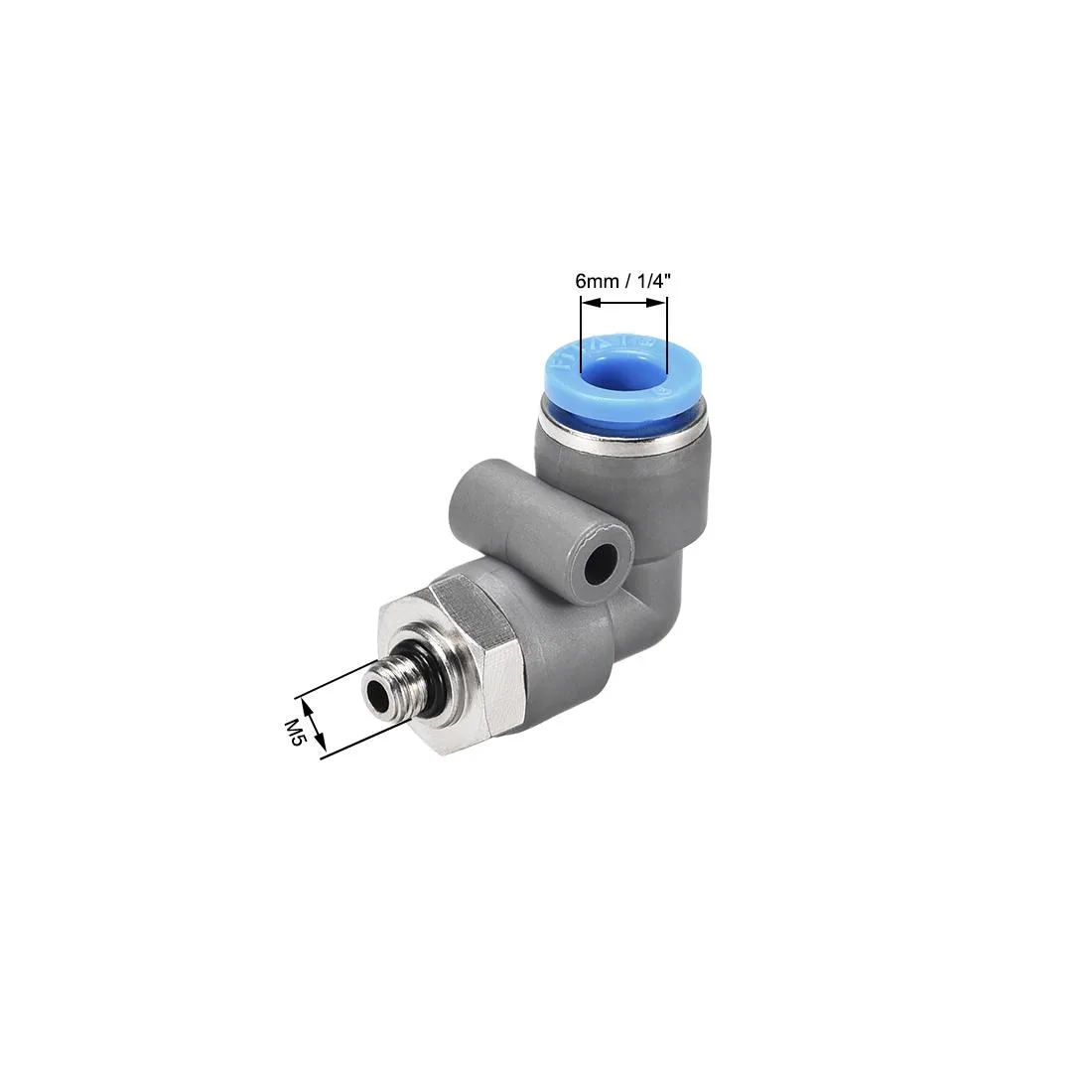

Ten grey plastic and nickel-plated brass 90-degree swivel elbow fittings with 6mm push-to-connect and M5 male threads

Unique-Bargains

Unique-Bargains 90 Degree Swivel Elbow Fitting 6mm OD M5 Male Thread Grey 10pcs

SKU CH-6WEQ-MMV9A

Pack of ten 90-degree swivel elbow connectors join 6 mm tubing to M5 male threads for pneumatic systems

  • TypeTube Fittings
  • Quick push-to-connect installation saves setup time
  • Swivelling 90° elbow routes tubing in tight spaces
  • Works from -10 °C to 60 °C for varied environments
  • Nickel-plated brass and plastic resist corrosion and wear
  • Pack of 10 fittings covers multiple connection points

90 Degree Swivel Elbow Fitting 6mm OD M5

These grey push-to-connect fittings join 6 mm outside-diameter tubing to M5 male threads at a right angle. The swivel body lets you orient the elbow after the thread is tightened. A pack of 10 suits pneumatic circuits that need compact routing in tight spaces.

Operating pressure 0 to 1 MPa temperature -10

The plastic and nickel-plated brass construction handles up to 1 MPa across the full -10 to 60 °C range. Push-to-connect sealing keeps leakage low without thread sealant, and the release cap resists accidental disconnection under pressure. No moving parts mean silent operation and zero power draw.

Ten-piece pack with release cap

Ten identical connectors arrive ready for polyethylene, nylon or PU tubing. The rotating cap aids initial alignment but locks once installed. Cut tubing square, push fully home, and tug to confirm engagement; the cap then stays fixed until deliberate release.

Highlights

  • Quick push-to-connect installation saves setup time
  • Swivelling 90° elbow routes tubing in tight spaces
  • Works from -10 °C to 60 °C for varied environments
  • Nickel-plated brass and plastic resist corrosion and wear
  • Pack of 10 fittings covers multiple connection points

Specifications

TypeTube Fittings
BrandUnique Bargains

Questions about this item

How do I install the 90 Degree Swivel Elbow with 6mm OD tube and M5 male thread, and what step causes leaks?

Cut the tube flat, push it fully into the push-to-connect end until it seats, then tug to confirm it locks; the M5 male thread screws into the port — incomplete insertion is the common leak cause.

What maintenance or replacement will these grey plastic and nickel-plated brass fittings need over time?

Inspect the release cap and seals periodically; replace any fitting that shows cracking, crushing damage or loss of sealing performance — the materials resist corrosion but wear under repeated cycling.

What limit appears first when the fitting runs continuously at 1 MPa and 60 °C?

The 60 °C temperature ceiling is reached before the 1 MPa pressure rating under sustained hot-air service, so monitor ambient heat to stay within the specified operating window.
