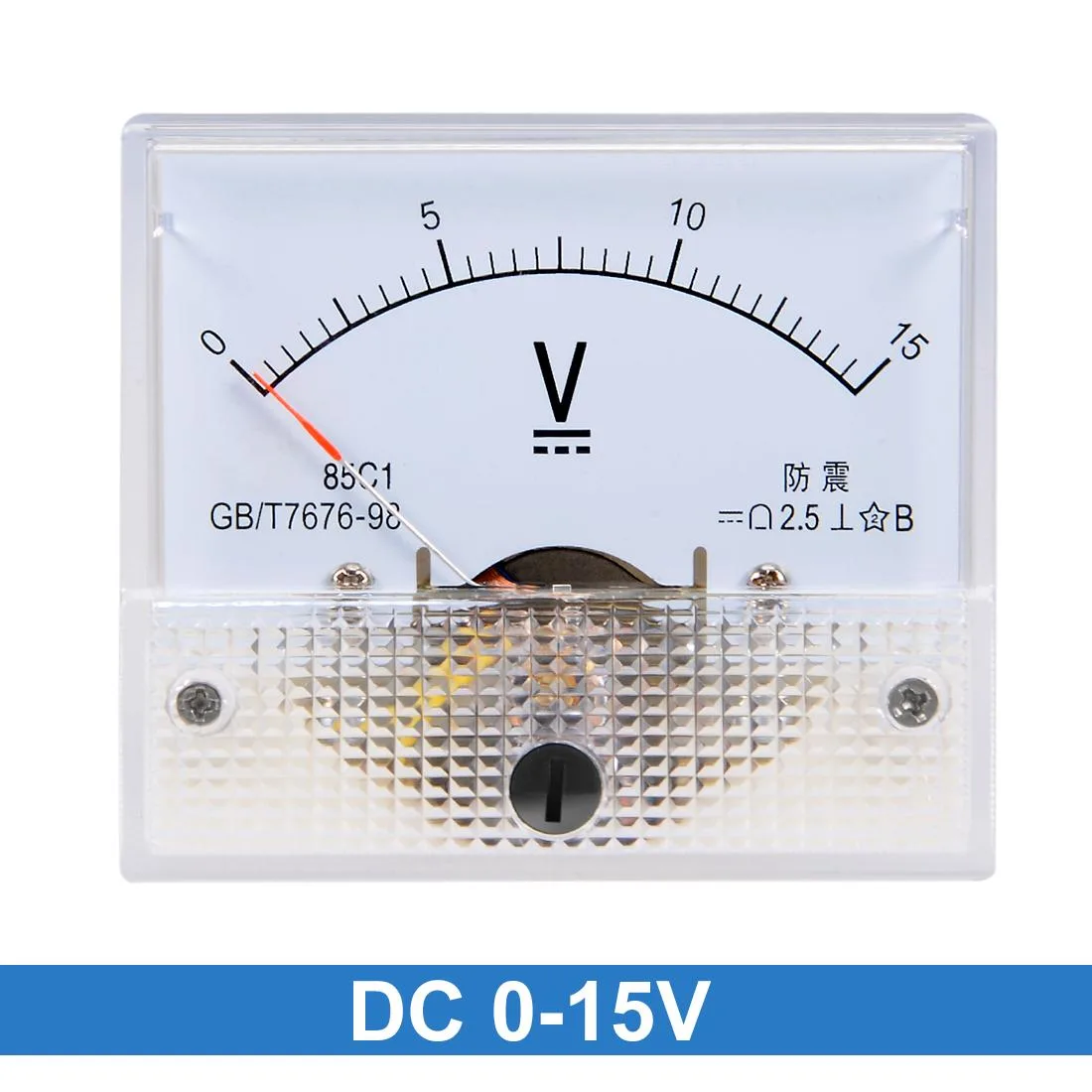

Square analog panel voltmeter with white dial, black markings and chrome bezel

Unique-Bargains

Unique-Bargains 85C1 DC 0-15V Analog Panel Voltage Gauge 2.5% measurement tool

SKU CH-N8JG-7C9G3 MPN 85C1

Measures DC voltage from 0 to 15 V with 0.5 V graduations and a ±2.5 % accuracy class, fitting a 64 × 55.8 × 47.5 mm panel cut-out

  • TypeAnalog Multimeters
  • Measures DC voltage up to 15V with clear 0.5V graduation steps
  • ±2.5% accuracy class delivers reliable readings for panel monitoring

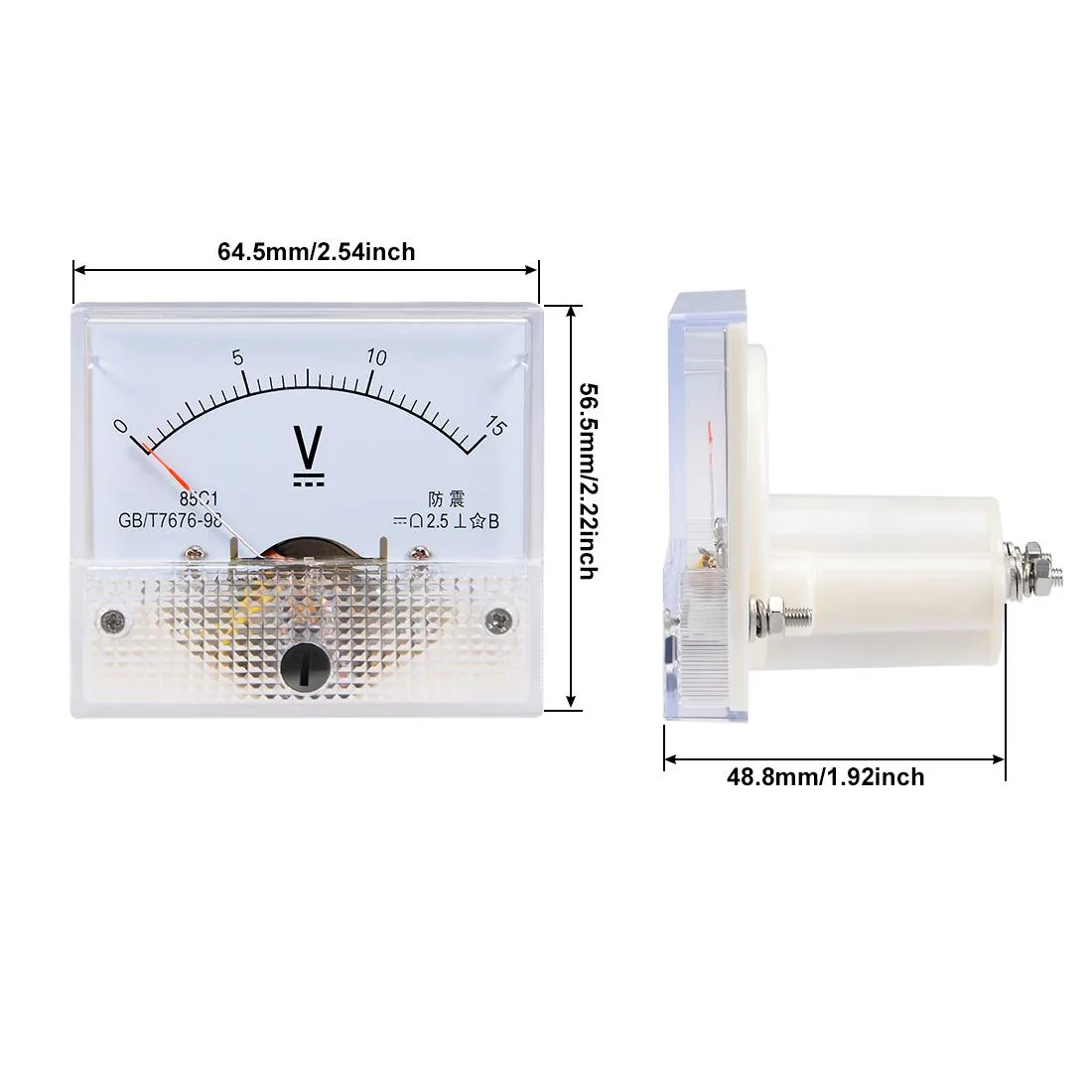

  • Compact 64 × 55.8 × 47.5 mm body fits standard cut-outs easily
  • Lightweight 77 g unit adds minimal load to instrument panels
  • Includes bolts and screws for secure, tool-free front-panel mounting

DC 0-15V Analog Panel Meter

This analog panel voltage gauge measures direct current from 0 to 15 volts with 0.5 V graduations. It carries a 2.5 % accuracy class, so the reading stays within ±2.5 % of full scale. The unit mounts through a panel using the supplied bolts and screw and needs no external shunt resistor. The movement is a traditional moving-coil type calibrated for DC only.

For basic DC monitoring tasks

Hobbyists, students and technicians who need a simple, always-visible indication of a 12 V battery, solar array or low-voltage power supply will find it adequate. It suits dashboards, test benches and custom enclosures where a digital display would add unwanted complexity. Users who require data logging, auto-ranging, AC measurement or better than ±2.5 % accuracy should choose a digital multimeter instead.

15 V full-scale headroom

The gauge comfortably tracks typical 12 V lead-acid or lithium systems, showing charge state and load drops at a glance. At the 15 V limit the pointer reaches the end stop, so voltages above that cannot be read and may damage the movement. The 0.5 V graduation gives a readable step size for quick checks, but interpolation between marks is needed for finer resolution.

Highlights

  • Measures DC voltage up to 15V with clear 0.5V graduation steps
  • ±2.5% accuracy class delivers reliable readings for panel monitoring
  • Compact 64 × 55.8 × 47.5 mm body fits standard cut-outs easily
  • Lightweight 77 g unit adds minimal load to instrument panels
  • Includes bolts and screws for secure, tool-free front-panel mounting

Specifications

BrandUnique Bargains
TypeAnalog Multimeters

Questions about this item

What DC voltage source range must I already have for the 85C1 gauge to display a reading?

The gauge reads DC 0 to 15 V, so your source must stay within that window.

Can I keep using my existing panel cut-out if its opening matches the 64 mm by 55.8 mm front dimensions?

Yes, the front panel measures 64 mm by 55.8 mm and the included bolts and screws fit that cut-out.

How do I verify the 85C1 is operating within its 2.5 % accuracy class after wiring it?

Apply a known DC voltage, compare the needle to the 0.5 V graduations, and confirm the deviation stays within ±2.5 % of full scale.
