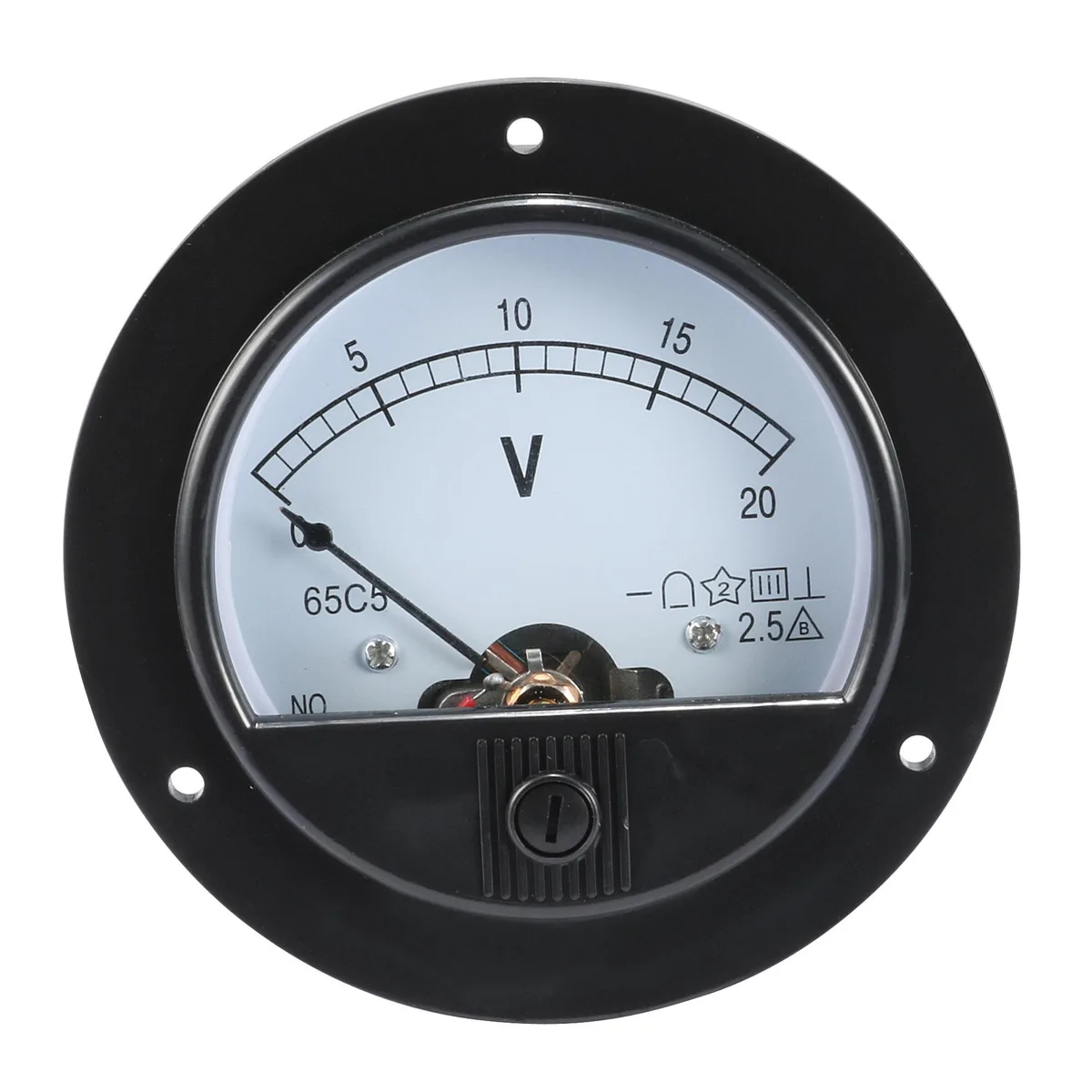

Round white analogue panel voltmeter with clear face and black scale 0 to 20 volts

Unique-Bargains

Unique-Bargains 65C5 DC 0-20V analogue panel meter measurement tool

SKU CH-PN4F-KWSGJ MPN 65C5

Measures DC voltage from 0 to 20 V with Class 2.5 accuracy on a clear 3.5 inch dial

  • TypeAnalog Multimeters
  • Measures DC 0-20V for low-voltage circuits
  • Class 2.5 accuracy gives reliable readings
  • Clear white scale with fine-tune dial for easy viewing
  • 90 mm round panel fits standard cut-outs
  • Supplied as model 65C5 ready to install

DC 0-20V analogue panel meter

The Unique-Bargains 65C5 is a round analogue voltmeter designed for DC circuits up to 20 volts. It suits hobbyists, technicians and students who need a direct visual indication of voltage without digital processing.

Panel-mount instrument for custom builds

The meter fits a 90 millimetre diameter cut-out with a 6 millimetre depth, leaving the front panel flush. It requires no external power supply, freeing wiring space and simplifying low-voltage DC monitoring panels.

Class 2.5 accuracy across 0-20V range

The scale reads comfortably from zero to 20 volts with a fine-tuning button for dial calibration. Accuracy falls outside the Class 2.5 specification beyond the stated range, so it is not suited for precision laboratory work or voltages exceeding 20 volts.

Highlights

  • Measures DC 0-20V for low-voltage circuits
  • Class 2.5 accuracy gives reliable readings
  • Clear white scale with fine-tune dial for easy viewing
  • 90 mm round panel fits standard cut-outs
  • Supplied as model 65C5 ready to install

Specifications

BrandUnique Bargains
TypeAnalog Multimeters

Questions about this item

How accurate is the Class 2.5 analogue meter when measuring continuously at full scale?

The meter meets Class 2.5 accuracy, meaning the reading can deviate by up to 2.5 % of the 20 V full-scale value during sustained use.

Does the analogue movement generate noticeable heat or noise when powered all day?

The passive analogue movement draws only the tiny current needed to deflect the needle, so it produces no audible noise and negligible heat during continuous operation.

What size panel cut-out must my enclosure already have for the 90 mm diameter meter to fit?

The unit requires a 90 mm diameter cut-out (3.5 inches) with a panel thickness up to 6 mm (0.24 inches) for the threaded body to mount securely.
