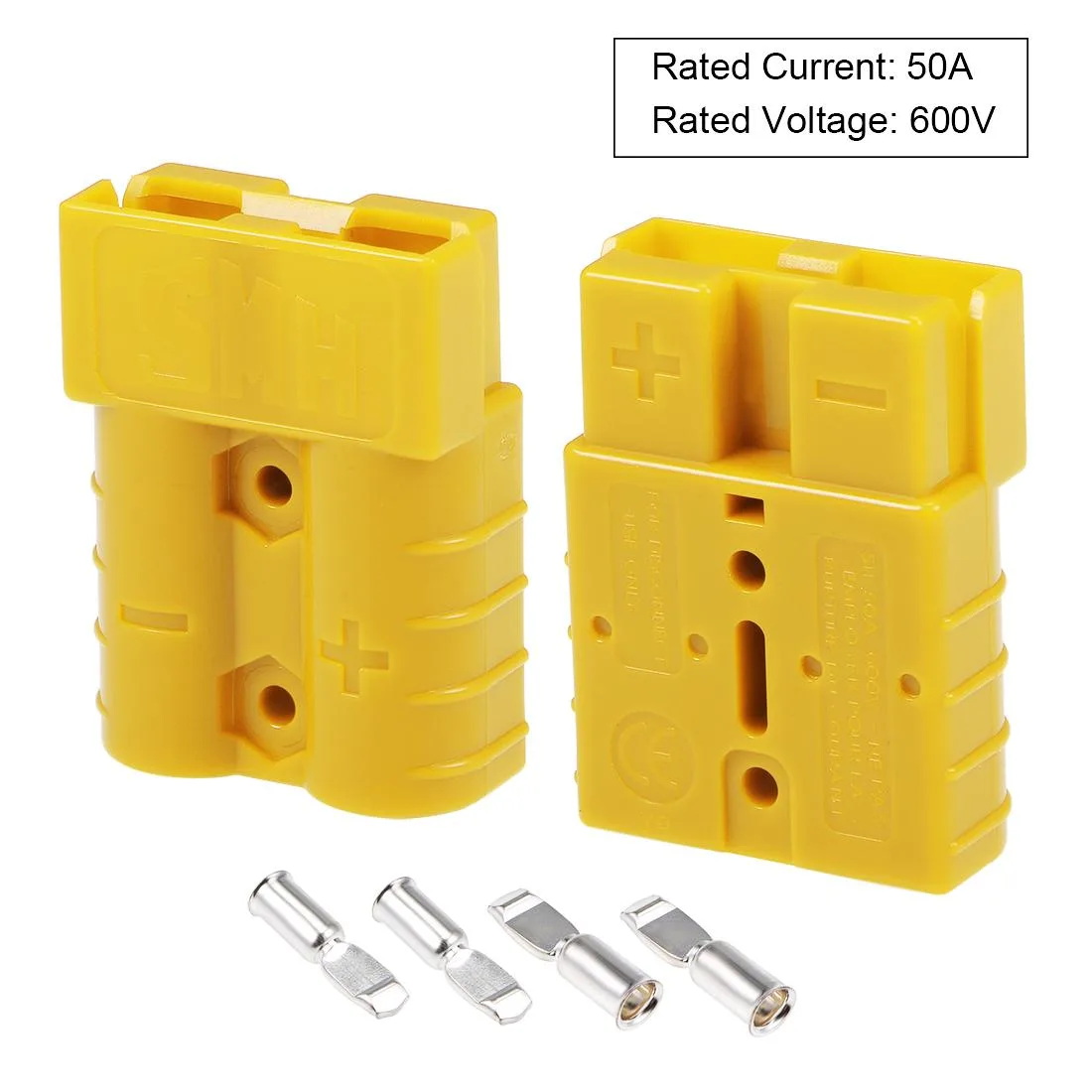

Pair of yellow polycarbonate 50A quick-connect housings with four silver-plated copper terminal pins for 6 AWG wire

Unique-Bargains

Unique-Bargains 6 AWG 50A Quick Connect Wire Cap Connector Yellow 2pcs

SKU CH-6JX1-7C58V

A pair of yellow 6 AWG quick-connect housings with silver-plated copper pins rated for 50 A at 600 V and UL94 V-0 flame resistance

  • Battery TypeBattery Converter
  • Quick-disconnect power for winches and trailers
  • 50 A rated current handles high-load devices
  • .22 in terminal ID accepts 6 AWG wire
  • UL94 V0 housing resists flame up to 257 °F
  • Identical polarised ends prevent reverse connection

Quick-Disconnect Battery Connector Set

This two-piece connector set provides a quick-disconnect solution for 6 AWG wiring in high-current automotive and trailer applications. Each housing accepts 6 gauge wire through 0.22 inch inner-diameter terminal pins. The identical, polarised housings prevent reverse-polarity connection and can be mated in any combination of same-size, same-colour units. The set includes two connector housings and four silver-plated copper terminal pins for crimping or welding.

50 Amp Continuous Current Rating

The connectors are rated for 50 amps continuous current at up to 600 volts, with a dielectric withstand voltage of 2200 volts DC. Polycarbonate housings meet UL94 V0 flammability requirements and operate from minus 20 to 125 degrees Celsius. Stainless-steel springs maintain positive contact force during vibration, while silver-plated copper pins ensure low-resistance conductivity for winches, inverters, solar equipment and remote battery chargers.

Tool-Ready Crimp Terminals for 6 AWG Wire

Installation requires stripping 6 AWG (13.3 mm²) conductors, inserting them into the supplied terminal pins, and crimping or welding the joints before locking the pins into the housings. No specialised connector tooling is needed beyond a standard crimper or soldering iron. The genderless design lets either end serve as power or load side, simplifying spares inventory and allowing daisy-chain configurations without additional adapters.

Highlights

  • Quick-disconnect power for winches and trailers
  • 50 A rated current handles high-load devices
  • .22 in terminal ID accepts 6 AWG wire
  • UL94 V0 housing resists flame up to 257 °F
  • Identical polarised ends prevent reverse connection

Specifications

BrandUnique Bargains
Battery TypeBattery Converter

Questions about this item

What does the 50 A rating mean once the connector is installed in a vehicle circuit?

It is the maximum continuous current the connector can carry at its rated temperature without overheating.

What standard governs the connector's voltage handling and what does it cap in practice?

The UL94 V0 flammability rating and 600 V rating limit the connector to circuits up to 600 volts.

What physical space and wire size are needed to mount and use these connectors?

Each housing accepts 6 AWG wire with a .22 inch terminal inner diameter and the set includes two housings plus four pins.
