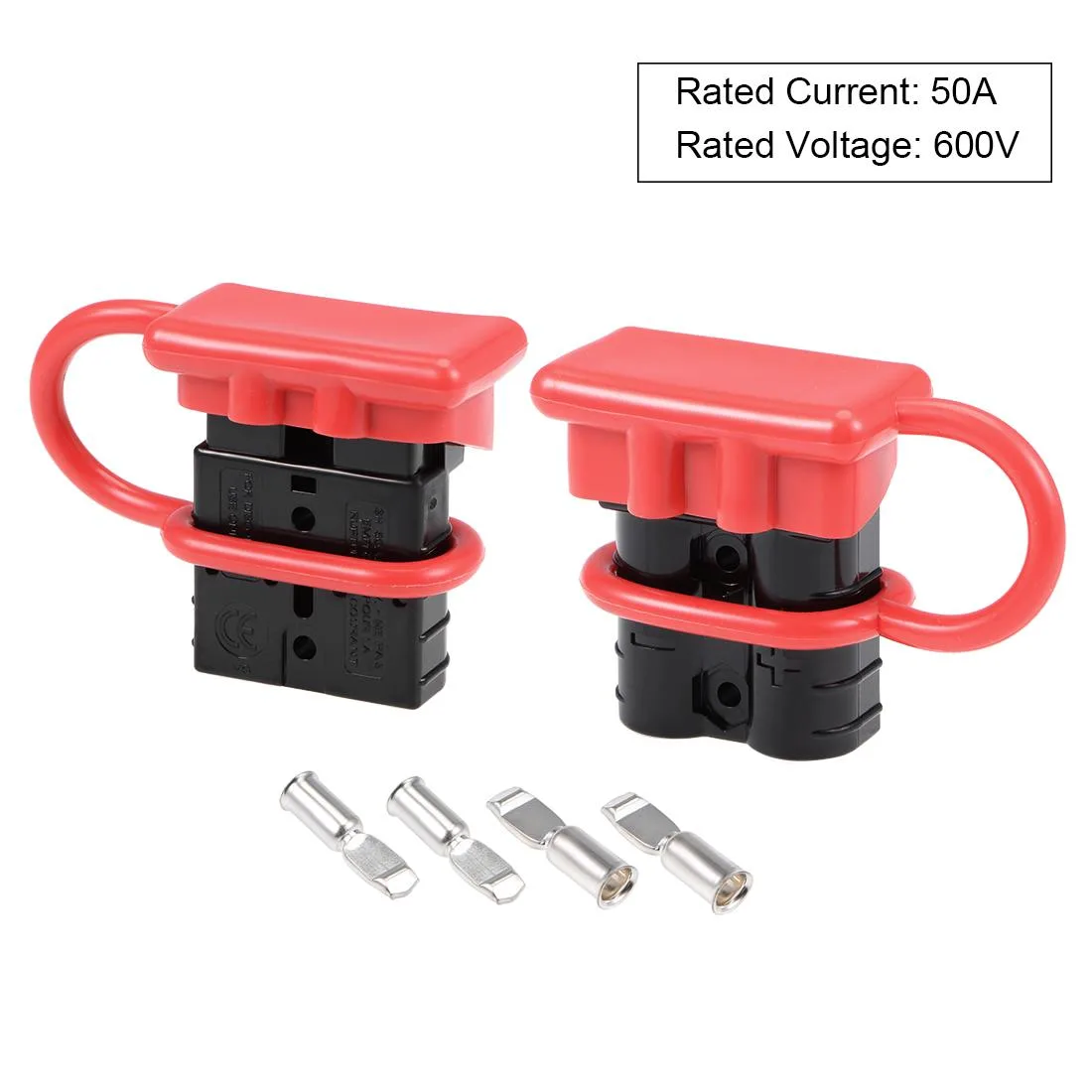

Two black polycarbonate quick-connect housings with copper-silver pins and rubber boots

Unique-Bargains

Unique-Bargains 6 AWG 50A Quick Connect Kit Black 2pcs

SKU CH-Y3WP-7DB77

A 50 A quick-disconnect kit for 6 AWG wire with polarised, silver-plated copper pins, polycarbonate housings and rubber boots

  • Battery TypeBattery Converter
  • Quick-disconnect power for winches and trailers with identical connector ends
  • 50 A continuous current rating on 6 AWG wire
  • Silver-plated copper pins ensure strong conductivity and stable voltage
  • UL94 V0 housing resists flame and operates from −20 °C to 125 °C
  • Rubber boot caps seal out dust, moisture and corrosion

50A Quick Connect Kit for 6 AWG Wiring

This two-piece connector kit provides a high-current quick-disconnect solution rated at 50 amps and 600 volts. It is suited for winches, trailer wiring, solar installations, power inverters and remote battery chargers. The identical housings allow either end to serve as the power or load side while the polarised design prevents reverse connection.

Polycarbonate Housing with Silver-Plated Copper Pins

Each connector uses a UL94 V0-rated polycarbonate shell that resists heat up to 125°C and a fitted rubber boot that seals out dust and moisture. The 0.22-inch inner-diameter terminal pins are copper with silver plating for low-resistance conductivity, and stainless steel springs maintain firm contact pressure during vibration. Housings of the same size and colour interlock to simplify multi-connector assemblies.

Verify Wire Gauge and Operating Limits Before

Confirm that your cables are 6 AWG (13.3 mm²) so they seat correctly in the 0.22-inch pin bore. The kit is rated for continuous operation between -20°C and 125°C and a withstanding voltage of 2200 V DC. Buyers who need a higher current rating, a different wire gauge or a connector series that mates with an existing proprietary system will find this kit unsuitable.

Highlights

  • Quick-disconnect power for winches and trailers with identical connector ends
  • 50 A continuous current rating on 6 AWG wire
  • Silver-plated copper pins ensure strong conductivity and stable voltage
  • UL94 V0 housing resists flame and operates from −20 °C to 125 °C
  • Rubber boot caps seal out dust, moisture and corrosion

Specifications

BrandUnique Bargains
Battery TypeBattery Converter

Questions about this item

What current does the 600 V-rated connector handle in practice?

The kit is rated for 50 A continuous current at 600 V, with a 2200 V DC withstand voltage and UL94 V-0 flammability rating.

What wire size and housing clearance does the 0.22 in terminal accept?

Terminal pins fit 6 AWG (13.3 mm²) wire; the polycarbonate housings and rubber boots are sized for that gauge and interlock only with identical size and colour units.

How are the four terminal pins crimped and seated so polarity cannot be reversed?

Strip the 6 AWG wire, crimp each pin, insert into the housing until the stainless-steel spring locks, then fit the rubber boot; the keyed housing allows only one mating orientation.
