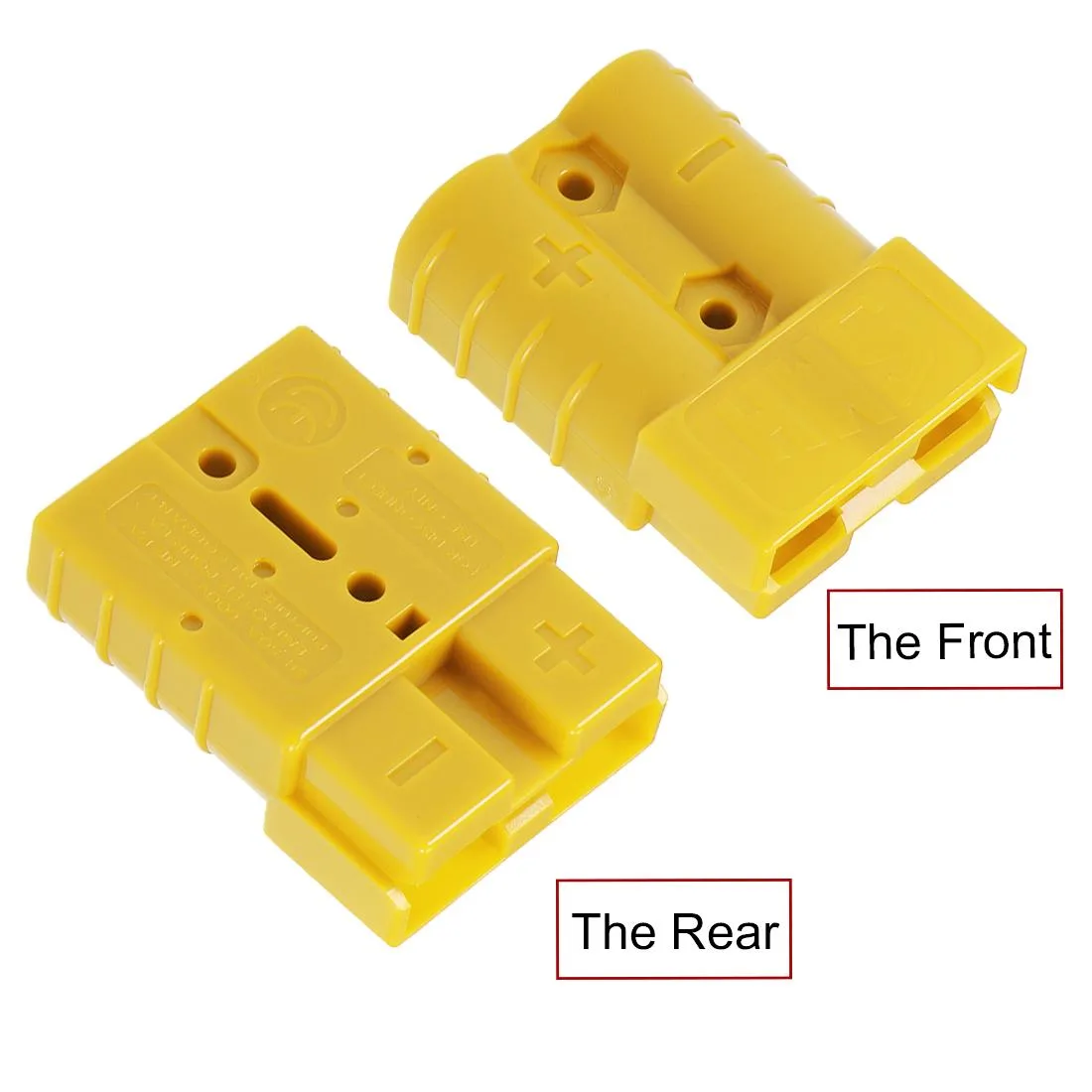

Four yellow polycarbonate quick-disconnect housings with eight silver-plated copper terminal pins for 6 AWG wire

Unique-Bargains

Unique-Bargains 6 AWG 50A Quick Connect Disconnect Connector Yellow 4pcs

SKU CH-HNPK-SRB7X

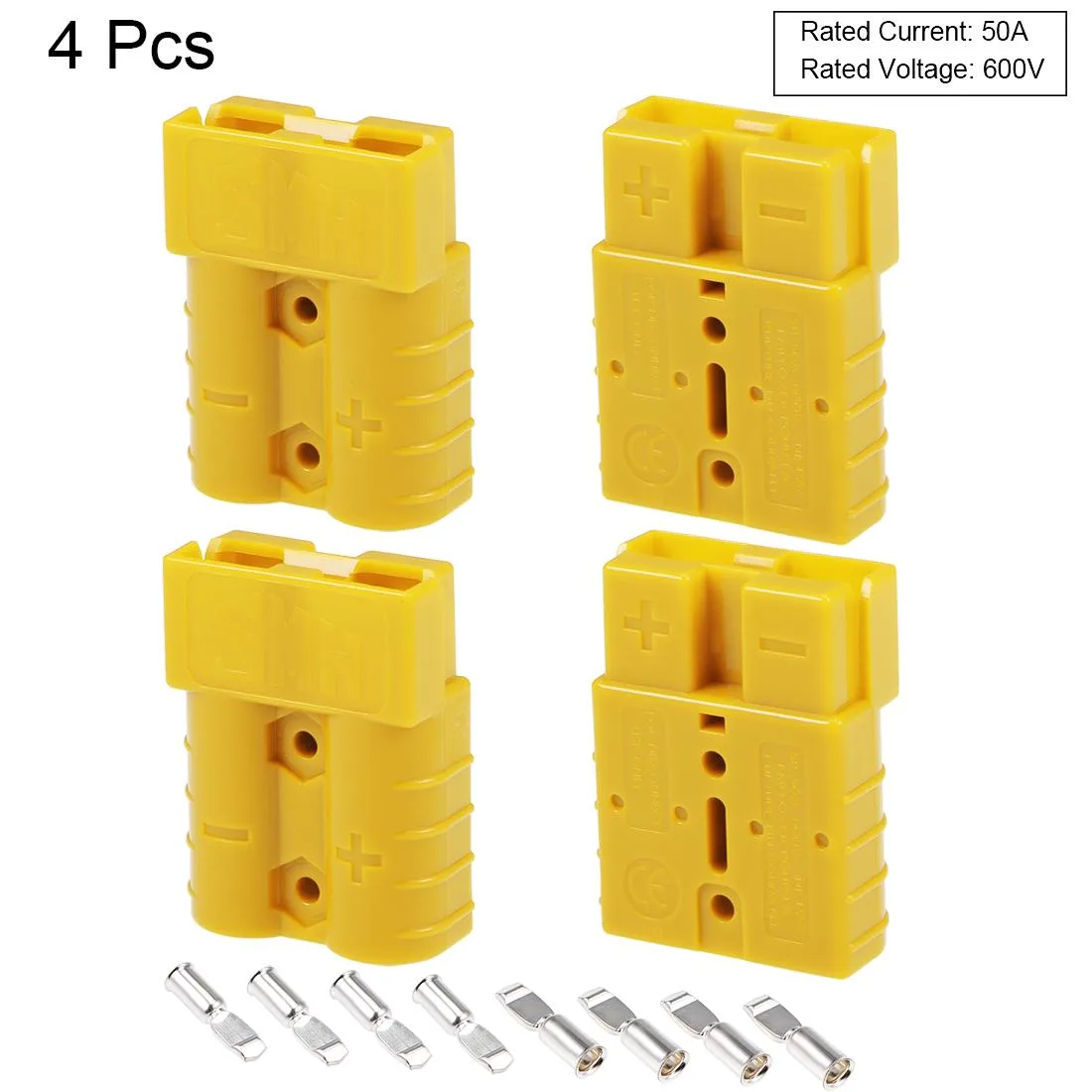

A set of four yellow 50-amp quick-disconnect housings with eight silver-plated copper pins for 6 AWG wire, keyed to prevent reverse polarity and rated to 600 volts and 125 °C

  • Battery TypeBattery Converter
  • Quick-disconnect power for winches and trailers with 50A rating
  • Copper-silver terminal pins handle 6 AWG wire at .22" diameter
  • Identical housings prevent reverse-polarity connection errors
  • UL94 V0 polycarbonate withstands -20°C to 125°C operating range
  • Four connector housings plus eight pins included for multiple installations

Quick-Disconnect Power Connector

This set supplies four identical yellow housings with eight silver-plated copper terminal pins rated for 50 amps and 600 volts. The 0.22 inch inner diameter accepts 6 AWG wire, making the connectors suitable for winches, trailer wiring, inverters and similar high-current automotive equipment. Polarised housings prevent reverse connection while allowing either end to serve as power or load side.

Sustained Current Performance

Rated for continuous operation at 50 amps within a temperature span of -20°C to 125°C, the connectors maintain stable voltage through stainless-steel spring contacts that resist vibration-induced loosening. The UL94 V0 polycarbonate housing withstands 2200 volts DC without breakdown, so extended winching or inverter duty does not degrade the insulation or contact force.

Installation Compatibility Check

Verify that the existing wiring is 6 AWG (13.3 mm²) and that crimp or solder tools are available for the supplied terminal pins. Confirm the application voltage does not exceed 600 volts and that the operating environment stays within the -4°F to 257°F range. The four housings interconnect only with identical size and colour units, so mixed-connector systems cannot be joined.

Highlights

  • Quick-disconnect power for winches and trailers with 50A rating
  • Copper-silver terminal pins handle 6 AWG wire at .22" diameter
  • Identical housings prevent reverse-polarity connection errors
  • UL94 V0 polycarbonate withstands -20°C to 125°C operating range
  • Four connector housings plus eight pins included for multiple installations

Specifications

BrandUnique Bargains
Battery TypeBattery Converter

Questions about this item

How much heat can the 6 AWG connector housing withstand during continuous 50 A operation?

The polycarbonate housing is rated UL94 V0 and operates from -20 °C to 125 °C, so it handles sustained high-current loads without softening.

What wire preparation and tools are required before these connectors can be used?

You need 6 AWG wire, a crimper or welder for the supplied copper-silver terminal pins, and no other proprietary tooling.

Can the yellow 50 A housings mate with older grey or red Anderson-style connectors of the same amp rating?

Only housings of the same size and colour lock together; different colours or form factors will not engage.
