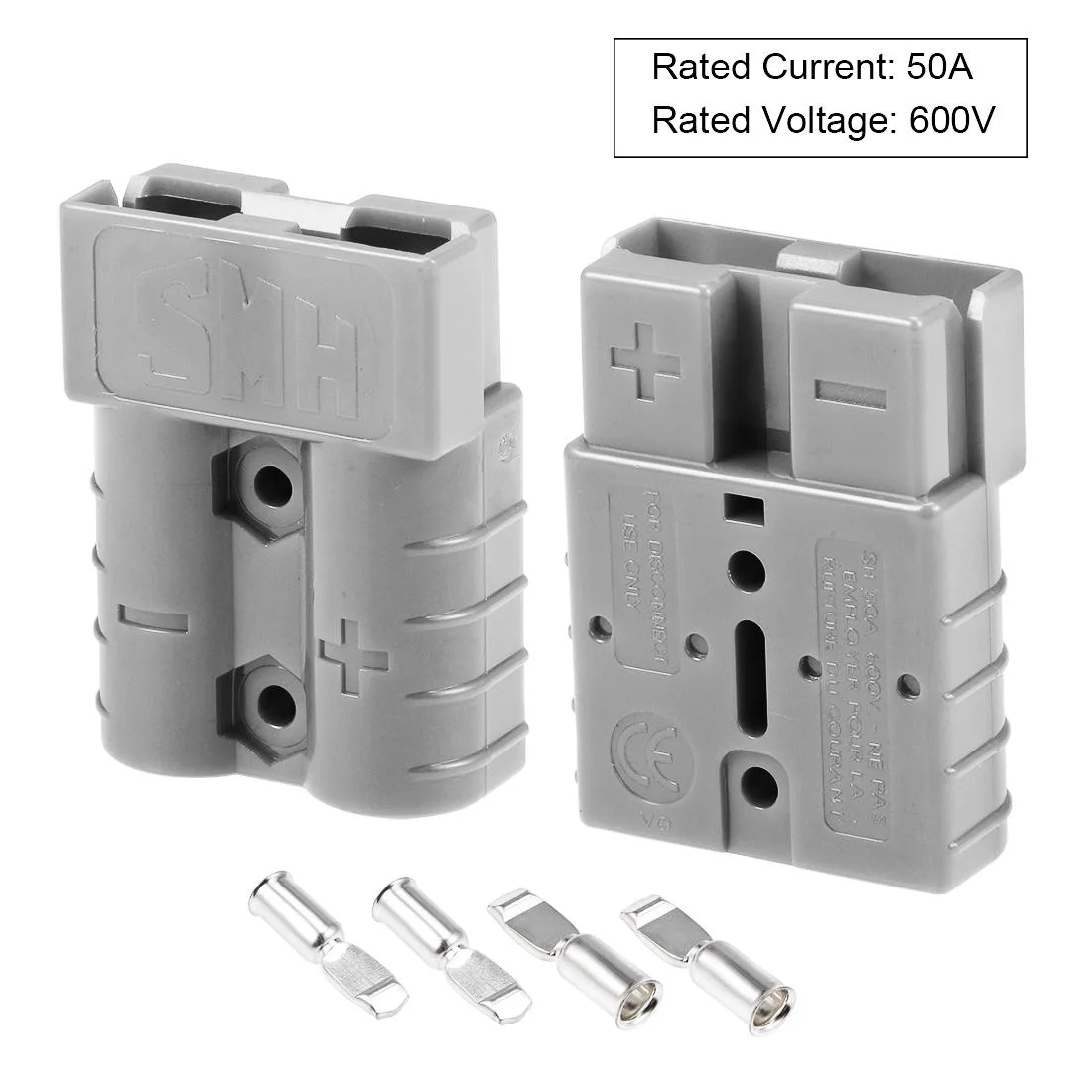

Pair of grey polycarbonate quick-connect housings with four silver-plated copper terminal pins

Unique-Bargains

Unique-Bargains 6 AWG 50 A Quick Connect Pair Grey

SKU CH-A1WG-8NFPQ

A pair of 50 A quick-connect housings with four silver-plated copper pins that accept 6 AWG wire and lock together with stainless-steel springs for winch, trailer or inverter power

  • Battery TypeBattery Converter
  • Quickly connect or disconnect high-current circuits using identical grey housings that prevent reverse polarity
  • Terminal pins accept 6 AWG wire with a .22 inch inner diameter for secure crimping or welding
  • Rated for 50 amps continuous current at 600 volts in demanding automotive and trailer applications
  • Polycarbonate housings rated UL94 V0 withstand temperatures from -20 °C to 125 °C for reliable operation
  • Stainless steel springs maintain strong contact force while silver-plated copper pins ensure stable conductivity

Quick-Disconnect Pair for 6 AWG Wiring

This 50 A connector set suits automotive, trailer and winch circuits that need frequent power separation. The grey polycarbonate housings accept 6 AWG conductors and lock together with stainless steel springs for a secure mating force. Identical ends prevent polarity errors during connection.

Simple Two-Step Installation

Strip the wire, insert it into the supplied terminal pins and crimp or weld each joint. Push the pinned terminals into the housing until the spring clips engage with an audible click. A common mistake is leaving the pin unseated, which breaks the 50 A current path.

Verify Wire Gauge and Voltage Before Ordering

Confirm the existing cable is 6 AWG / 13.3 mm² so the .22 in pin bore grips correctly. Ensure the system voltage does not exceed 600 V and that the -20 °C to 125 °C operating range covers the installation environment. The UL94 V0 rating meets common vehicle flammability requirements.

Highlights

  • Quickly connect or disconnect high-current circuits using identical grey housings that prevent reverse polarity
  • Terminal pins accept 6 AWG wire with a .22 inch inner diameter for secure crimping or welding
  • Rated for 50 amps continuous current at 600 volts in demanding automotive and trailer applications
  • Polycarbonate housings rated UL94 V0 withstand temperatures from -20 °C to 125 °C for reliable operation
  • Stainless steel springs maintain strong contact force while silver-plated copper pins ensure stable conductivity

Specifications

BrandUnique Bargains
Battery TypeBattery Converter

Questions about this item

How do I confirm the 50 A connectors are conducting properly after crimping the 6 AWG wires?

Measure continuity across the mated pair and verify voltage drop under load stays within the 600 V rating.

What parts are included and what must I supply myself?

The pack contains two connector housings and four silver-plated copper terminal pins; you must provide 6 AWG wire and crimping or welding tools.

Should I choose a different colour or amperage version for a 50 A winch circuit?

This grey set is rated for 50 A at 600 V with a .22 in pin bore for 6 AWG; select another colour only if you need visual circuit identification.
