Unique-Bargains 50A 6 AWG Quick Connect Disconnect Kit Yellow 2pcs

Quick-Disconnect Power Kit

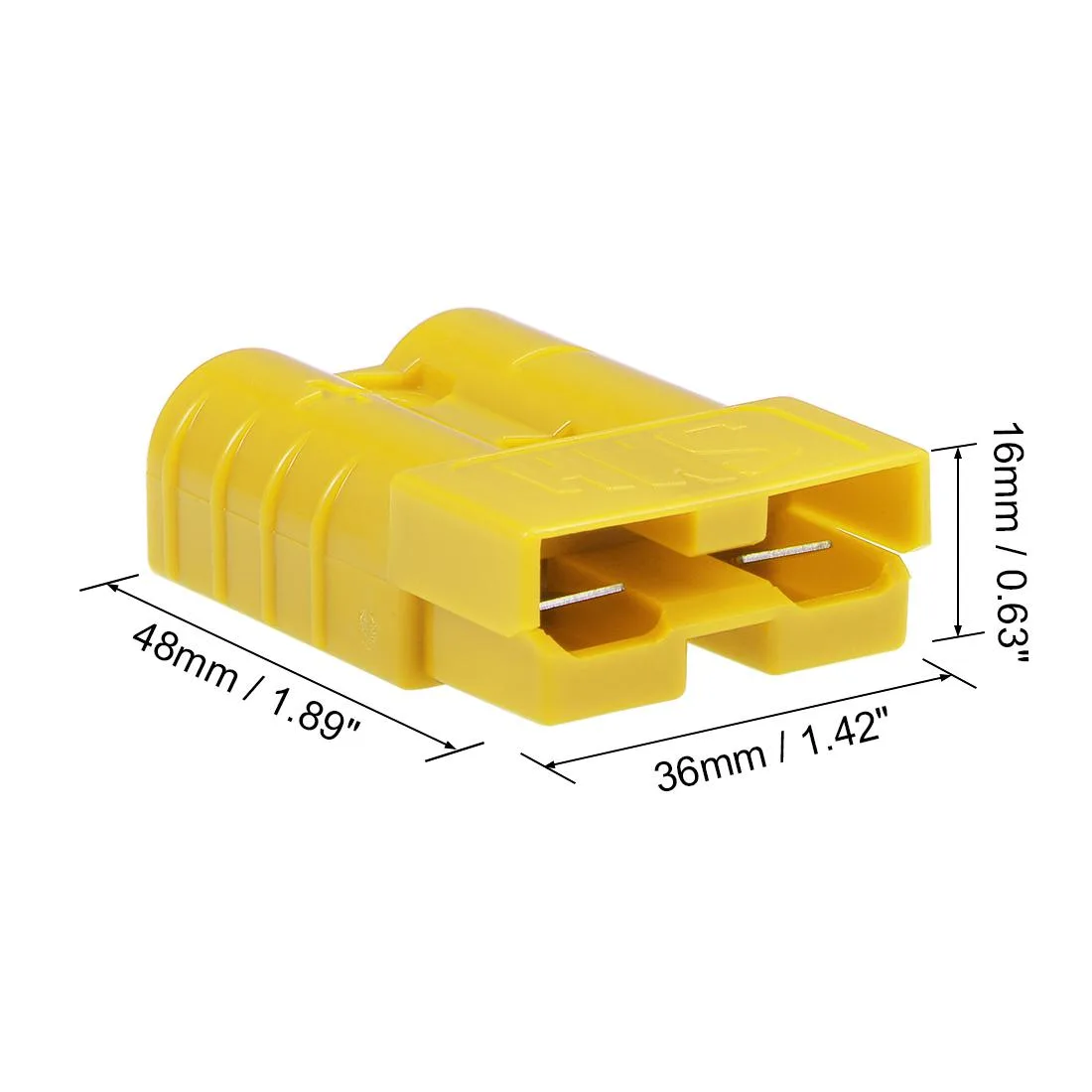

This two-piece connector set provides a fast way to join or separate 6 AWG cables in automotive and off-grid systems. Rated for 50 A at 600 V, the yellow polycarbonate housings are keyed to prevent reverse polarity and accept wire up to .22 inch inner diameter. The kit includes four terminal pins and two rubber boot caps for weather sealing. Builders needing a tool-less high-current link for winches, inverters or trailer wiring will find it a direct fit.

Thermal and Electrical Limits

The connectors carry 50 A continuous with a withstanding voltage of 2200 V DC and meet UL94 V0 flammability rating. Operating temperature spans -20 °C to 125 °C, so the assembly remains stable in engine bays or solar installations without active cooling. No fan or heatsink is required; the polycarbonate housing and rubber boots handle the thermal load passively.

Build Integration

Each housing mates with its twin, so either end can serve as power or load side without dedicated plugs. The 6 AWG terminal pins crimp onto standard 13.3 mm² cable, and the fitted rubber boots shield the joint from dust and moisture. The kit supplies two complete housings, four pins and two boots — nothing else is needed for a single quick-disconnect point. Systems requiring multiple isolated circuits will need additional kits.
