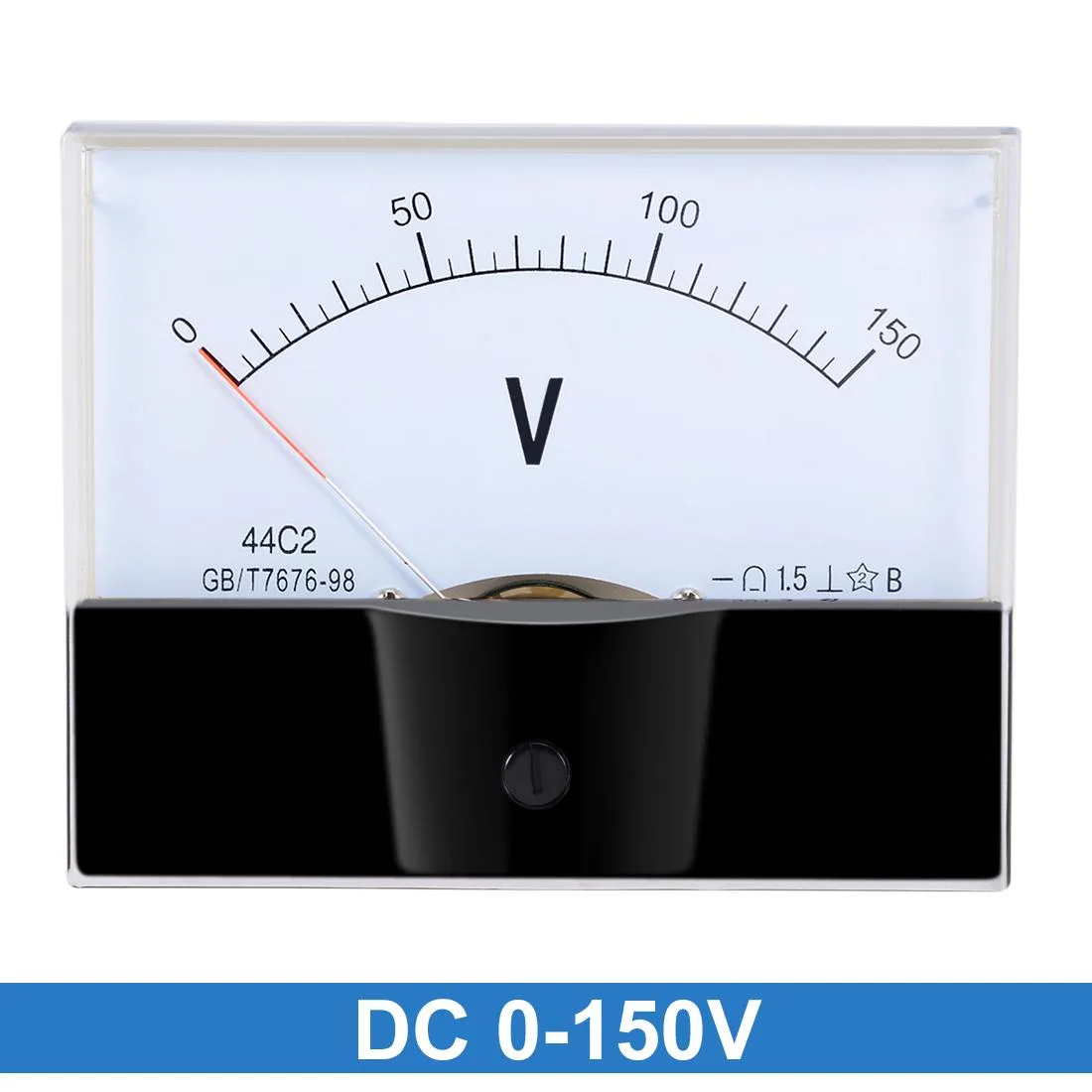

Square analog panel voltmeter with white scale marked 0 to 150 volts DC, black needle, chrome bezel, mounting bolts visible

Unique-Bargains

Unique-Bargains 44C2 DC 0-150V Analog Panel Volt Meter 1.5% Error Margin measurement tool

SKU CH-1V2N-XXX8G MPN 44C2

Measures DC voltage from 0 to 150 V with 5 V graduations and a 1.5 % error margin in a compact analog panel mount

  • TypeAnalog Multimeters
  • Measures DC voltage from 0 to 150 V for panel monitoring
  • 5 % accuracy class keeps readings within tight limits
  • No external shunt resistor needed simplifies installation
  • Front panel fits 100 mm by 80 mm cut-outs
  • Lightweight 113 g unit adds minimal load to panel

DC 0-150V analog panel meter

The Unique-Bargains 44C2 is a new analog volt meter designed for panel mounting in electrical systems that require direct DC voltage indication. It suits technicians, hobbyists and automotive installers who need a simple, mains-free readout without configuring digital ranges or supplying auxiliary power.

150 V range with 5 V graduations

The movement covers DC 0 to 150 V and is marked in 5 V steps, giving a clear view of battery banks, charging circuits or power-supply outputs up to that ceiling. Accuracy class 1.5 means the needle can deviate by ±1.5 % of full scale, so readings near the top of the range carry the widest absolute tolerance; the meter does not measure current, resistance or AC voltage.

Square front panel with bolt mounting

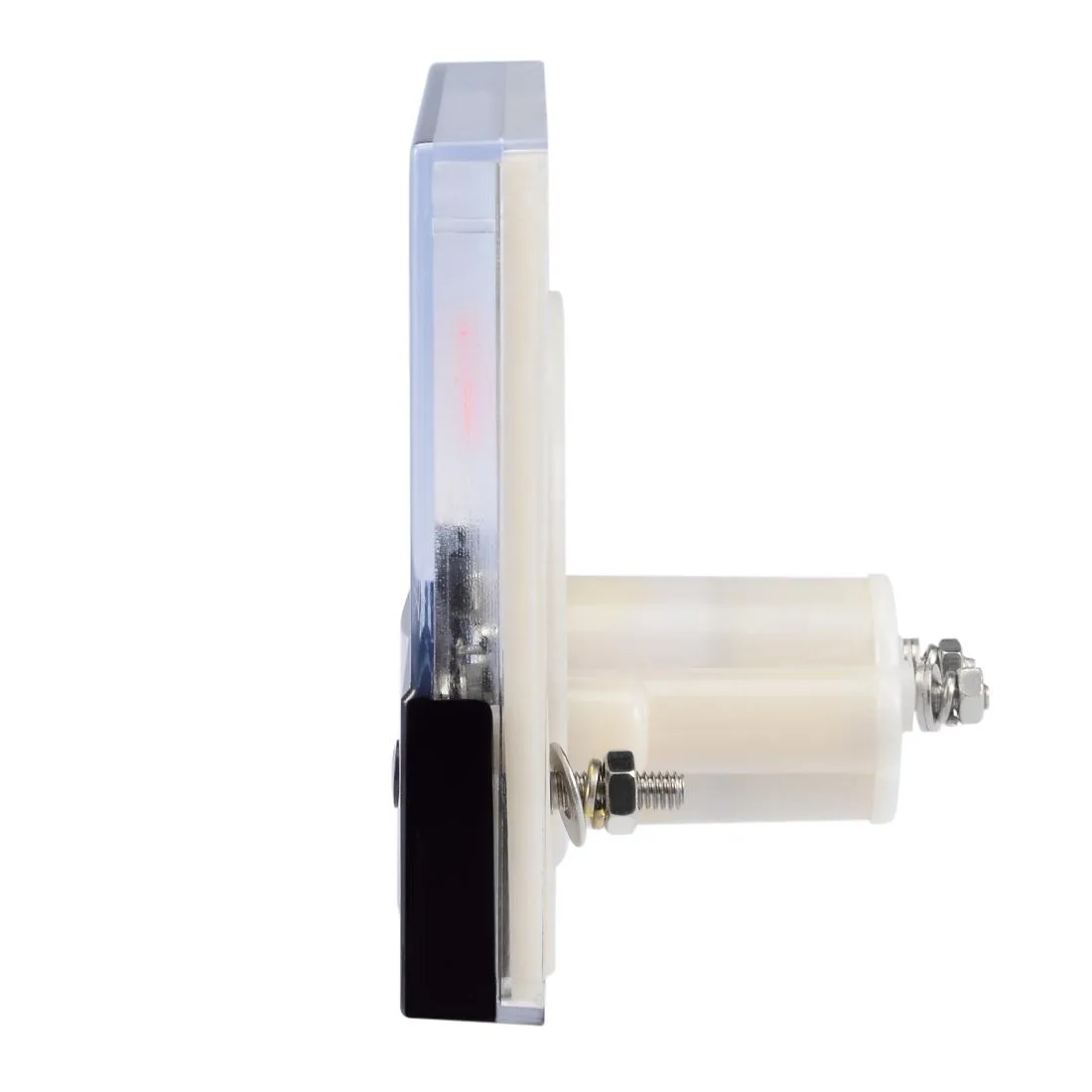

The front face measures 100 mm by 80 mm (3.94 x 3.15 inches) and sits 48.5 mm (1.91 inches) deep, weighing 113 g (3.99 oz). Supplied bolts and screws allow direct panel fixing, and no external shunt resistor is required for voltage operation. Builders needing current measurement, higher voltage ranges or digital logging will need a different instrument.

Highlights

  • Measures DC voltage from 0 to 150 V for panel monitoring
  • 5 % accuracy class keeps readings within tight limits
  • No external shunt resistor needed simplifies installation
  • Front panel fits 100 mm by 80 mm cut-outs
  • Lightweight 113 g unit adds minimal load to panel

Specifications

BrandUnique Bargains
TypeAnalog Multimeters

Questions about this item

Will the 44C2 meter fit in a panel cut-out sized for 100 mm by 80 mm?

Yes, the front panel measures 100 mm by 80 mm (3.94 by 3.15 inches) and the supplied bolts and screws match that footprint.

How can I verify the 44C2 reads correctly after wiring it?

Apply a known DC voltage within the 0 to 150 V range; the needle should indicate within ±1.5 % of the true value at the 5 V graduation marks.

Does the 44C2 package include a shunt resistor or any extra mounting hardware?

The box contains the voltage gauge, bolts and screws for panel fixing; no shunt resistor is required or supplied.
