One hundred small female spade terminals with translucent insulating sleeves in a loose pile

Unique-Bargains

Unique-Bargains 4.8mm Female Wire Cap Connectors 100pcs

SKU CH-HDV3-MJZRX

100 insulated 4.8 mm female spade terminals accept 0.75-2.0 mm² wire and carry 13 A at 300 V

  • TypeWire Cap
  • Secure 4.8mm female spade connection for reliable power links
  • Insulated sleeve protects against shorts in machinery and appliances
  • Rated 300V and 13A for household and industrial equipment
  • 100 terminals cover large wiring jobs in automotive and marine projects
  • Compact 15 x 5.7mm terminal fits tight panels and cable bundles

Terminal type and wire range

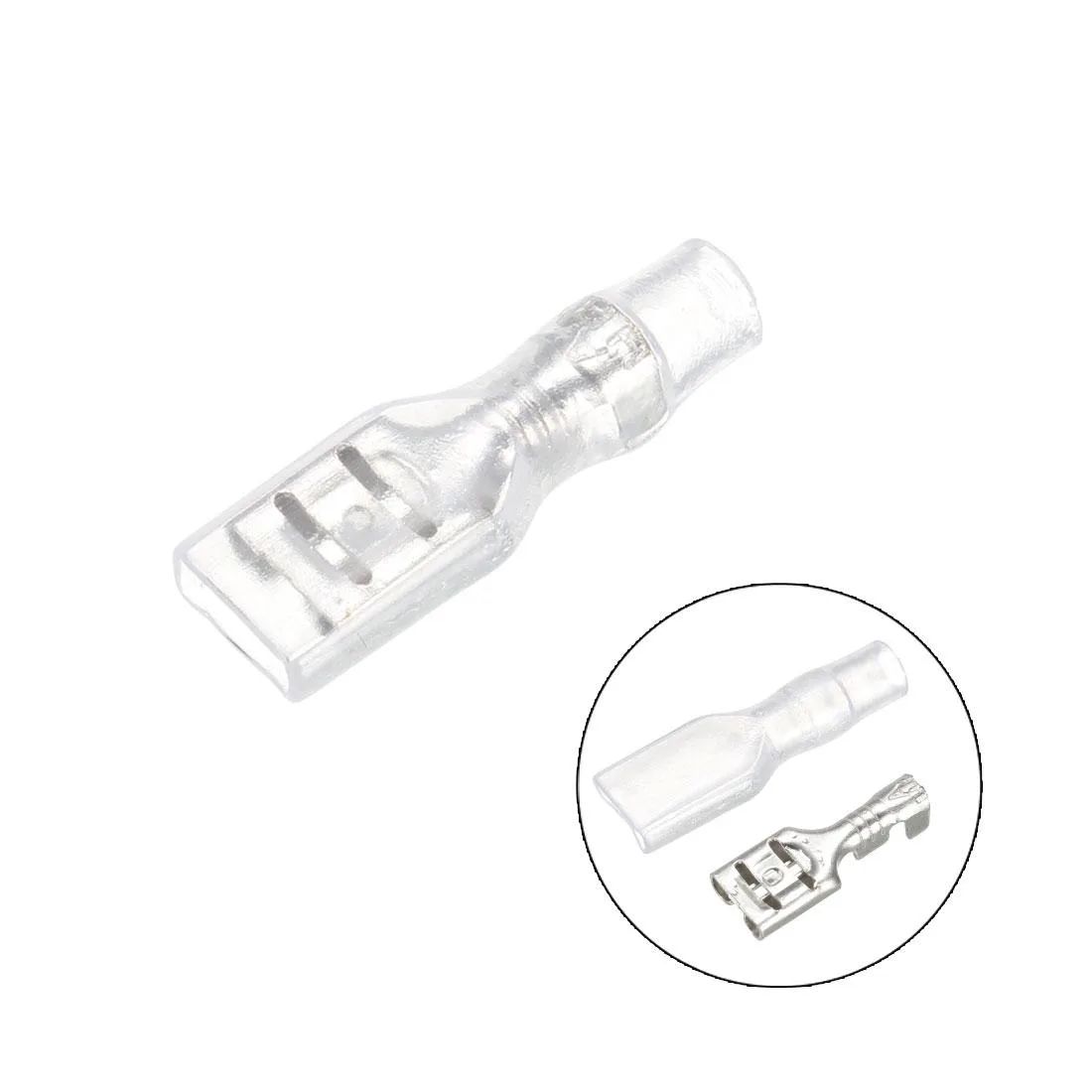

These 4.8 mm female quick-splice terminals accept wire cross-sections from 0.75 to 2.0 mm². The insulated sleeve slides over the crimp joint for basic strain relief. They suit low-voltage wiring in machinery, appliances, automotive and similar electrical equipment. Buyers needing larger-gauge or smaller-gauge terminals cannot use this assortment.

Voltage and current rating

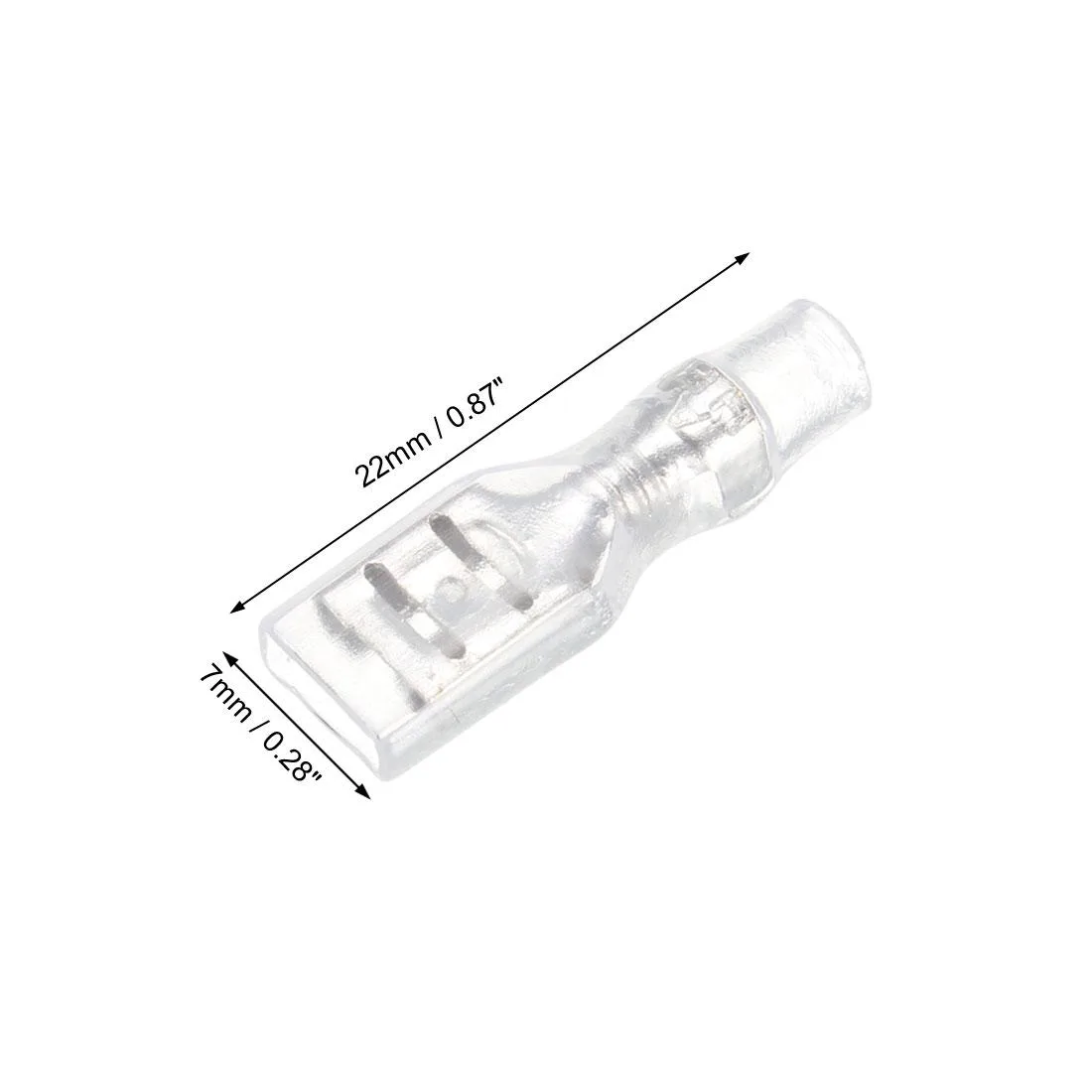

Each connector is rated for up to 300 V and 13 A, matching typical low-voltage power and signal circuits. The metal tab measures 15 × 5.7 × 3.4 mm while the sleeve is 22 × 7 × 4.5 mm. Circuits exceeding either limit require a different terminal specification.

Pack quantity and tolerance

The pack contains 100 pieces with a ±2 % count tolerance. No crimping tool, heat-shrink tubing or additional hardware is included. Installers must supply their own tooling and any supplementary insulation the application demands.

Highlights

  • Secure 4.8mm female spade connection for reliable power links
  • Insulated sleeve protects against shorts in machinery and appliances
  • Rated 300V and 13A for household and industrial equipment
  • 100 terminals cover large wiring jobs in automotive and marine projects
  • Compact 15 x 5.7mm terminal fits tight panels and cable bundles

Specifications

BrandUnique Bargains
TypeWire Cap

Questions about this item

What current can the 4.8mm terminal handle once installed?

The connector is rated for up to 13 A at 300 V, so it will carry that current safely when crimped to wire in the 0.75–2.0 mm² range.

What wire sizes does the 4.8mm quick-splice accept?

It accepts solid or stranded conductors from 0.75 mm² up to 2.0 mm²; the insulation-displacement blade makes contact without stripping.

How much clearance does the 22 mm insulating sleeve need behind the panel?

The sleeve measures 22 mm long, 7 mm wide and 4.5 mm thick, so allow at least that depth plus the 15 mm terminal body for a straight fit.
