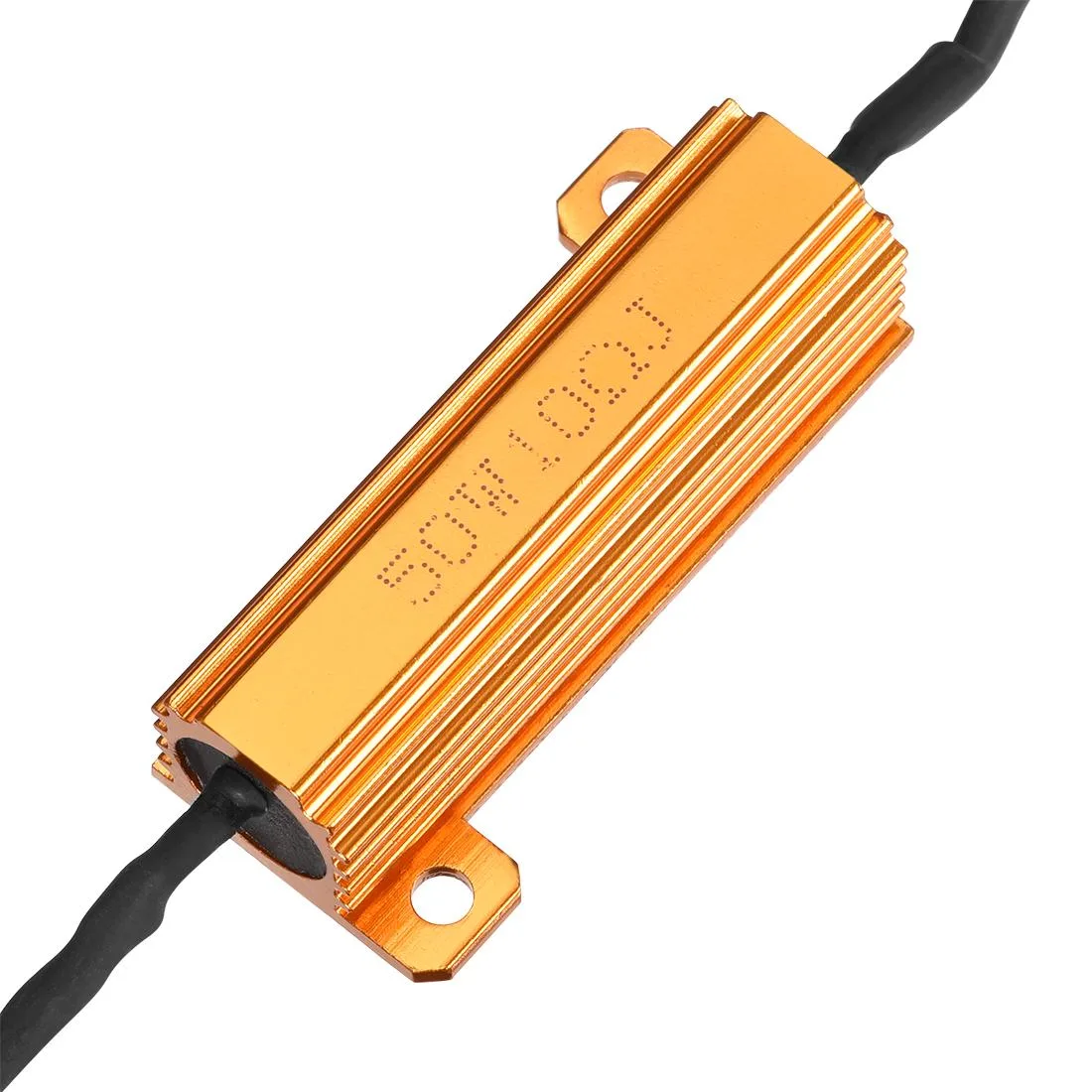

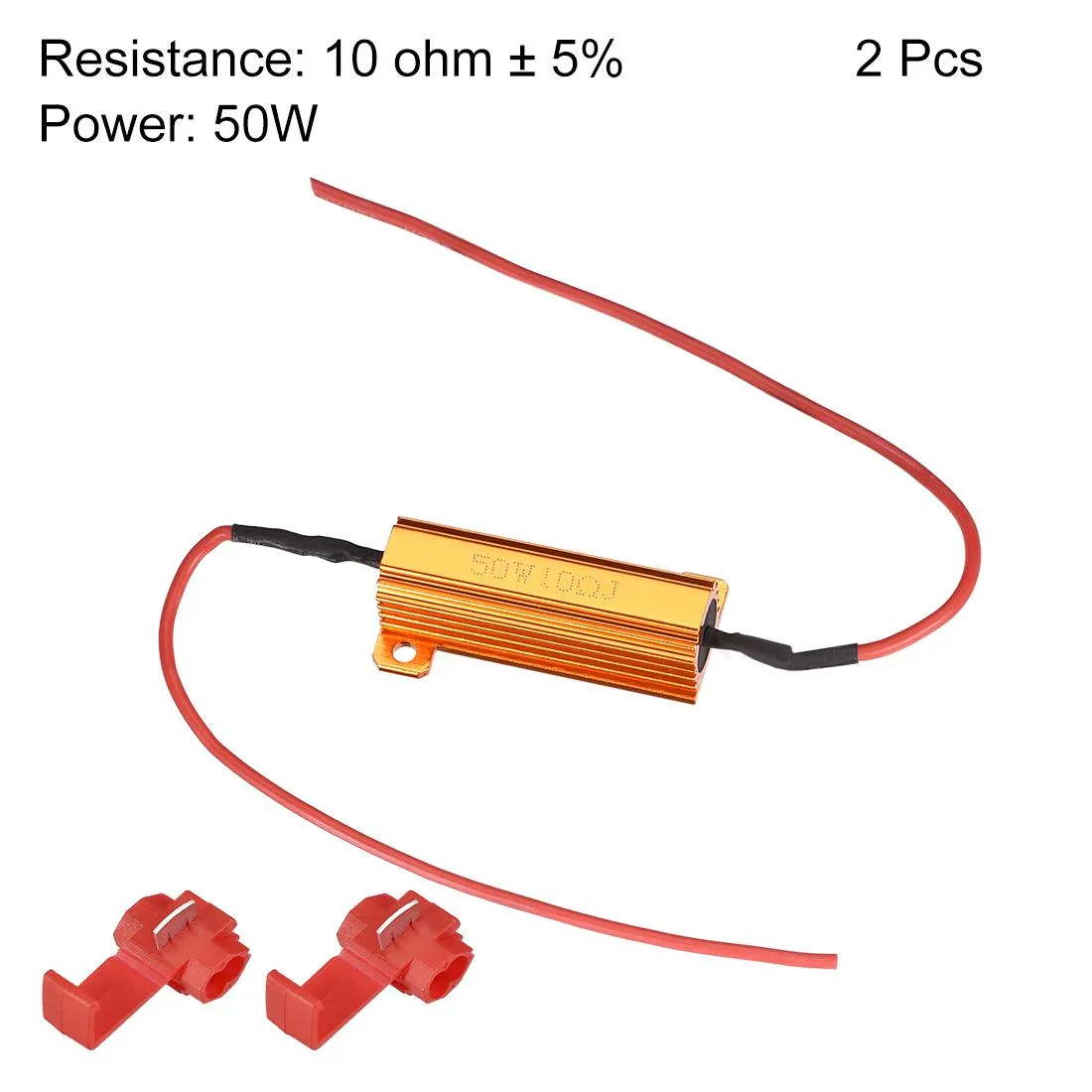

Two rectangular aluminium load resistors with mounting holes and wire leads with quick-connect clips

Unique-Bargains

Unique-Bargains 2pcs 50W 10 ohm Load Resistor passive component

SKU CH-EH7T-BSDMF

Two 50 W 10 ohm load resistors stop LED turn-signal or licence-plate bulbs from hyper-flashing and dashboard warnings

  • FeaturesLoad resistors 10 ohm;Led load resistors for led turn signal
  • Stops LED hyper-flashing and dashboard warnings
  • 50 W 10 Ω rating handles turn-signal loads
  • Quick-clip connectors install without cutting wires
  • Mounting holes spaced 40 mm by 21 mm fit metal brackets
  • Body measures 49 mm long for tight spaces

10 ohm 50W Load Resistors for LED Lights

This pair of 10 ohm 50W load resistors eliminates hyper flashing and dashboard warnings when upgrading turn signal or licence plate bulbs to LED. Each bulb requires one resistor wired in parallel to simulate the original filament load. The kit includes four quick wire clips for a splice connection without cutting the vehicle loom.

Upgrade from filament bulbs without error codes

Replacing incandescent indicators with low current LEDs causes the flasher unit to cycle too quickly or the vehicle computer to report a fault. These resistors restore the expected current draw so the original relay and warning system operate normally. The improvement is worthwhile whenever LED bulbs are fitted to a circuit monitored for bulb outage.

Check mounting surface and wiring before ordering

The resistor body reaches high temperature during operation and must be secured to a metal surface using the 3.5mm mounting holes spaced 40mm by 21mm. Plastic, painted or hose surfaces will melt. Verify 150mm wire leads reach the chosen location and that 49mm by 16mm by 15mm body dimensions fit the available space.

Highlights

  • Stops LED hyper-flashing and dashboard warnings
  • 50 W 10 Ω rating handles turn-signal loads
  • Quick-clip connectors install without cutting wires
  • Mounting holes spaced 40 mm by 21 mm fit metal brackets
  • Body measures 49 mm long for tight spaces

Specifications

BrandUnique Bargains
FeaturesLoad resistors 10 ohm;Led load resistors for led turn signal lights;Resistors for led lights;Load resistor fix led bulb fast hyper flash;decode

Questions about this item

What mounting-hole spacing and diameter does the 50 W 10 ohm resistor use?

The resistor has a 3.5 mm mounting-hole diameter with holes spaced 40 mm by 21 mm centre-to-centre.

How do I connect the resistor without cutting the vehicle wiring?

Use the four supplied quick-wire clips to splice the resistor leads into the existing turn-signal or licence-plate light circuit.

Will the resistor body get hot enough to damage plastic trim?

Yes, the load resistor becomes very hot during operation and must be secured to a metal surface; plastic, hose or painted areas can melt.
