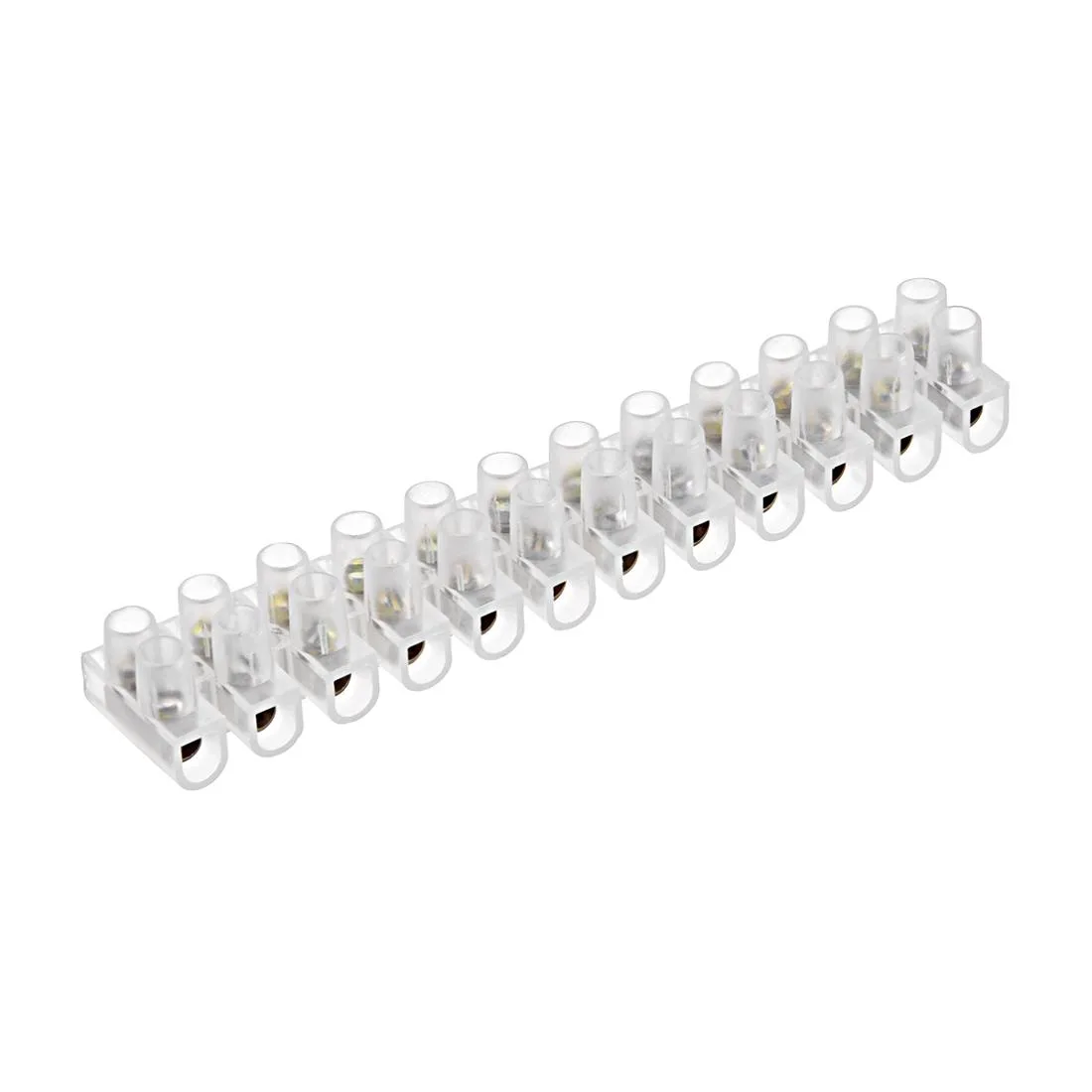

White 12-position dual-row terminal block 91x15.5x12.5mm PE housing brass contacts

Unique-Bargains

Unique-Bargains 12 Position Dual Row Type U Wire Cap Connector 3A 380V 91x15.5x12.5mm White

SKU CH-V79E-5YN05

A 12-position dual-row terminal block rated 380 V and 3 A with 3 mm cable entries and 91 x 15.5 x 12.5 mm dimensions

  • TypeCable Connectors
  • 12-position dual-row strip handles multiple circuits in one block
  • 3 A at 380 V rating suits low-voltage power distribution
  • Brass contacts with zinc-plated screws give strong conductivity
  • PE housing resists heat, impact and chemical exposure
  • Compact 91 × 15.5 × 12.5 mm body fits tight enclosures

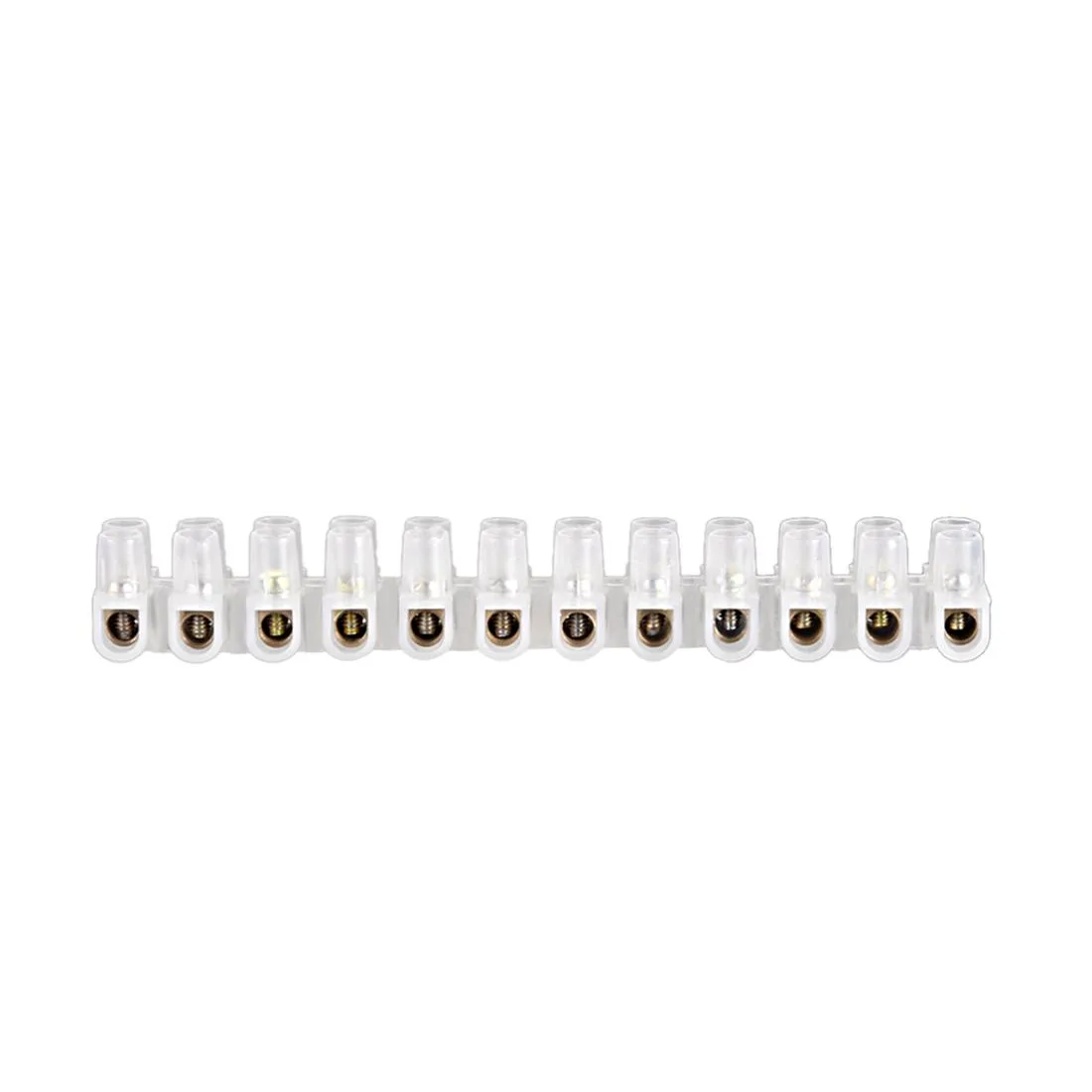

12-Position Dual-Row Wire Cap Connector

This terminal block provides twelve screw-clamp positions arranged in two rows for joining solid or stranded conductors up to three millimetres in diameter. It is rated for three amperes at three hundred eighty volts and suits lighting, appliance and distribution-cabinet wiring tasks. The white polyethylene housing measures ninety-one by fifteen point five by twelve point five millimetres.

Screw-terminal strip for panel or DIN-rail mounting

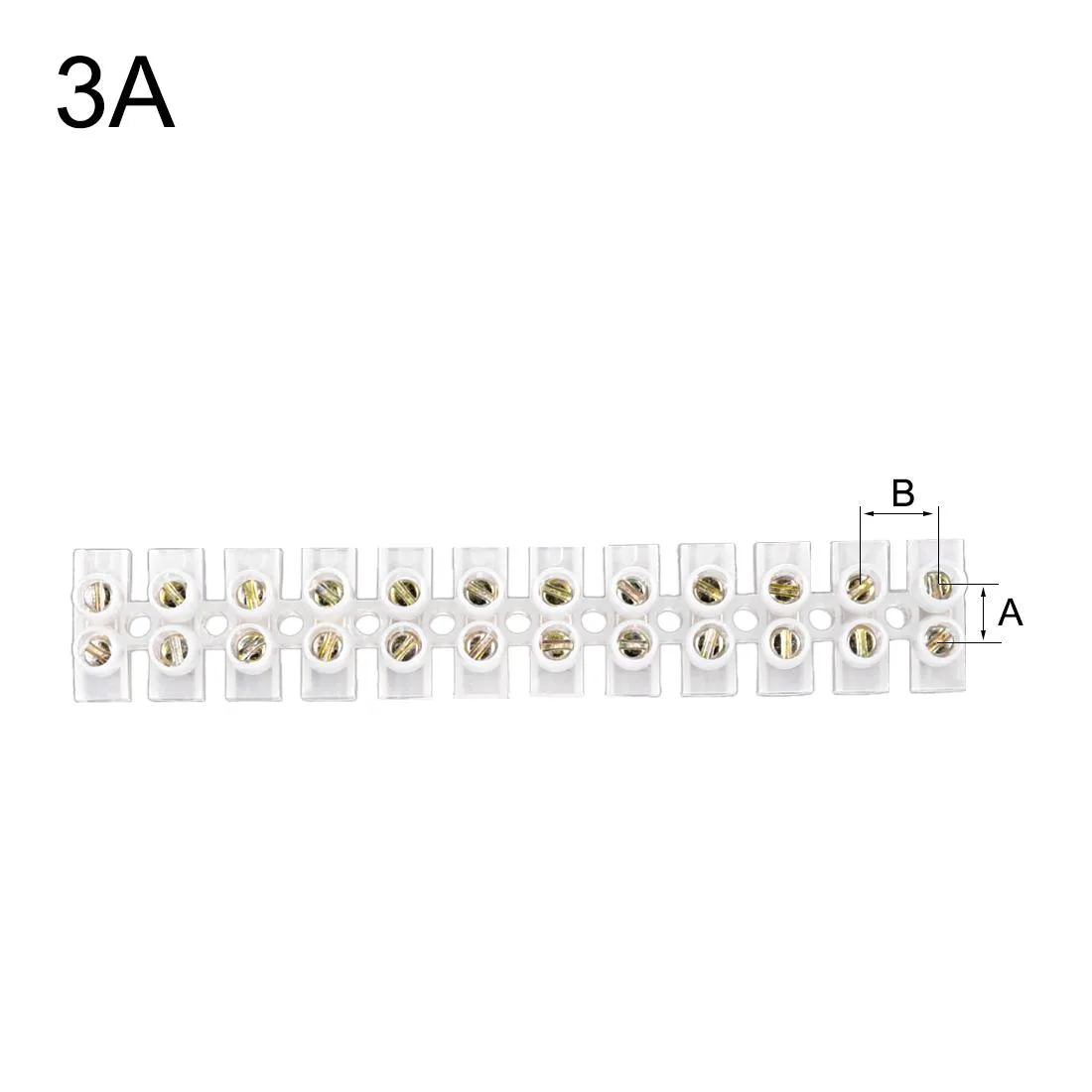

The barrier-strip design accepts a slot-head screwdriver and spaces terminals at six point five millimetres pitch across the row and nine millimetres between rows. Brass contacts with zinc-plated iron screws deliver high conductivity and corrosion resistance while the transparent PE shell insulates and protects the connections. No specialised tooling beyond a standard screwdriver is required.

Replaces individual wire nuts or single-row blocks

Builders consolidating multiple circuits into one compact strip will reduce clutter and simplify troubleshooting in distribution boxes. The jump is worthwhile when a project demands more than six connections in a confined panel and a single unified block eases inspection and maintenance.

Highlights

  • 12-position dual-row strip handles multiple circuits in one block
  • 3 A at 380 V rating suits low-voltage power distribution
  • Brass contacts with zinc-plated screws give strong conductivity
  • PE housing resists heat, impact and chemical exposure
  • Compact 91 × 15.5 × 12.5 mm body fits tight enclosures

Specifications

BrandUnique Bargains
TypeCable Connectors

Questions about this item

How much current can each of the 12 positions carry continuously?

Each position is rated for 3 A at 380 V, so the connector handles that current across all 12 poles without derating.

Does the PE insulating body stay cool when the strip runs at full load all day?

The PE housing and brass contacts are designed for high-temperature resistance, keeping the block stable during continuous 3 A operation.

What wire size fits the 3 mm cable entries on this terminal block?

The 3 mm / 0.12-inch entry diameter accepts solid or stranded conductors up to that gauge, secured by the slotted zinc-plated screws.
