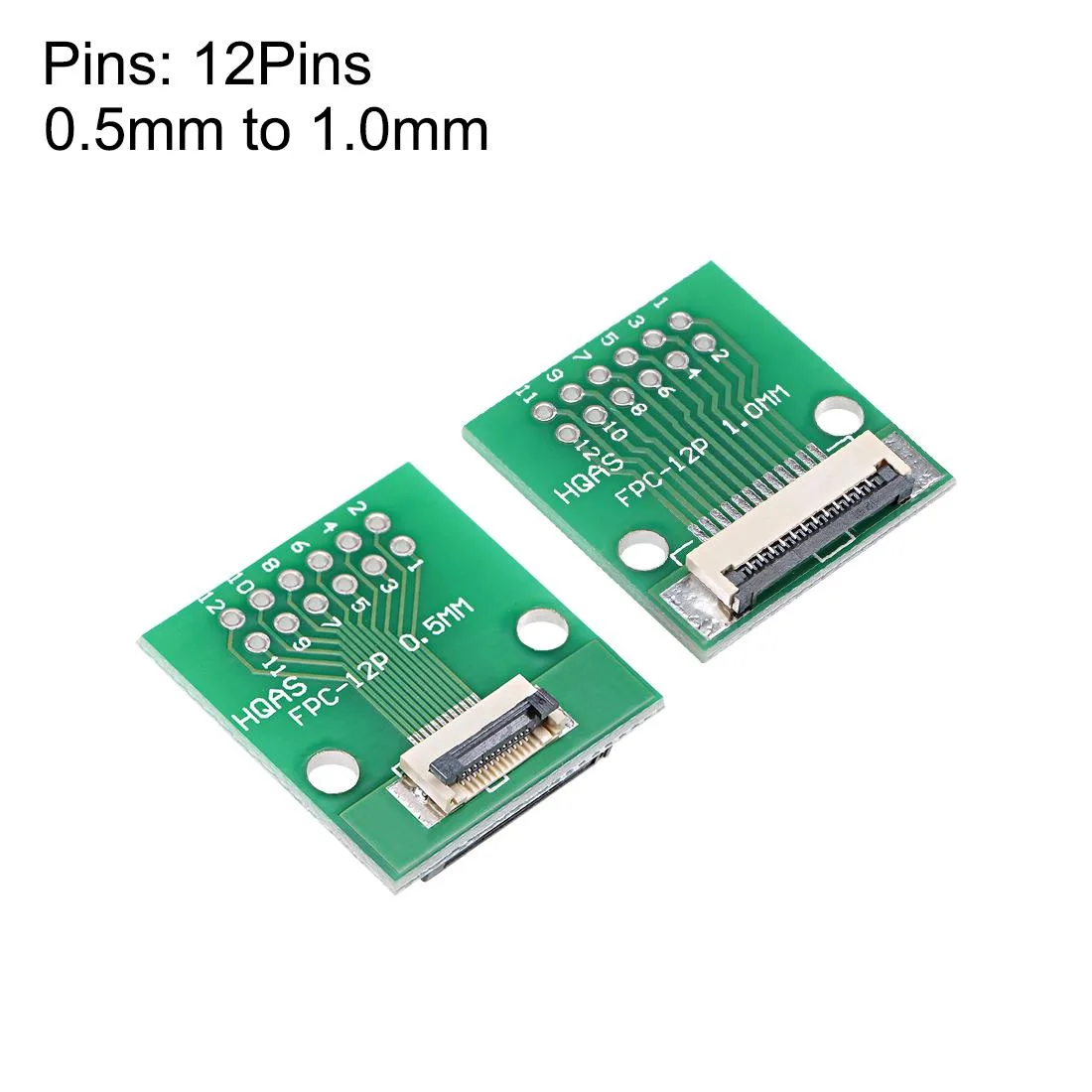

Small green rectangular PCB with two rows of gold pins on opposite edges, one row spaced at 0.5mm pitch and the other at 1.0mm pitch

Unique-Bargains

Unique-Bargains 12 Pin 0.5mm to 1.0mm FFC FPC PCB Adapter

SKU CH-Q7G0-QGSH5

A 12-pin flexible-flat-cable adapter that converts 0.5 mm pitch to 1.0 mm through-hole DIP spacing on a 26 x 24 x 6 mm PCB

  • TypeCable Connectors
  • Converts 0.5mm pitch FFC to 1.0mm DIP for prototyping
  • 12-pin adapter matches both cable and board layouts
  • Double-sided PCB fits 0.5mm and 1.0mm connectors
  • Compact 26 x 24 x 6 mm board saves bench space
  • Suits cameras, camcorders, laptops and LCD displays

12 Pin FFC to DIP PCB Adapter

This PCB converter bridges a 0.5 mm pitch 12 pin FFC or FPC cable to a 1.0 mm pitch 12 pin through hole DIP footprint. It suits engineers and hobbyists who need to connect fine pitch flexible cables to standard prototype boards or custom PCBs without designing a dedicated breakout. The board measures 26 x 24 x 6 mm overall.

Not for non 12 pin cables

Builders using cables with a different pin count or a pitch other than 0.5 mm cannot use this adapter. It also does not suit surface mount only designs because the output side is through hole DIP. Buyers who need a right angle connector or a different conversion ratio should look elsewhere.

0.5 mm to 1.0 mm pitch conversion

The single specification that decides fit is the pitch translation from 0.5 mm on the FFC side to 1.0 mm on the DIP side. Both sides carry exactly 12 pins in a straight line. Verify your cable pitch and pin count match these figures before ordering.

Highlights

  • Converts 0.5mm pitch FFC to 1.0mm DIP for prototyping
  • 12-pin adapter matches both cable and board layouts
  • Double-sided PCB fits 0.5mm and 1.0mm connectors
  • Compact 26 x 24 x 6 mm board saves bench space
  • Suits cameras, camcorders, laptops and LCD displays

Specifications

BrandUnique Bargains
TypeCable Connectors

Questions about this item

How can I verify the adapter is working correctly after soldering it to my board?

Check that all 12 pins on the 0.5 mm side align with the FFC cable and the 12 pins on the 1.0 mm side match the DIP footprint, then test continuity across each corresponding pin pair.

What comes in the package and do I need to buy any cables or headers separately?

The package includes one 12 Pin FFC to DIP adapter PCB board; FFC cables and pin headers are not included and must be purchased separately if required.

Which pitch version should I choose for a 0.5 mm FFC cable connecting to a 1.0 mm DIP layout?

This adapter converts a 12 pin 0.5 mm FFC pitch to a 12 pin 1.0 mm DIP pitch, matching the described conversion exactly.
