Silver aluminium load cell, rectangular block with wires, 42 by 38 by 3 millimetres

Unique-Bargains

Unique-Bargains 100kg 42mm x 38mm x 3mm Load Cell Sensor

SKU CH-2SP9-K6GEQ

A 100 kg aluminium load cell measuring 42 mm by 38 mm by 3 mm with 0.05 % repeatability and 10 Ω input impedance

  • 100 kg capacity suits bench and material scales
  • ±0.05 % full-scale repeatability for consistent results
  • Zero balance within ±1 % F.S. simplifies calibration
  • Temperature effect on output only 0.02 % F.S. per 10 °C
  • Compact 42 × 38 × 3 mm aluminium body fits tight spaces

100 kg aluminium load cell for precision weighing

This 100 kg capacity load cell is built from silver tone aluminium and suited to electronic scales, balance equipment, material scales and jewellery scales. It offers a simple structure that makes installation straightforward for hobbyists, engineers and small scale manufacturers. The sensor provides high accuracy with a repeatability of .05% F.S. and zero balance within +/-1% F.S. Temperature effect on zero is rated at .05% F.S. per 10C and on output at .02% F.S. per 10C. Creep over 30 minutes is specified at .05% F.S.

Wired sensor with 10 ohm input impedance

The unit measures 42 mm by 38 mm by 3 mm and connects via a wired interface with an input impedance of 10 ohms. Its compact aluminium body resists corrosion and fits into tight mounting spaces on scale platforms or test rigs. The wired leads allow direct connection to indicator boards or microcontroller ADC inputs without extra connectors. Stable zero balance and low temperature drift help maintain consistent readings during extended weighing sessions. Creep performance of .05% F.S. over half an hour supports reliable batch measurements.

Verify mounting space and signal conditioning needs

Before ordering, confirm that the 42 mm by 38 mm footprint and 3 mm thickness suit your scale frame or test fixture. Ensure your readout electronics can excite and measure a 10 ohm bridge and that the .05% F.S. repeatability meets your application tolerance. Check that the operating temperature range of your environment matches the sensor's thermal specifications of .05% F.S. per 10C on zero and .02% F.S. per 10C on output. Buyers who need a higher capacity cell or a different form factor should look for an alternative model.

Highlights

  • 100 kg capacity suits bench and material scales
  • ±0.05 % full-scale repeatability for consistent results
  • Zero balance within ±1 % F.S. simplifies calibration
  • Temperature effect on output only 0.02 % F.S. per 10 °C
  • Compact 42 × 38 × 3 mm aluminium body fits tight spaces

Specifications

BrandUnique Bargains

Questions about this item

How does the 10 ohm input impedance affect signal conditioning?

The 10 ohm input impedance determines the excitation current and bridge sensitivity; match your amplifier or indicator to this value for accurate readings.

Will the 42mm by 38mm by 3mm body fit my scale frame?

The sensor body measures 42mm long, 38mm wide and 3mm thick; verify your mounting holes and clearance against these dimensions before ordering.

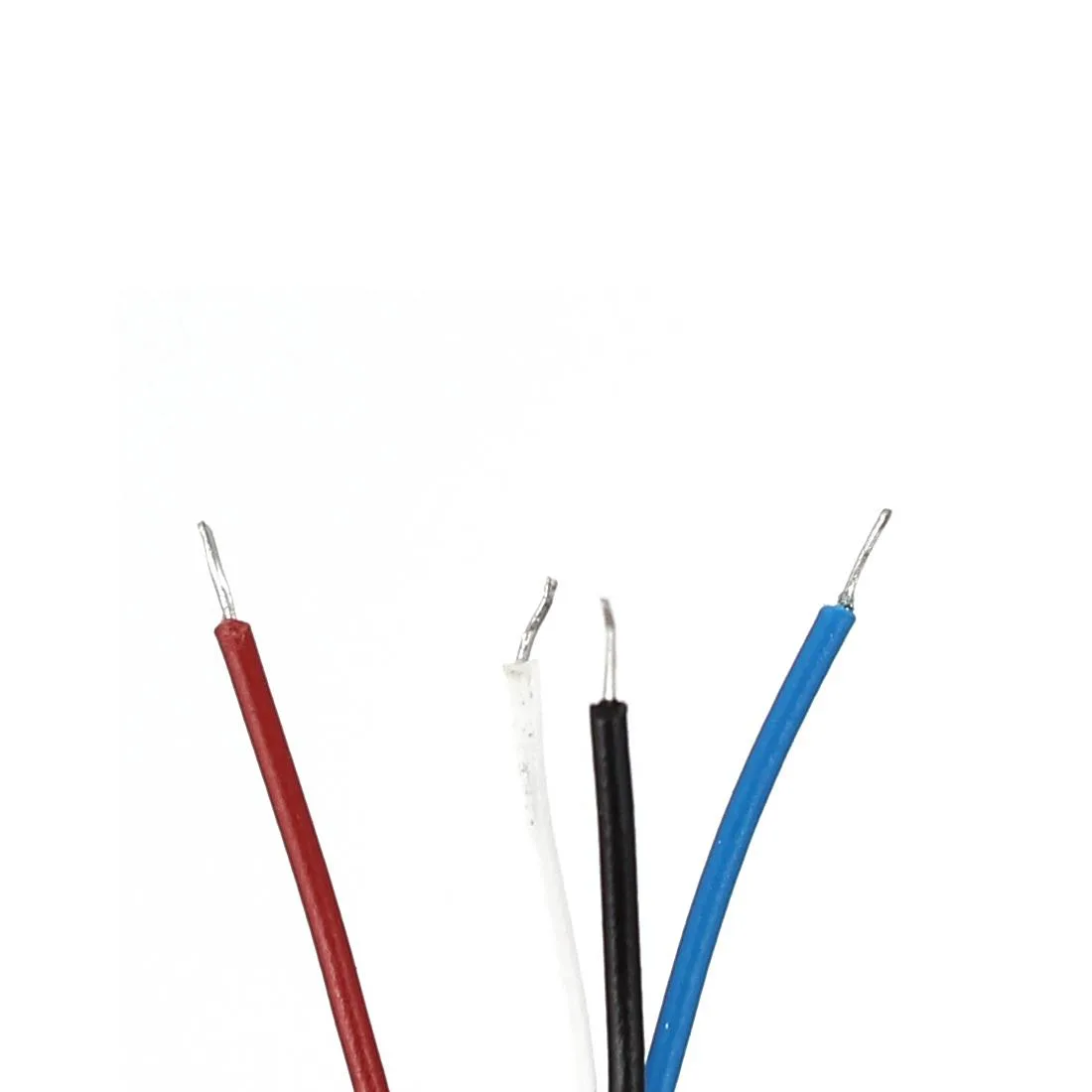

What is the correct wiring sequence for the four load-cell leads?

Connect the coloured wires to excitation positive, excitation negative, signal positive and signal negative exactly as marked; reversing excitation or signal pairs is the most common error.
