Silver 1U rackmount switch with 32 SFP28 ports and 1.3 inch touchscreen

Ubiquiti Networks

Ubiquiti Pro XG Aggregation 32-port 25G SFP28 Layer 3 network switch

SKU CH-QP0C-0BER8

32-port 25G SFP28 Layer 3 managed switch with 1.6 Tbps switching capacity and redundant DC power input for data-centre aggregation

  • FormatRackmount
  • Network Management TypeManaged
  • Primary Ports32 x SFP
  • Management FeatureSwitching Capacity: 1.6 Tbps Total Non-Blocking Throughput:
  • Layer3
  • Layer 2 FeaturesLACP Port Aggregation STP & RSTP Advanced IGMP Configuration

Options Pro XG Aggregation

  • 32 ports of 25G SFP28 deliver 800 Gbps non-blocking throughput for data-centre aggregation
  • 6 Tbps switching capacity handles 1.2 Bpps forwarding rate under full load
  • Layer 3 routing with 256000 IPv4 routes and 128000 ARP entries manages complex enterprise traffic
  • Redundant AC and USP RPS DC inputs keep the switch running during power failures

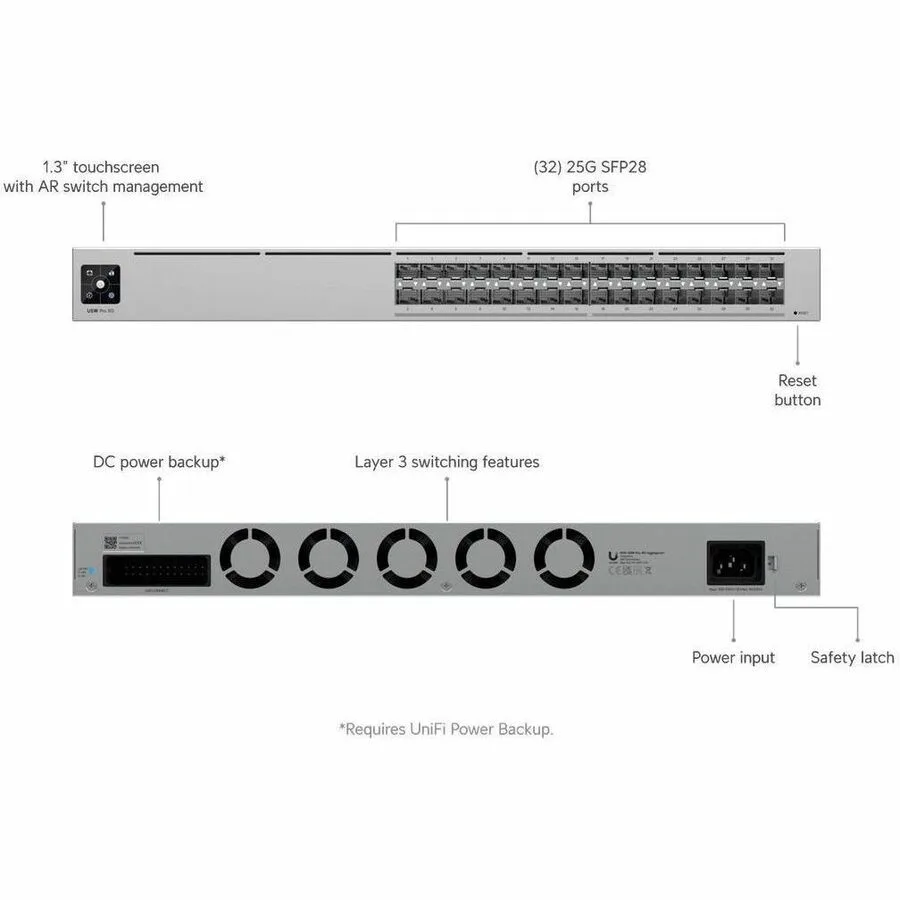

  • 3" touchscreen LCM gives instant status and configuration access at the rack

Aggregation Switch For Core Networks

The Ubiquiti Pro XG Aggregation is a managed Layer 3 switch built for high-capacity backbone connections in enterprise environments. It provides thirty-two 25G SFP28 ports that deliver a total non-blocking throughput of 800 Gbps and a switching capacity of 1.6 Tbps. The unit is designed for 19-inch four-post racks with supported post depths ranging from 600 to 1,066 mm.

SFP28 Port Constraints And Throughput

The thirty-two SFP28 ports operate at 25 Gbps each and require compatible transceivers and cabling that are not included with the switch. Total non-blocking throughput reaches 800 Gbps with a forwarding rate of 1.2 Bpps, while the MAC address table supports 32,000 entries and the Layer 3 tables handle up to 128,000 ARP entries and 256,000 IPv4 routes. Maximum power consumption is rated at 200 W.

Steel Chassis And Redundant Power

The enclosure and mount are constructed from SGCC steel and the unit weighs 7.1 kg without the mounting bracket. An internal 200 W AC power supply accepts 100–240 V AC input, and a USP RPS DC input provides redundant power backup for resiliency. A 1.3-inch touchscreen LCM display on the front panel allows local status monitoring and basic configuration.

Highlights

  • 32 ports of 25G SFP28 deliver 800 Gbps non-blocking throughput for data-centre aggregation
  • 6 Tbps switching capacity handles 1.2 Bpps forwarding rate under full load
  • Layer 3 routing with 256000 IPv4 routes and 128000 ARP entries manages complex enterprise traffic
  • Redundant AC and USP RPS DC inputs keep the switch running during power failures
  • 3" touchscreen LCM gives instant status and configuration access at the rack

Specifications

BrandUbiquiti
SeriesSwitching
ModelPro XG Aggregation
Part NumberUSW-Pro-XG-Aggregation
FormatRackmount
Network Management TypeManaged
Primary Ports32 x SFP
Management FeatureSwitching Capacity: 1.6 Tbps
Total Non-Blocking Throughput: 800 Gbps
Forwarding Rate: 1.2 Bpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
L3 Table Size
ARP Entries: 128,000
IPv4 Routes: 256,000
Packet Buffer Size: 8 MB
Access Lists
IPv4: 256
MAC: 256
Layer3
Layer 2 FeaturesLACP Port Aggregation
STP & RSTP
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Layer 3 FeaturesDHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
PowerPower Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 200W
Supported Voltage Range
100—240V AC
Max Power Consumption200W

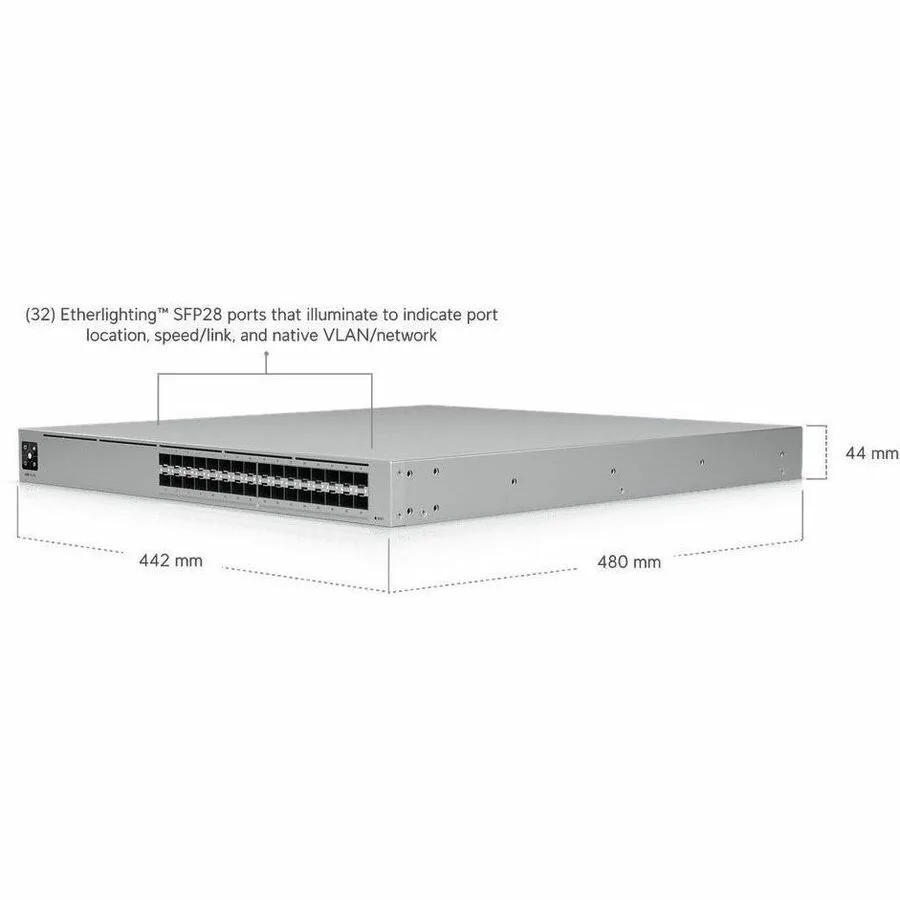

Dimensions442.4 x 43.7 x 480 mm
(17.4 x 1.7 x 18.9")
WeightWithout mounting bracket: 7.1 kg (15.7 lbs)
With mounting bracket:7.2 kg (15.9 lbs)
CertificationCE, FCC, IC
FeaturesEnclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 482.6 mm (19") four-post racks. Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display: 1.3" touchscreen
ESD Protection: Air: ± 12kV, contact: ± 8kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Etherlighting™: SFP28
LEDs: RPS
Shipping weight10.66 kg
Package size681 × 516 × 147 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose a 32-port 25G SFP28 switch or a different port count for my aggregation layer?

This model provides 32 ports of 25G SFP28 connectivity in a 1U rackmount form factor, delivering 800 Gbps non-blocking throughput and 1.2 Bpps forwarding for high-density aggregation.

What does the 1.6 Tbps switching capacity mean for actual throughput in my rack?

The 1.6 Tbps switching capacity supports 800 Gbps of total non-blocking throughput across all 32 ports, with a 1.2 Bpps forwarding rate for wire-speed 25G traffic.

What does the SFP28 interface cap at in practice for uplink speeds?

Each SFP28 port operates at 25 Gbps, giving 32 ports of 25G connectivity for an aggregate 800 Gbps non-blocking backbone.
