Ubiquiti Networks Wave Pico 60 GHz PtMP access point
Compact 60 GHz PtMP station delivering 2 Gbps throughput with 1.3 km range and 5 GHz backup radio
- Frequency BandRF Operating frequency* 57–71 GHz *Depends on regulatory reg
- LEDsPower Flashing white: bootup in progress White: not connecte
- ButtonsFactory reset
- LAN Ports(1) GbE RJ45 port
- Power SupplyMax. power consumption 10W Power method Passive PoE 4-pairs
- Temperature-40 to 60° C (-40 to 140° F)
- PtMP station reaches 1.3 km link range using 60 GHz Wave Technology
- Dual-core ARM Cortex-A53 processor with 512 MB DDR3L memory handles 2 Gbps total throughput
- 5 GHz weatherproof backup radio provides 800 Mbps redundancy when 60 GHz signal drops
- Single GbE RJ45 port supports passive PoE 44–54 V DC for simple cabling
- Compact Ø152.1 × 55.8 mm housing weighs 347 g and operates from −40 to 60 °C

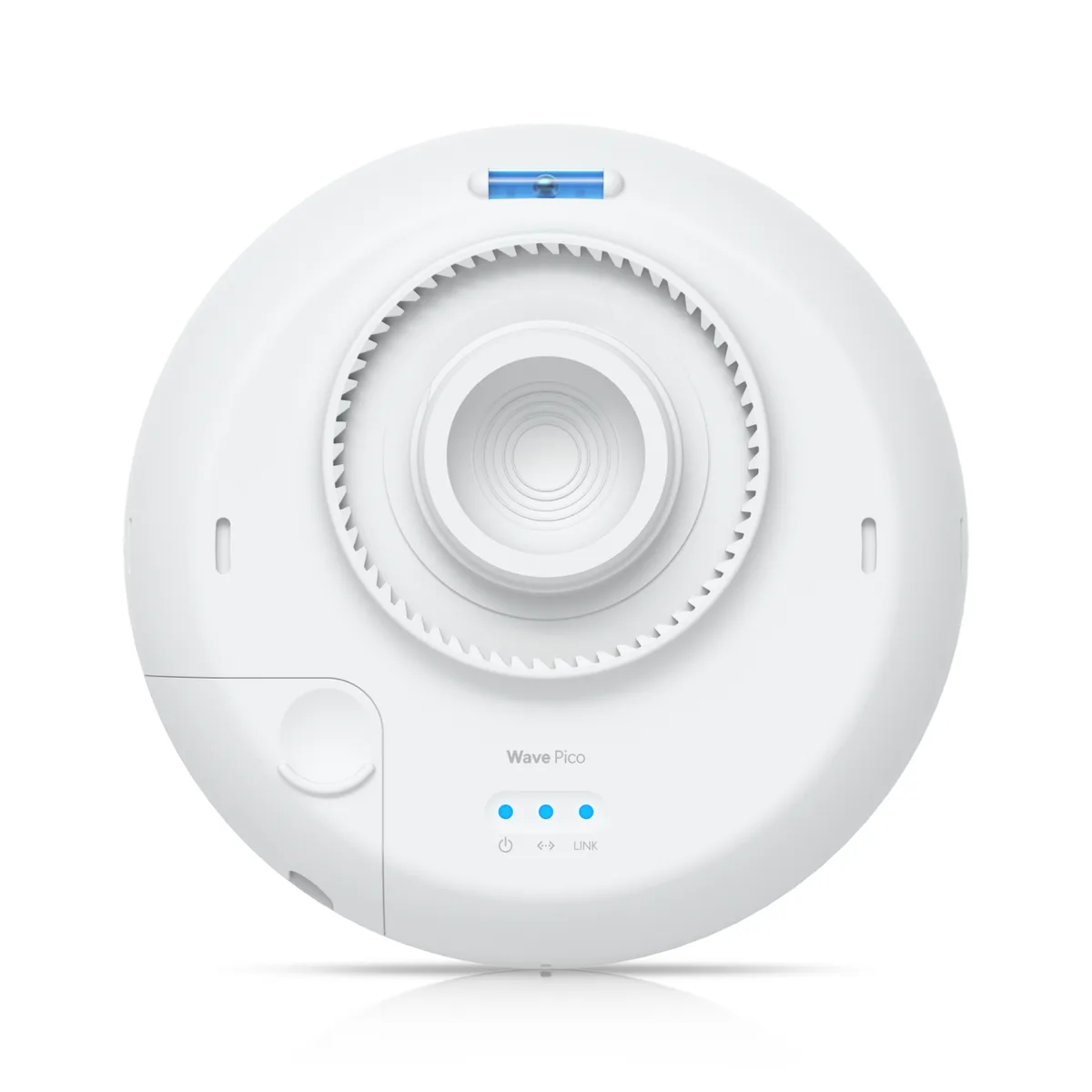

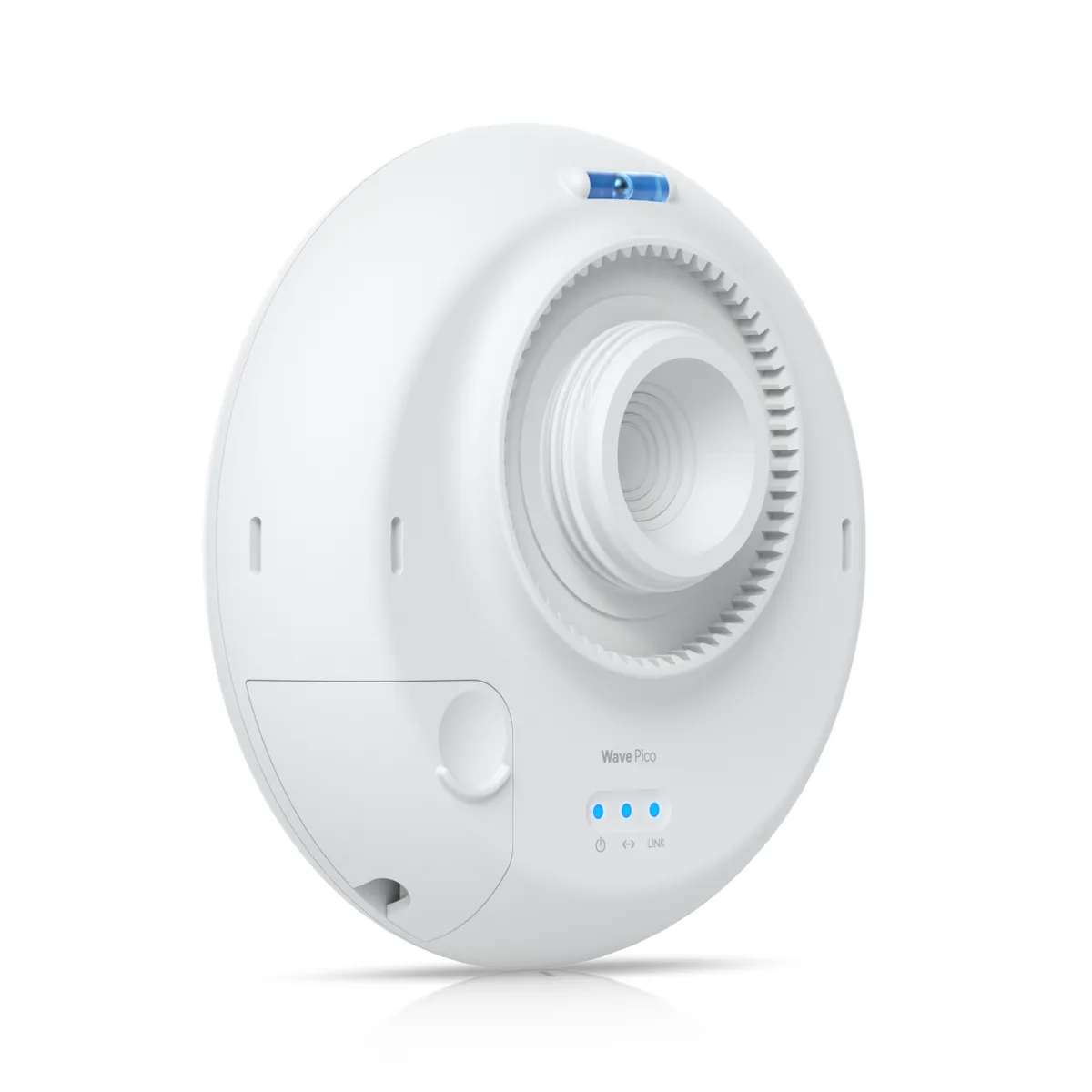

Lightweight 60 GHz PtMP Station
The Wave Pico is a compact 60 GHz point-to-multipoint station designed for wireless ISPs and network builders who need high-capacity links without the bulk of larger dishes. It delivers up to 2 Gbps aggregate throughput with 1 Gbps full-duplex performance and includes a 5 GHz weatherproof backup radio rated at 800 Mbps for redundancy when rain fade affects the primary band.
57–71 GHz Band and Channel Constraints
The radio operates in the 57–71 GHz range, though available spectrum depends on local regulatory rules. Channel widths of 2160, 1080 and 540 MHz are supported on firmware 3.3.0 or later, with specific centre frequencies such as 58320, 59400 and 60480 MHz. The 60 GHz signal requires clear line of sight and is limited to 1.3 km to a Wave AP or 0.9 km to a Wave AP Micro, making it unsuitable for non-line-of-sight deployments or longer-haul links.
Pole-Mount Install with Passive PoE
The unit weighs 347 g without the supplied mount and 409 g with it, measuring Ø152.1 x 55.8 mm for easy pole attachment. A single GbE RJ45 port accepts 4-pair or 2-pair passive PoE at 44–54 V DC, and a 48 V 0.5 A gigabit PoE adapter is included. Installers must ensure the PoE injector matches the required pinout (1,2+; 3,6- and 4,5+; 7,8-) because incorrect polarity or voltage will prevent the device from powering on.
Highlights
- PtMP station reaches 1.3 km link range using 60 GHz Wave Technology
- Dual-core ARM Cortex-A53 processor with 512 MB DDR3L memory handles 2 Gbps total throughput
- 5 GHz weatherproof backup radio provides 800 Mbps redundancy when 60 GHz signal drops
- Single GbE RJ45 port supports passive PoE 44–54 V DC for simple cabling
- Compact Ø152.1 × 55.8 mm housing weighs 347 g and operates from −40 to 60 °C
Specifications
| Brand | Ubiquiti Network |
|---|---|
| Series | Wave 60 GHz |
| Model | Wave-Pico |
| Frequency Band | RF Operating frequency* 57–71 GHz *Depends on regulatory region. Channel bandwidth 2160, 1080, 540* MHz *FW version 3.3.0 and later. Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. Modulation 16QAM, QPSK Antenna gain 27.7 dBi Polarization Vertically linear Beamwidth Azimuth: 3 dB 6° Elevation: 3 dB 6° Back-Up RF WiFi standard 802.11ax (WiFi 6) Operating frequency* US/CA Worldwide U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5180 - 5875 MHz *De |
| LEDs | Power Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress Ethernet Flashing blue: Ethernet traffic detected Links White: 5 GHz link Blue: 60 GHz link |
| Buttons | Factory reset |
| LAN Ports | (1) GbE RJ45 port |
| Power Supply | Max. power consumption 10W Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -) Passive PoE 2-pairs (4, 5+; 7, 8 -), for 44–54V DC only Power supply 48V DC, 0.5A gigabit PoE adapter (Included) Can be powered by a UISP Router or UISP Switch Supported voltage range 44–54V DC 22–27V DC |
| Temperature | -40 to 60° C (-40 to 140° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | Ø152.1 x 55.8 mm (Ø6 x 2.2") |
| Weight | Without mount: 347 g (12.2 oz) With mount: 409 g (14.4 oz) |
| Features | Hardware Processor Dual-core ARM® Cortex®-A53 at 1 GHz Memory DDR3L 512 MB Software Operating mode PtMP station, PtP Ubiquiti specific features Wave AI, discovery protocol Services UISP, ping watchdog, NTP client, SNMP Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later. Network Bridge/Router* mode *Router is available in PtMP station mode only. Application requirements UISP web: Version 2.4.61 and later UISP mobile iOS™: Version 2.32.0 and later UISP mobile Android™: Version 2.31.9 and later System Total th |
| Shipping weight | 1.36 kg |
| Package size | 254 × 203 × 178 mm |
Questions about this item
How do I pick between the Wave Pico and the Wave AP Micro for my PtMP deployment?
Choose the Wave Pico for a 1.3 km maximum link range and 2 Gbps total throughput, or the Wave AP Micro for a 0.9 km range if the shorter reach fits your cell plan.
What does the 2 Gbps throughput figure mean once the unit is installed?
It is the maximum aggregate throughput across the 60 GHz link, delivered as 1 Gbps full-duplex over the single GbE RJ45 port.
How does the 57–71 GHz band and 2160 MHz channel width cap real-world performance?
The 60 GHz band supports up to 2160 MHz channels for the 2 Gbps peak, while the 5 GHz backup radio provides an 800 Mbps fallback when rain fade affects the primary link.
